Rope End Swing - Children's Playground Swing

Verified by manufacturer 2 months ago

Redlynch Leisure Installations Ltd Third party certifications:
  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Rospa Safety Charity

    Rospa Safety Charity

    Certificate type

  • TUV - Safety and Quality Report

    Certificate type

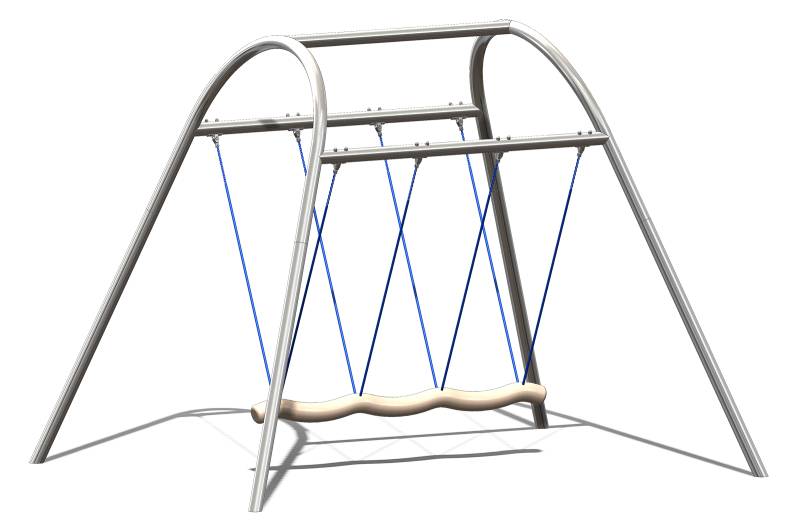

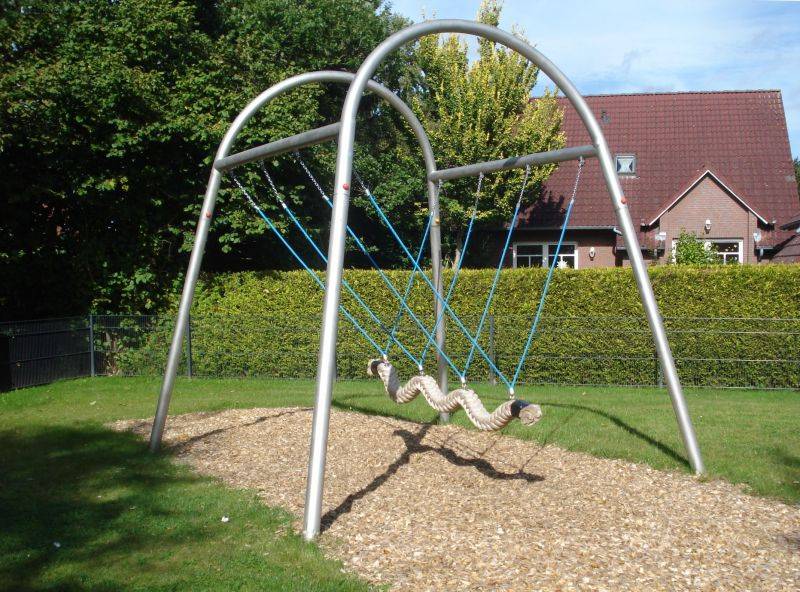

Children's playground rope swing for 6–12 year old users.

Jump to:
+44 (0)1249 444537 Website

Application

Children's public playgrounds.

Age range: 6–12.

Description

Children's playground rope swing.


Features and benefits:

  • The swing has a height of 2.5 m.
  • Features curved posts that are constructed from stainless steel.
  • The swing beam is also made of stainless steel.
  • Four sets of swing chains, all of which are made from stainless steel. Additionally, there are eight swing pivot points equipped with an arresting chain.
  • User age range: 6–12.
  • Fall height group: 1.45 m.
  • Made in Finland.

General information

Color

Silver

Other

Finish

Shot blasted

Material

Stainless steel

Other

Guidance for specification option:

Rope.

Shape

Other

Length

4470 mm

Width

3530 mm

Height

3350 mm

Warranty description

Lifetime

Uniclass

Pr_40_30_61_67 Play swingsPrimary

CAWS

Q52/440 Swinging equipment

Specification data - Play swings

Standards

To BS EN 1176-1 and BS EN 1176-2.

Age range

6–12.

Equipment type

2.

Height

3.35 m.

Frame

-

Style

Arch.

Bays

One.

Materials

Stainless steel.

Finish as delivered

-

Finish type

Stainless steel, glass-blasted.

Guidance for specification option:

Standard.

Stainless steel with hand-painted stripes.

Guidance for specification option:

Stripes are applied at the factory. Additional charges apply, consult manufacturer for details.

Full colour (painted).

Guidance for specification option:

Factory-applied. Additional charges apply, consult manufacturer for details.

Film thickness (minimum)

Manufacturer's standard where applicable.

Colours

Stainless steel.

Guidance for specification option:

Standard.

Other.

Guidance for specification option:

Applies to painted stripes or full colour finishes only.

Consult manufacturer for options and insert requirements.

Seats

-

Type

Rope.

Number of swings

One.

Guidance for specification option:

Seats three users.

Materials

Rope.

Ground clearance

400 mm.

Guidance for specification option:

Fall height group: 1.45 m.

Plan Size

4.47 x 3.53 m.
Required fall area: 10.4 x 1.75 m.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Recyclability

All parts of this product can be recycled

Third party certifications

Constructionline Gold

Constructionline Gold

Constructionline Gold

CHAS

CHAS

CHAS Advanced

Rospa Safety Charity

Rospa Safety Charity

Rospa

TUV - Safety and Quality Report

TUV - Safety and Quality Report

TUV Rope End Swing

Literature

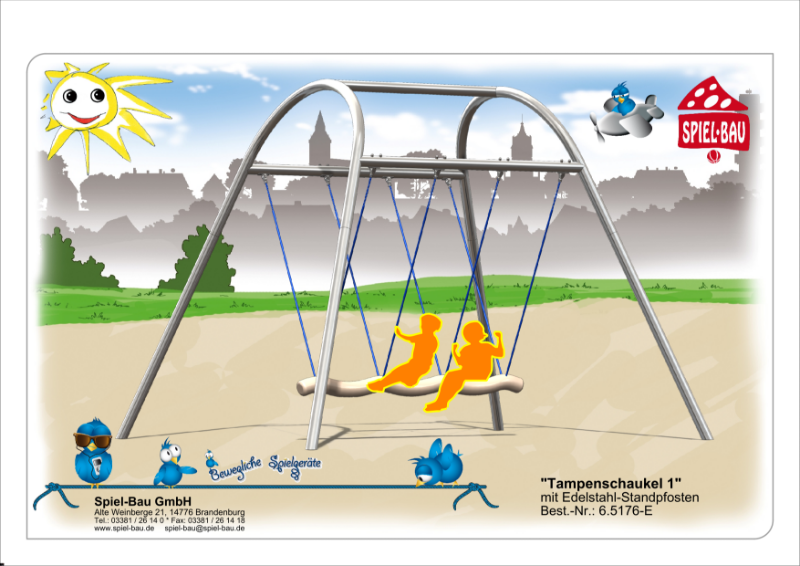

Rope End Swing Product Sheet

Rope End Swing Product Sheet

API Membership Certificate

API Membership Certificate

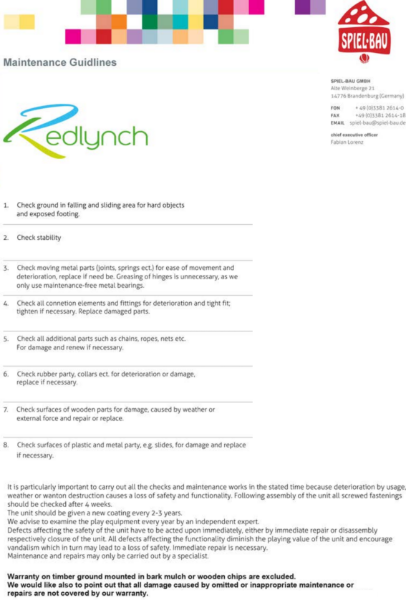

Spiel Bau Maintenance Instructions

Spiel Bau Maintenance Instructions

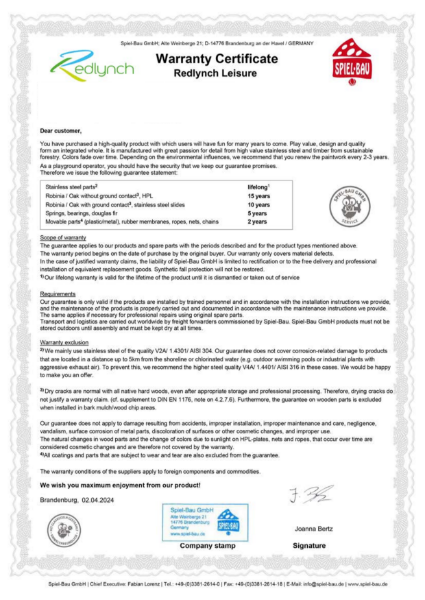

Spiel Bau Warranty Certificate
