Planibel Linea Azzurra
Verified by manufacturer 2 months ago
8 mm thick
8 mm thick

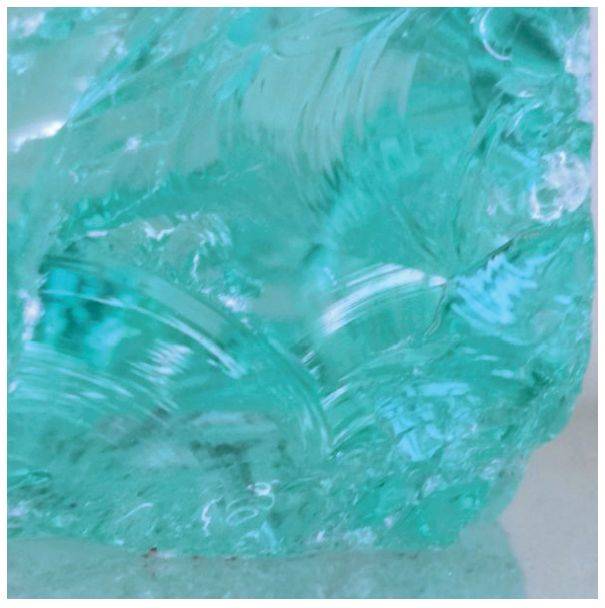

Clear, thick glass with an elegant soft blue-tinted edge.
Application

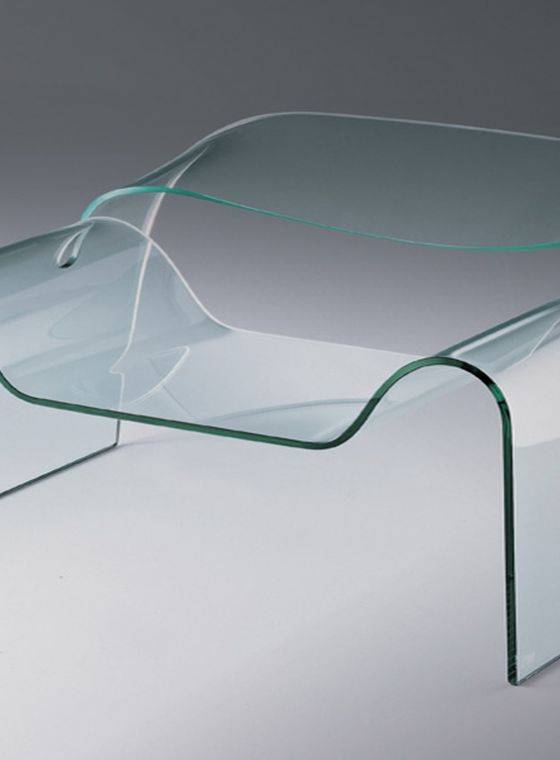

Suitable for use in multiple applications, including: high quality furniture; balustrades; partitions; stairs; floors; facades.
Description
Clear, thick glass with an elegant soft blue-tinted edge.
Features and benefits:
- Produced in Italy.
- Natural, slightly blue tint.
- Exclusive product with a contemporary, modern look and a neutral appearance, in line with market trends.
- More neutral appearance: Higher light transmission, more natural light.
- Higher energy transmission: Higher level of solar heat gain.
- Very easy to process, allowing for multiple applications.
- Can be heat treated.
General information
Color | Clear |
Material | Float glass |
Uniclass | |
CAWS | L40/380 Bead-fixed insulating glass units – solid bedding, outside bead L40/450 Single glazing into grooves – sealant capping H13/115 Structural glass assembly L10/390 Proprietary windows H10/10 Patent glazing L10/31 PVC-U windows L40/40 Putty-fronted single glazing L40/50 Bead-fixed single glazing L40/55 Bead-fixed insulating glass units – drained and ventilated bead L40/57 Bead-fixed insulating glass units – solid bedding, outside bead L40/230 Bead-fixed single glazing – non-setting compound L40/330 Bead-fixed single glazing – capping L40/350 Bead-fixed single glazing – curing compound and trim L40/430 Single glazing into grooves – non-setting compound H10/115 Patent glazing L10/330 Aluminium windows L10/20 Steel windows L40/90 Internal tape glazing L40/58 Bead-fixed insulating glass units – solid bedding, inside bead L40/260 Bead-fixed single glazing – extruded gasket L40/371 Bead-fixed insulating glass units – cellular adhesive/ mastic tape L40/490 Single-sided gasket glazing H11/110 Curtain walling L10/350 PVC-U windows L10/15 Wood windows L10/25 Aluminium windows L10/30 PVC-U windows L40/250 Bead-fixed single glazing – tape and sealant L40/310 Bead-fixed single glazing – tape, sealant and trim L40/370 Bead-fixed insulating glass units – insert gasket sections L10/210 Wood windows L10/580 Secondary glazing system L40/530 Internal tape glazing L10/10 Wood windows L10/33 Proprietary windows L40/210 Putty-fronted single glazing L40/372 Bead-fixed insulating glass units – loadbearing tapes/ synthetic rubber and sealant capping L40/381 Bead-fixed insulating glass units – solid bedding, inside bead L40/410 Single glazing into grooves – extruded rubber/ PVC sections L10/310 Steel windows L10/400 Composite windows L40/470 Zipper gasket glazing L10/58 Secondary glazing system |
Specification data - Annealed glass sheets
General requirements | Glass generally. |
Third-party certification | Cradle to Cradle: Silver. |
Composition | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Thickness | 8 mm. |
Body colour | Clear glass with a slight blue aspect. |
Pattern | Guidance for specification option: Insert requirements where applicable or delete item. |
Coating | |
Design | Guidance for specification option: Insert requirements or leave blank. |
Performance requirements | |
Fire performance | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Light | Transmittance: 88%; reflectance: 8%. |
Solar control | Solar factor: 83%; energy absorption: 13%. |
Total shading coefficient | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Sound attenuation | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Impact resistance | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Applied detail | None.Silk-screen printing and enamelling.Guidance for specification option: Insert requirements. |
Processing | Not required. Cutting, straight. Cutting, circular. Edge grinding. Grinding. Manufacturer guidanceConsult manufacturer for further details. |
Safety | Not required. Toughening/ heat strengthening. Laminating (PVB). Laminating (EVA). |
Glazing units | Not required. Double glazed IGUs. Triple glazed IGUs. |
Thermal performance | G-value (Ug): 5.6 W/m²K. |
Worked finish | Not required. Sandblasted. Guidance for specification option: Insert details including design requirements. Etching. Guidance for specification option: Insert details including design requirements. |
Sustainability data
Country of product manufacture | Italy |
