Plain Tile
Verified by manufacturer 7 months ago

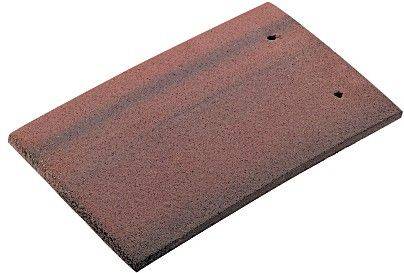

A cross-cambered, concrete plain tile of traditional appearance available in a wide range of colours to offer a variety of design options.
Application
Suitable for new build or refurbishment projects.
Description
A cross-cambered, concrete plain tile of traditional appearance available in a wide range of colours to offer a variety of design options.
General information
Color | Red Grey Black Brown Orange |
Finish | Manufacturer guidanceDependent on colour, consult manufacturer for details. |
Material | Concrete |
Shape | Rectangle |
Length | 266 mm |
Width | 165 mm |
Height | 12 mm |
Warranty description | 60 year Guidance for specification option: Redland Concrete Tile. |
Uniclass | |
CAWS | H60/120 Concrete roof tiling H60/3 Roof tiling H60/155 Concrete vertical tiling H60/10 Vertical tiling |
Product range |
Specification data - Concrete plain tiles
Colour | Black (63).Brown (02).Cotswold (12).Rustic Red (78).Slate Grey (30).Terracotta (34).Natural Red (27).Antique Red (03).Tudor Brown (36).Charcoal Grey (77).Farmhouse Red (39).Breckland Black (53).Breckland Brown (52).Hedgerow Brown (18). |
Surface finish | Manufacturer guidanceDependent on colour, consult manufacturer for details. |
Size | 266 x 165 x 12 mm. |
Batten size | 38 x 25 mm. Guidance for specification option: Up to 600 mm support spacing. |
Roof covering | 60 tiles/m². Guidance for specification option: 90°. Manufacturer guidanceCovering capacity. |
Gauge | 88 mm. Guidance for specification option: Minimum. Manufacturer guidanceMaximum, 90°: 100–115 mm, specifier to detail. |
Cover | 165 mm. Manufacturer guidanceLinear cover. |
Pitch | Manufacturer guidance35–90°, specifier to detail. |
Head-lap | 88 mm. Guidance for specification option: Maximum. Manufacturer guidanceMinimum, 90°: 35–65 mm, specifier to detail. |
Weight | 65 kg/m². 75 kg/m². Manufacturer guidanceMaximum, 90°. Consult manufacturer for details. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | IFC2X3 | 2 |
 Revit | Revit 2015 | 5 |
