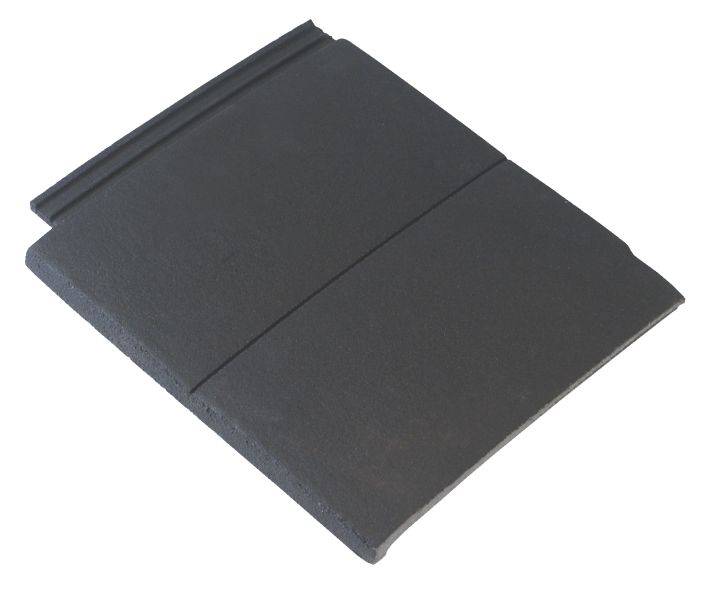

DuoPlain Tile
Verified by manufacturer 23 days ago
Concrete plain tiles.
Application
Suitable for new build or refurbishment projects.
Description
Concrete tiles which combine the classic proportions and good looks of traditional plain tiles with all the time and cost-saving benefits of interlocking tiles.
General information
Color | Red Grey Black Brown |
Finish | Coated |
Material | Concrete |
Shape | Rectangle |
Length | 268 mm |
Width | 330 mm |
Height | 17 mm |
Warranty description | 60 year Guidance for specification option: Redland Concrete Tile. |
Uniclass | |
CAWS | H60/120 Concrete roof tiling H60/3 Roof tiling H60/155 Concrete vertical tiling H60/10 Vertical tiling |
Product range |
Specification data - Concrete plain tiles
Colour | Blue (64).Flame Red (38).Rustic Red (78).Tuscan Red (11).Rustic Black (45).Rustic Brown (40).Charcoal Grey (77). |
Surface finish | Coated. |
Size | 268 x 330 x 17 mm. |
Batten size | 38 x 25 mm. Guidance for specification option: Up to 450 mm support spacing. 50 x 25 mm. Guidance for specification option: Up to 600 mm support spacing. |
Roof covering | 17.7 tiles/m² at 188 mm gauge. Manufacturer guidanceCovering capacity. |
Gauge | Manufacturer guidance173–188 mm, specifier to detail. |
Cover | 300 mm. Manufacturer guidanceLine cover. |
Pitch | Manufacturer guidance25–90°, specifier to detail. |
Head-lap | Manufacturer guidance80–95 mm, specifier to detail. |
Weight | 55 kg/m² at 188 mm gauge. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | IFC2X3 | 2 |
 Revit | Revit 2015 | 4 |
