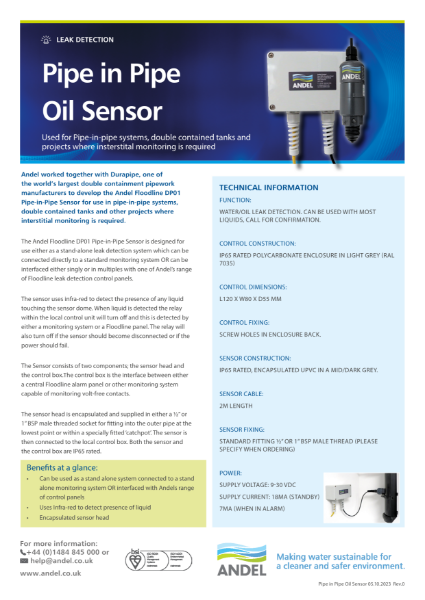

Pipe in Pipe Oil Sensor - Liquid and Oil Leak Detection

The Andel Floodline DP01 Pipe-in-Pipe Sensor is designed for use either as a stand-alone leak detection system which can be connected directly to a standard monitoring system or can be interfaced either singly or in multiples with one of Andel’s range of Floodline leak detection control panels.

The sensor uses infra-red to detect the presence of any liquid touching the sensor dome. When liquid is detected the relay within the local control unit will turn off and this is detected by either a monitoring system or a Floodline panel. The relay will also turn off if the sensor should become disconnected or if the power should fail.

The Sensor consists of two components; the sensor head and the control box. The control box is the interface between either a central Floodline alarm panel or other monitoring system capable of monitoring volt-free contacts. The sensor head is encapsulated and supplied in either a ½” or 1” BSP male threaded socket for fitting into the outer pipe at the lowest point or within a specially fitted ‘catchpot’. The sensor is then connected to the local control box.

Features and benefits:

• Sensor and control box are IP65 rated.
• Oil and liquid entering the cavity activates the sensor alarm.
• Multiple re-use.
• Two metre length sensor cable.
• Used as a stand alone system connected to a stand alone monitoring system or interfaced with Andel's range of control panels.
• Uses Infra-red to detect presence of liquid.
• Encapsulated sensor head.
