Floodline® Oil Sensor
Verified by manufacturer 2 months ago
Compact and robust oil and conductive liquid leak detector.
Application
Applications include:
- Internal oil tanks.
- Plant rooms.
- Pump sets and backup generators.
- Oil sensors activate with oil (or other liquid).
Description
The Floodline® Oil Sensor can be included as part of a larger water leak detection system, or one or more can be used to provide a dedicated oil leak alarm system.
Oil Sensors are connected to a standard Floodline® Control Panel giving visual and audible alarm features in addition to the facility for onward, remote, communications to a building management system (BMS).
Features and benefits:
- Stainless steel Floodline® Guard Plate for heavy-duty protection and mounting.
- Cost-effective, robust design.
- Vertical, horizontal or floor mounting options.
- Activates through contact with oil and any conductive liquid.
- Multiple re-use.
- Instant return to use after a leak is cleared.
- Can be connected in any number and combination with other Floodline® sensors and control panels.
General information
Color | Black Guidance for specification option: Body. Silver Guidance for specification option: Steel guard. |
Material | Plastic Guidance for specification option: Body. Stainless steel Guidance for specification option: Steel guard. |
Shape | Rectangle |
Length | 25 mm Guidance for specification option: Sensor. 30 mm Guidance for specification option: Guard plate. Manufacturer guidanceDepth. |
Width | 44 mm Guidance for specification option: Sensor. 105 mm Guidance for specification option: Guard plate. |
Height | 71 mm Guidance for specification option: Sensor. 110 mm Guidance for specification option: Guard plate. |
Warranty description | Ten year |
Material | Plastic Guidance for specification option: Body. Stainless steel Guidance for specification option: Steel guard. |
Uniclass |
Specification data - Liquid presence detection and alarm systems
Sensor types | Water-sensing and oil-sensing sensor head. |
Rewireable installation | Required. |
Alarm indication | Audible alarm. |
Mounting | Guard plate. Guidance for specification option: Vertically at base of wall or apparatus, or floor-standing. Free-standing. Manufacturer guidanceTank/ Sump requires special bracket. Contact manufacturer for details. |
Dimensions | 71 x 44 x 25 mm (sensor). Guidance for specification option: H x W x D. |
Sustainability data
Material | Plastic Guidance for specification option: Body. Stainless steel Guidance for specification option: Steel guard. |
Literature

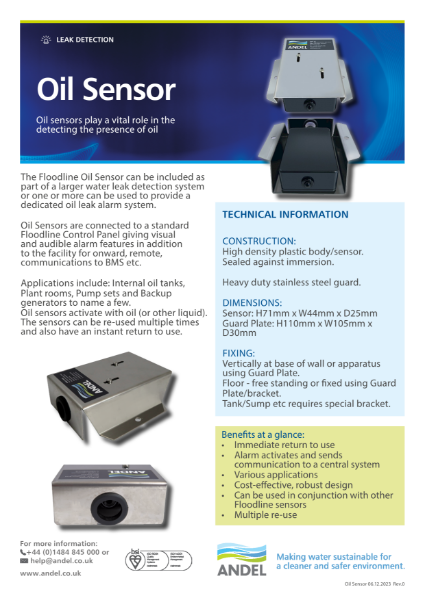

Floodline Oil Sensor Data Sheet
