Piazza - Steel Grating Carpark Wall Cladding
Verified by manufacturer 1 month ago
Piazza-25
Piazza-25
A steel grating with a square aperture of 25, 44, 66 or 132 mm for cladding, security screens or green wall trellis.
Application
Suitable for schools, colleges and public buildings.
Description
The Piazza range of architectural gratings are defined by its square aperture, and is manufactured from vertical flat bars and plain round bars. The manufacturing process fuses the component parts of a panel for complete integrity.

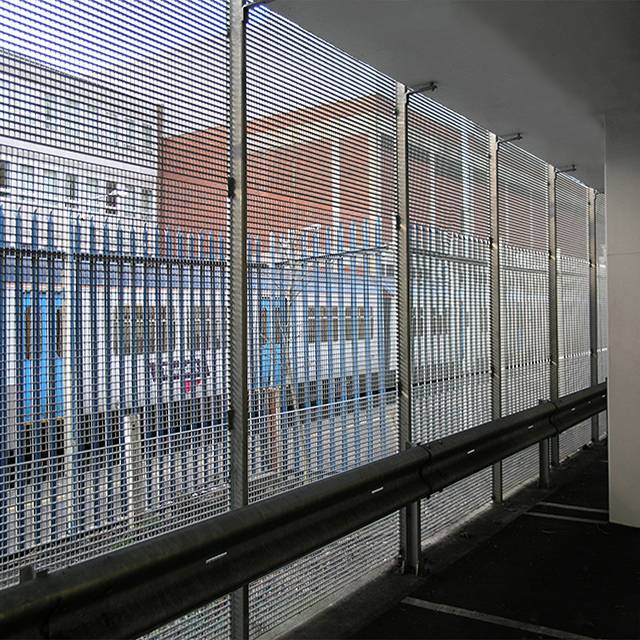

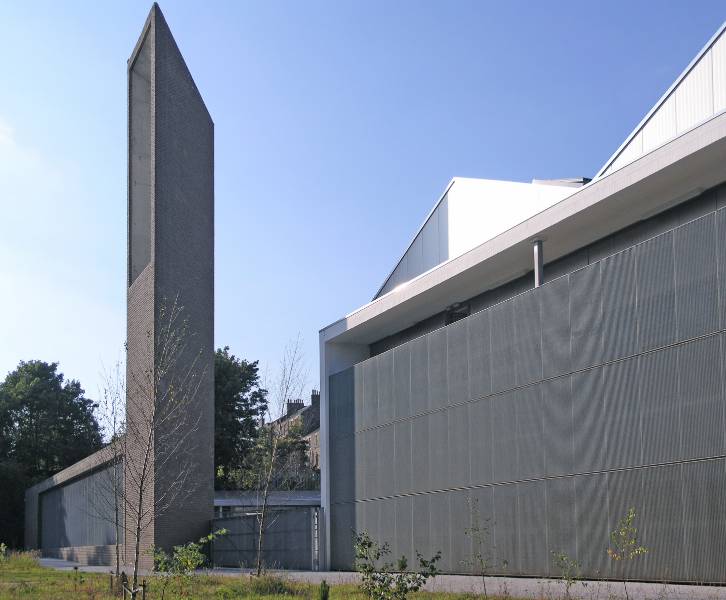

Framed panels are manufactured to custom-sizes and provide security, natural daylight and ventilation for a wide variety of applications such as wall cladding, security screens, ventilation grilles and green wall planting trellis.
Features and benefits:
- Piazza-25: Very small aperture which is recommended where a risk of danger from projectiles exist.
- Piazza-44: Small aperture for enhanced security.
- Piazza-44H: Characterized by horizontal flat bars.
- Piazza-66: Recommended for general purpose use.

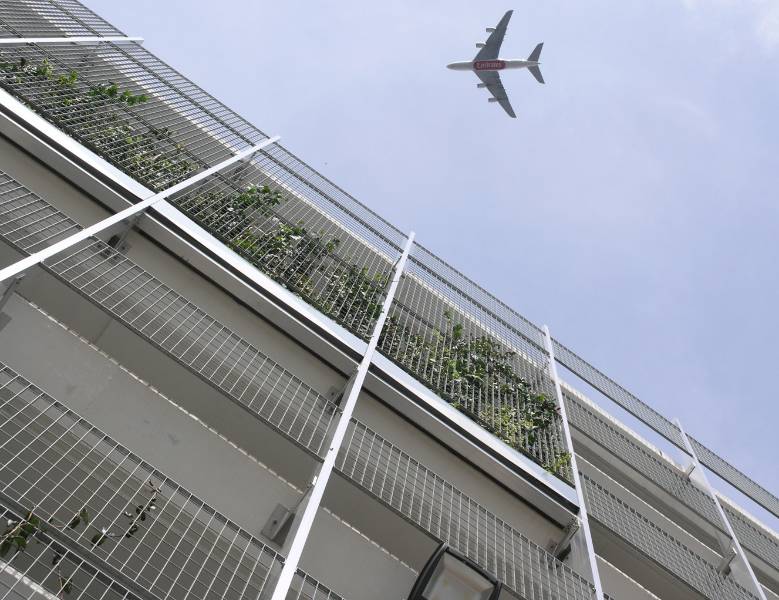

- Piazza-132: Strong but relatively light-weight grating; recommended as a green wall plant trellis.
- Panels and ancillary steelwork can be supplied galvanized only, or galvanized and powder coated to any RAL colour.
General information
Color | Grey Beige Black Blue Bronze Manufacturer guidanceHot-dip galvanized and polyester powder coated option to any RAL or BS colour. |
Finish | Galvanized Guidance for specification option: Hot-dipped to BS EN ISO 1461. Powder-coated |
Material | Steel |
Shape | Rectangle Guidance for specification option: Vertical flar bars, horizontal round bars and curved or waved top. |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L10/60 Security H31/10 Metal H31/120 Metal L10/690 Security |
Product range |
Specification data - Carbon steel grille panels
Performance requirements | |
Recycled content | 56%. |
Panel | |
Top edge | |
Material | Carbon steel S235JR. |
Shape | Rectangular. |
Finish | Hot-dip galvanized.Guidance for specification option: To BS EN ISO 1461. Hot-dip galvanized and polyester powder coated, RAL.Guidance for specification option:
|
Dimensions | Manufacturer's standard. |
Side edges | |
Material | Carbon steel S235JR. |
Shape | Rectangular. |
Finish | As Top edge. |
Dimensions | Manufacturer's standard. |
Bottom edge | |
Material | Carbon steel S235JR. |
Shape | Rectangular. |
Finish | As Top edge. |
Horizontal rails | |
Material | Carbon steel S235JR.Guidance for specification option: Electrofused to vertical bars. |
Shape | Circular. |
Finish | As Top edge. |
Dimensions | Manufacturer's standard |
Vertical bars | |
Material | Carbon steel S235JR.Guidance for specification option: Electrofused to horizontal rails. |
Shape | Rectangular. |
Finish | As Top edge. |
Dimensions | 25 x 2 mm. |
Fixings | Through holes in the framing bar.Through plates welded behind the vertical flat bars.Through plates welded between the vertical flat bars.With clamping brackets.Manufacturer guidanceFour alternative fixing methods with a minimum of four fixing points per panel. |
Panel Type | Piazza-25. |
Panel size | Guidance for specification option: Insert requirements, maximum 4000 x 1000 mm per panel. Manufacturer guidance
|
Aperture | 25 x 25 mm. Guidance for specification option: Very small aperture; recommended where risk of danger from projectiles exist. |
Other requirements | Not required. Shaped to suit non-uniform openings. Rolled to a radius. Manufacturer guidanceThe integrity of the raw material allows it to be cut or shaped to suit non-uniform openings or rolled to a radius. |
Framing | Framed top and bottom with flat bars. |

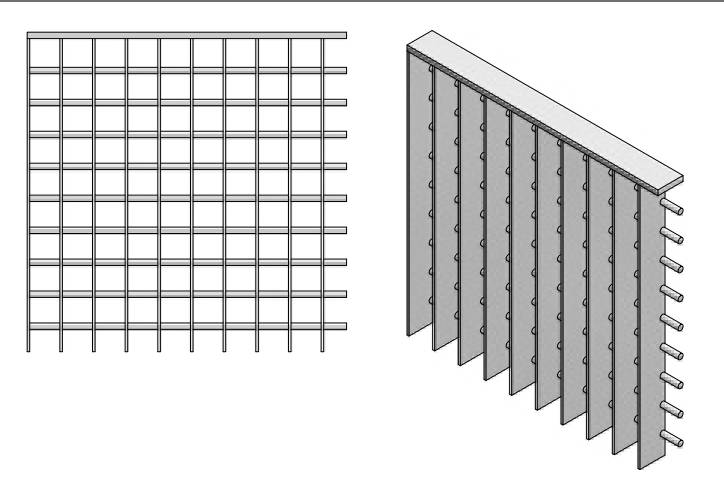

Orientation | Vertical flat bars and horizontal circular rails. |
Accessories | Not required. Secondary support steelwork. Guidance for specification option: Designed and supplied as required. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Material | Steel |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 1.42 kg CO₂ eq/kg Self declared |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 56 % |
Literature

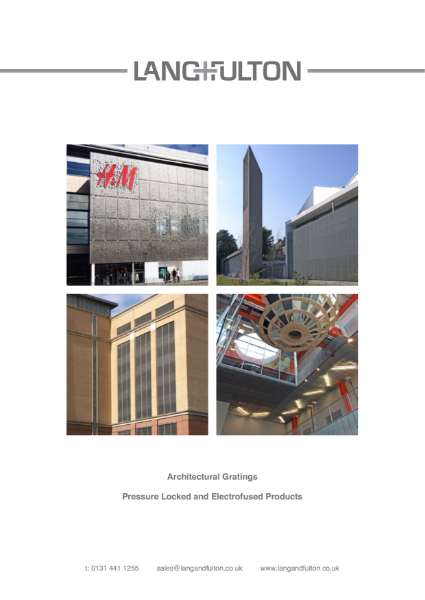

Gratings for Cladding, Screening and Balustrades
