Stereo - Steel Grating Carpark Wall Cladding

Verified by manufacturer 15 days ago

Stereo-3

Lang+Fulton Variant:

A steel grating for cladding and security screens with a rectangular aperture 62 mm wide, available in 4 m high panels suitable for covering large areas.

Jump to:
+44 (0)131 441 1255 Website

Application

Suitable for a wide variety of applications such as wall cladding, car park screens and ventilation grilles.

Description

The Stereo range of architectural gratings is made from vertical flat bars and plain round bars and is defined by a 62 x 132 mm rectangular aperture. The manufacturing process fuses the component parts of a panel for complete integrity.


Framed panels are manufactured to custom-sizes and provide security, natural daylight and ventilation for a wide variety of applications such as wall cladding, car park screens and ventilation grilles.


Features and benefits:

  • The overall size of panel is only limited by the practicalities of on-site handling, but the recommended maximum size is 4000 x 1870 mm.
  • Stereo range includes: Stereo-3 (made with a 25 x 3 mm bearing bar) and Stereo-4 (made with a 30 x 4 mm bearing bar).
  • Panels and ancillary steelwork can be supplied galvanized only or galvanized and powder coated to any RAL colour.

General information

Color

Grey

Beige

Black

Blue

Bronze

Show more

Manufacturer guidance

Hot-dip galvanized and polyester powder coated option to any RAL or BS colour.

Finish

Galvanized

Guidance for specification option:

Hot-dipped to BS EN ISO 1461.

Powder-coated

Material

Steel

Shape

Rectangle

Guidance for specification option:

Vertical flat bars and plain round bars, rectangular aperture.

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_25_71_50_11 Carbon steel grille panelsPrimary

CAWS

H31/10 Metal

H31/120 Metal

L10/60 Security

L10/690 Security

Product range

Cladding Panels and Screening

Specification data - Carbon steel grille panels

Performance requirements

-

Recycled content

56%.

Panel

-

Top edge

-

Material

Carbon steel S235JR.

Shape

Rectangular.

Finish

Hot-dip galvanized.

Guidance for specification option:

To BS EN ISO 1461.

Hot-dip galvanized and polyester powder coated, RAL.

Guidance for specification option:

  • Insert colour requirement.
  • To BS EN ISO 1461 and polyester powder coated to BS EN 13438 in any RAL or BS colour.
  • Polyester powder coating is a multi-stage process which applies thermo-setting resins producing a superior finish to painting.

Dimensions

25 x 3 mm.

Side edges

-

Material

Carbon steel S235JR.

Shape

Rectangular.

Finish

As Top edge.

Dimensions

As Top edge.

Bottom edge

-

Material

Carbon steel S235JR.

Shape

Rectangular.

Finish

As Top edge.

Dimensions

As Top edge.

Horizontal rails

-

Material

Carbon steel S235JR.

Guidance for specification option:

Electrofused.

Shape

Circular, set to the inside of the panel.

Guidance for specification option:

Standard, round bars set to inside of enclosed area.

Circular, set to the outside of the panel.

Guidance for specification option:

Round bars set to outside of enclosed area.

Finish

As Top edge.

Dimensions

Manufacturer's standard.

Vertical bars

-

Material

Carbon steel S235JR.

Guidance for specification option:

Electrofused.

Shape

Rectangular.

Finish

As Top edge.

Dimensions

As Top edge.

Fixings

Through holes in the framing bar.

Through plates welded behind the vertical flat bars.

Through plates welded between the vertical flat bars.

With clamping brackets.

Manufacturer guidance

There are four alternative fixing methods with a minimum of 4 fixing points per panel.

Panel size

Guidance for specification option:

Insert requirements, maximum 4000 x 1870 mm.

Manufacturer guidance

  • Bespoke h x w, fabricated to custom sizes up to maximum.
  • Large structural openings are covered by an arrangement of panels.

Aperture

62 x 132 mm.

Accessories

Not required.

Secondary support steelwork.

Guidance for specification option:

Designed and supplied as required.

Other requirements

Not required.

Shaped to suit non-uniform openings.

Rolled to a radius.

Manufacturer guidance

The integrity of the raw material allows it to be cut or shaped to suit non-uniform openings, or rolled to a radius.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

1.42 kg CO₂ eq/kg

Self declared

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

56 %

Literature

Gratings for Cladding, Screening and Balustrades

Gratings for Cladding, Screening and Balustrades

Case studies

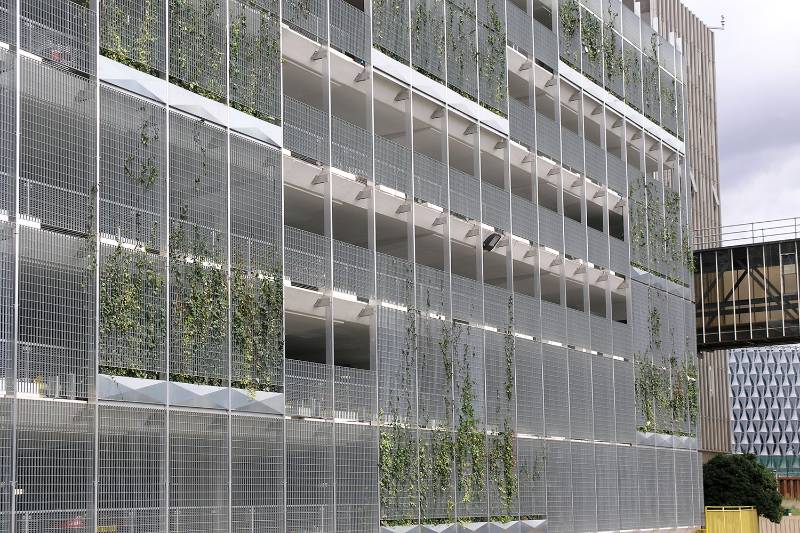

Open mesh grating facade to create green wall at New Covent Garden

Open mesh grating facade to create green wall at New Covent Garden

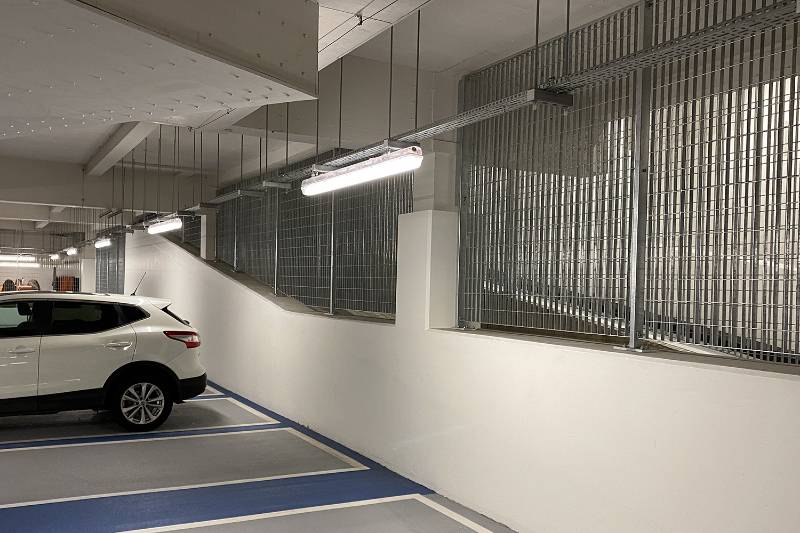

St James Quarter car park – Stereo Grating Security Screens
