Piatto Block Paving
Verified by manufacturer 4 months ago
Textured finish
Textured finish
Brett Piatto is a premium, modular concrete block paving using high quality aggregates. It is available in a wide range of colours and sizes, in two distinct finishes.
Application
Suitable for both pedestrian and vehicular applications when correctly designed and installed in accordance with the BS 7533 suite of standards.
Description
Piatto textured block paving offers a wide range of beautiful modular paving that is suitable for all types of urban and commercial hard landscaped areas where superb aesthetics are a key specification requirement.
Since the range of Piatto textured block paving colours are achieved using natural aggregates they also provide excellent durability ensuring that the pavement will retain its good looks for many years to come.
Standards:
Brett Landscaping operate a number of independently audited management systems:
- BS EN ISO 9001: 2008 Quality Management System.
- BS EN ISO 14001: 2004 Environmental Management System.
- OHSAS 18001: 2007 Health and Safety Management System.
- BES 6001 Responsible Sourcing of Construction Products.
General information
Color | Red Grey White Yellow |
Finish | Textured |
Material | Concrete |
Shape | Square Rectangle |
Length | 100 mm Guidance for specification option: Textured or Ground. 200 mm Guidance for specification option: Textured or Ground. 300 mm Guidance for specification option: Textured or Ground. 400 mm Guidance for specification option: Ground. 600 mm Manufacturer guidanceAll sizes are made to order. |
Width | 100 mm Guidance for specification option: Textured or Ground. 200 mm Guidance for specification option: Textured or Ground. 300 mm Guidance for specification option: Textured or Ground. 400 mm Guidance for specification option: Ground. Manufacturer guidanceAll sizes are made to order. |
Height | 80 mm |
Uniclass | |
CAWS | Q24/10 Conventional concrete block paving Q24/110 Conventional concrete block paving Q24/112 Conventional concrete block paving with bound base Q24/113 Conventional concrete block paving overlay Q25/31 Concrete flag paving systems Q25/315 Concrete flags |
Specification data - Concrete paving blocks
Standard | To BS EN 1338. |
Physical properties | |
Colour | Silver Granite.Yellow Granite.Dark Basalt.Rosa.Guidance for specification option: (Textured only made to order). Dark Granite.Golden Fleck.Harvest.Guidance for specification option: (not available with ground finish). Mosaic.Guidance for specification option: (not available with textured finish). Pink Fleck.Guidance for specification option: (not available with textured finish). Red Granite.Guidance for specification option: (not available with ground finish). Starlight.Guidance for specification option: (not available with textured finish). White Granite.Guidance for specification option: (not available with ground finish). |
Finish | Textured. |
Profile | |
Paver type | Regular plan form. |
Interlocking features | Nibs. |
Dimensions and associated tolerances | |
Nominal sizes | 100 x 100 x 80 mm.200 x 100 x 80 mm.300 x 200 x 80 mm.300 x 300 x 80 mm.Manufacturer guidanceMade to order. |
Arrises | Chamfered, textured. |
Weathering resistance | Class 3. |
Abrasion resistance | Class 4. |
Slip resistance | Unpolished Slip Resistance Value (USRV): Extremely Low.Guidance for specification option: USRV: Extremely Low - (textured finish). USRV: Low - (ground finish). |
Skid resistance | PPTV: Low. |
Type | Hand lay. |
Other requirements | Other colours available to special order. Ground option available to special order. |
Third-party certification | CE marked. |
TensileStrength | ≥3.6 MPa. |
Tolerances on plan dimension and thickness (nominal) | Thickness: ±3 mm; Plan size: ±2 mm. |
Literature

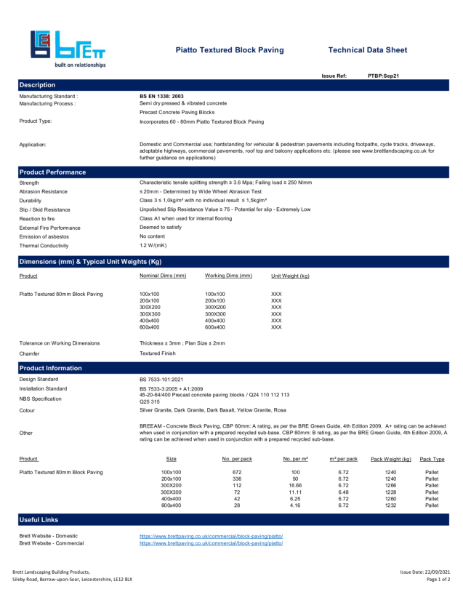

Piatto Ground TDS Sept 21
Brett Landscaping Trade Guide 2024
Inspiring-Paving-Kerbs
