Piatto Block Paving

Verified by manufacturer 3 months ago

Textured finish

Brett Landscaping Variant:

Brett Piatto is a premium, modular concrete block paving using high quality aggregates. It is available in a wide range of colours and sizes, in two distinct finishes.

Jump to:
+44 (0)345 60 80 570 Website

Application

Suitable for both pedestrian and vehicular applications when correctly designed and installed in accordance with the BS 7533 suite of standards.

Description

Piatto textured block paving offers a wide range of beautiful modular paving that is suitable for all types of urban and commercial hard landscaped areas where superb aesthetics are a key specification requirement.


Since the range of Piatto textured block paving colours are achieved using natural aggregates they also provide excellent durability ensuring that the pavement will retain its good looks for many years to come.


Standards:

Brett Landscaping operate a number of independently audited management systems:

  • BS EN ISO 9001: 2008 Quality Management System.
  • BS EN ISO 14001: 2004 Environmental Management System.
  • OHSAS 18001: 2007 Health and Safety Management System.
  • BES 6001 Responsible Sourcing of Construction Products.

General information

Color

Red

Grey

White

Yellow

Finish

Textured

Material

Concrete

Shape

Square

Rectangle

Length

100 mm

Guidance for specification option:

Textured or Ground.

200 mm

Guidance for specification option:

Textured or Ground.

300 mm

Guidance for specification option:

Textured or Ground.

400 mm

Guidance for specification option:

Ground.

600 mm

Manufacturer guidance

All sizes are made to order.

Width

100 mm

Guidance for specification option:

Textured or Ground.

200 mm

Guidance for specification option:

Textured or Ground.

300 mm

Guidance for specification option:

Textured or Ground.

400 mm

Guidance for specification option:

Ground.

Manufacturer guidance

All sizes are made to order.

Height

80 mm

Uniclass

Pr_25_93_60_17 Concrete paving blocksPrimary

CAWS

Q24/10 Conventional concrete block paving

Q24/110 Conventional concrete block paving

Q24/112 Conventional concrete block paving with bound base

Q24/113 Conventional concrete block paving overlay

Q25/31 Concrete flag paving systems

Q25/315 Concrete flags

Specification data - Concrete paving blocks

Standard

To BS EN 1338.

Physical properties

-

Colour

Silver Granite.

Yellow Granite.

Dark Basalt.

Rosa.

Guidance for specification option:

(Textured only made to order).

Dark Granite.

Golden Fleck.

Harvest.

Guidance for specification option:

(not available with ground finish).

Mosaic.

Guidance for specification option:

(not available with textured finish).

Pink Fleck.

Guidance for specification option:

(not available with textured finish).

Red Granite.

Guidance for specification option:

(not available with ground finish).

Starlight.

Guidance for specification option:

(not available with textured finish).

White Granite.

Guidance for specification option:

 (not available with ground finish).

Finish

Textured.

Profile

-

Paver type

Regular plan form.

Interlocking features

Nibs.

Dimensions and associated tolerances

-

Nominal sizes

100 x 100 x 80 mm.

200 x 100 x 80 mm.

300 x 200 x 80 mm.

300 x 300 x 80 mm.

Manufacturer guidance

Made to order.

Arrises

Chamfered, textured.

Weathering resistance

Class 3.

Abrasion resistance

Class 4.

Slip resistance

Unpolished Slip Resistance Value (USRV): Extremely Low.

Guidance for specification option:

USRV: Extremely Low - (textured finish).

USRV: Low - (ground finish).

Skid resistance

PPTV: Low.

Type

Hand lay.

Other requirements

Other colours available to special order.

Ground option available to special order.

Third-party certification

CE marked.

TensileStrength

≥3.6 MPa.

Tolerances on plan dimension and thickness (nominal)

Thickness: ±3 mm; Plan size: ±2 mm.

Literature

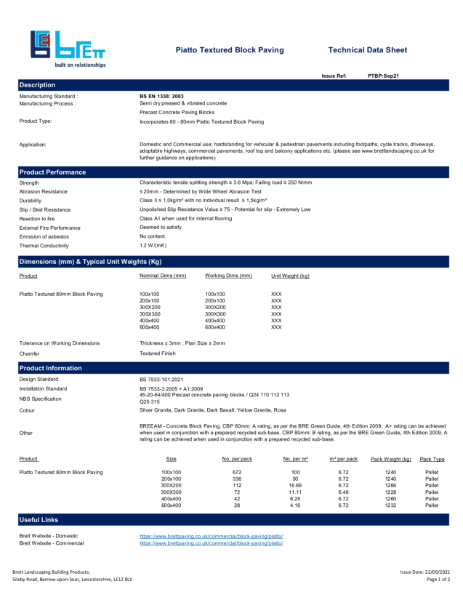

Piatto Ground TDS Sept 21
