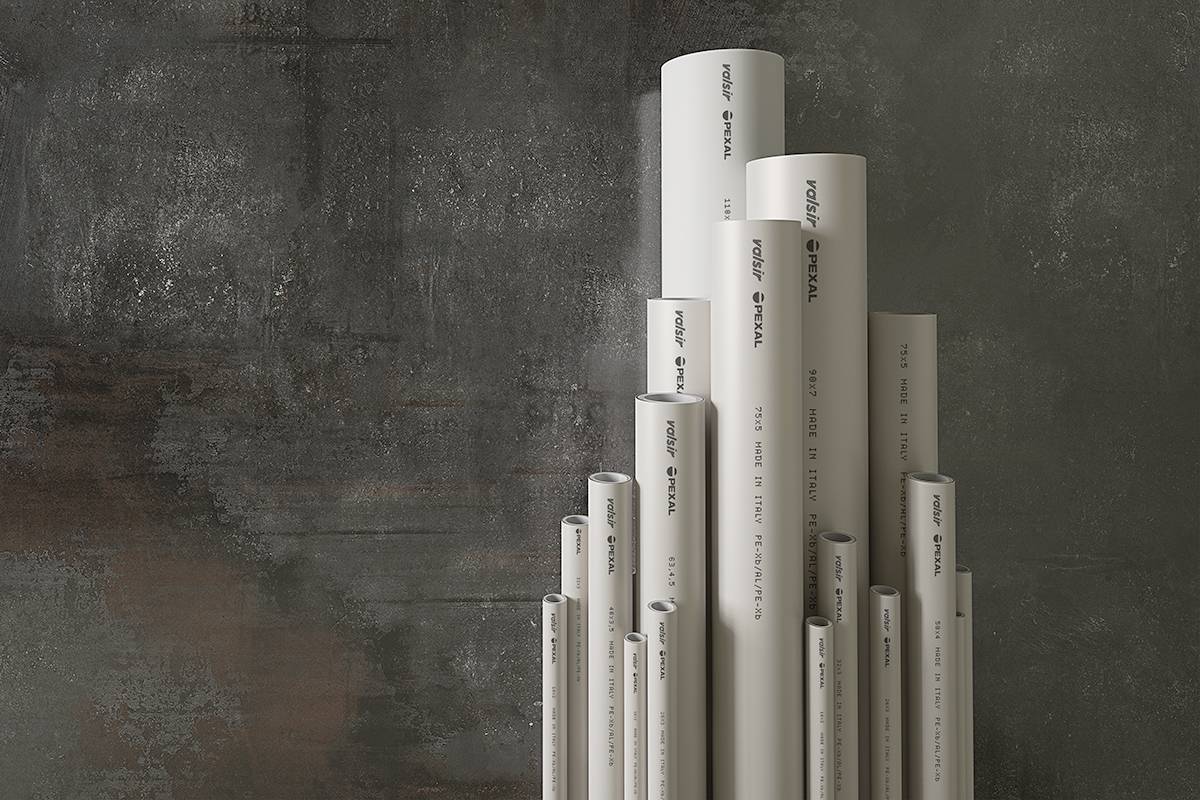

Pexal MLCP - Multilayer Pipes

Valsir Pexal® system is a multilayer piping solution engineered for potable water, heating, and cooling applications across residential, commercial, public, industrial and laboratory environments. It incorporates a durable five-layer structure consisting of cross-linked polyethylene (PE-Xb) inner and outer layers, bonded to a central aluminium alloy core, connected by a high-performance glue, offering excellent mechanical and thermal behaviour.

Pipe construction:

• Inner layer: Cross-linked polyethylene (PE-Xb).
• Middle layer: Aluminium alloy (oxygen barrier).
• Outer layer: Cross-linked polyethylene (PE-Xb).

Performance characteristics:

• High resistance to pressure, corrosion, and temperature variations.
• Low thermal expansion and minimal pressure loss.
• Durable, flexible structure for easy handling and installation.
• Oxygen barrier core extends the lifespan of heating systems.

Fittings compatibility:

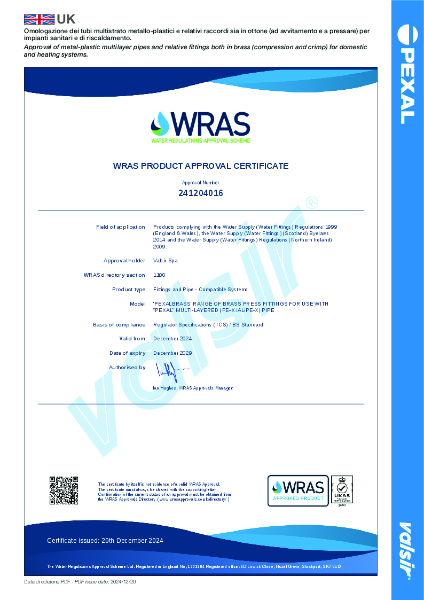

The Valsir Pexal system supports a complete range of WRAS-approved press and full-bore fittings, enabling scalable use across small and large-diameter installations:

1. Pexal® Brass Fittings (Ø 16–90 mm):
   • Brass body with stainless steel sleeve.
   • Multi-profile compatibility: H, TH, U, C, VAL.
   • Leak-before-press detection.
   • Tamper-proof design for installation security.

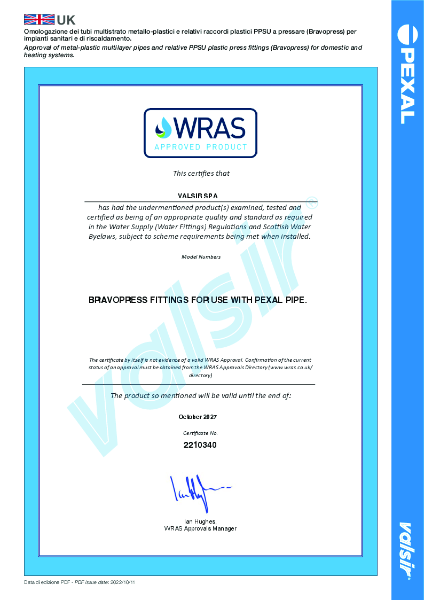

2. Bravopress® PPSU Fittings (Ø 16–63 mm):
   • Manufactured from PPSU technopolymer.
   • Highly resistant to chemicals and corrosion.
   • Multi-crimping compatibility and leak detection feature.
   • Tamper-proof.
3. Pexal XL Modular Fittings (Ø 40–110 mm):
   • PPSU fittings for large-diameter pipes.
   • Lightweight and easy to install.
   • Ideal for limited-space applications.
4. Pexal Easy Fittings (Ø 16–75 mm):
   • Technopolymer full-bore fittings.
   • Reusable, fast-connection design.
   • Designed for high flow and fast installation.

Installation features:

• Compatible with commonly used pressing tools.
• Flexible pipe coils simplify routing and reduce fittings.
• Supports water testing prior to full commissioning.
• Integrated leak detection for enhanced safety and quality assurance.

Pre-insulated pipe options:

• Pre-insulated pipes available up to Ø 32 mm.
• Available with red, blue, or grey PE outer jackets.
• Fire-rated insulation: B-s1, d0 (EN 13501-1).
• Insulation thicknesses: 6 mm to 25 mm.
• Thermal conductivity: λ = 0.037 W/m·K.

Transition fittings:

To ensure maximum versatility and compatibility with existing systems, the Valsir Pexal range includes a comprehensive suite of transition fittings for a seamless connection to metal or mechanical installations:

• Copper press fittings (M profile): secure press-fit connection with copper systems.
• Copper compression fittings: traditional mechanical compression joints.
• Copper valve adapters: transition fittings for direct connection to copper-bodied valves.
• Welded copper tails: available straight or angled, also with chrome finish for radiator or visible connections.
• Flanged fittings: for mechanical connections in plant rooms and industrial systems.
• Threaded fittings:
  • Male and female threaded adapters.
  • Swivel female connections for easy coupling to existing components.
