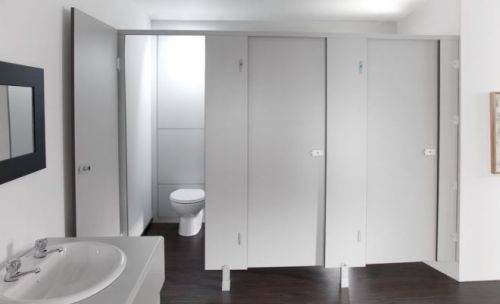

Melamine faced chipboard (MFC) cost effective toilet cubicle.
Suitable for dry bathroom environments.
Melamine faced chipboard (MFC) cost effective toilet cubicle.
Features and benefits:
Door width:
600 mm.
Fascias:
Color | Cream Grey White |
Material | MFC Guidance for specification option: Panels: 18 mm Melamine faced chipboard. Aluminium Guidance for specification option: Satin anodized aluminium (SAA). Fittings (including head-rail, brackets, cubicle legs, heavy-duty hinges and cubicle latches). |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | K32/10 Panel cubicles K32/120 Panel cubicles |
Product range |
Panels | Melamine faced chipboard (MFC).Guidance for specification option: 18 mm. |
Doors | Melamine faced chipboard (MFC).Guidance for specification option: 18 mm. Door width: 600 mm. |
Hardware | Head-rail, brackets, cubicle legs, heavy-duty hinges and cubicle latches.Guidance for specification option: Satin anodized aluminium (SAA). Manufacturer guidanceFittings |
Wall panel | Not required. Full-height. Guidance for specification option: Consult manufacturer and insert requirements. Half-height. Guidance for specification option: Consult manufacturer and insert requirements. |
Edging | 2 mm solid polyvinyl chloride (PVC). |
Partition height | 1800 mm. |
Partition depth | 1500 mm. Guidance for specification option: Standard. Bespoke. Guidance for specification option: Insert requirement, available up to 1800 mm. |
Overall cubicle height | 1955 mm. Guidance for specification option: Standard. Includes 155 mm floor clearance. Bespoke. Guidance for specification option: Insert requirement. |
Partitions | Cream. Plain Grey. Speckled Light Grey. White. |
Doors | Cream. Plain Grey. Speckled Light Grey. White. |
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | MFC Guidance for specification option: Panels: 18 mm Melamine faced chipboard. Aluminium Guidance for specification option: Satin anodized aluminium (SAA). Fittings (including head-rail, brackets, cubicle legs, heavy-duty hinges and cubicle latches). |
