Pedestrian Gates
Verified by manufacturer 19 days ago
Single leaf
Single leaf

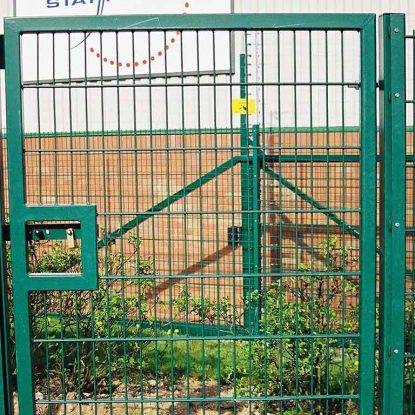

Pedestrian gates.
Application
Can be used in a variety of applications, including:
- Temporary events.
- Emergency services and health.
- Educational establishments and schools.
- Civic and public sector.
- Industrial.
- Utilities.
- Leisure and sports facilities.
- Construction.
- Residential and commercial.
- Infrastructure.
- Agricultural.
Description
Pedestrian gates, suitable for installation adjacent to automated vehicular gates for pedestrian access.
Features and benefits:
- Designed to provide a safe access route for pedestrian traffic to and from sites.
- For use with perimeter security fencing or sports fencing solutions.
- Can be manufactured to any required width or height.
- Available with a choice of infills and colours.
- Can be used with manual and electronic locks.
- Access control options can be applied.
- Frame is manufactured from fully welded steel section.
General information
Finish | Galvanized Powder coated |
Material | Carbon steel Steel |
Uniclass | |
CAWS | Q40/40 Steel Q40/560 Steel |
Specification data - Carbon steel gates
Dimensions | |
Span | Manufacturer guidance0.6–7 m. Consult manufacturer and insert requirements. |
Height | 400 mm. 600 mm. 800 mm. 1000 mm. 1200 mm. 1400 mm. 1600 mm. 1800 mm. 2000 mm. 2200 mm. 2400 mm. 3000 mm. 3200 mm. 3400 mm. 3600 mm. 3800 mm. 4000 mm. Manufacturer guidanceOther heights are available on request - consult manufacturer for information. |
Posts | Carbon steel. |
Gate leaves | Advantage Tennis. Guidance for specification option: Others are also available - consult manufacturer for information. ArmaWeave. Apex. Axiom. Barcode. Bow Top. Bushberry. DualGuard. Duo Sport. Duo. Grata. Gemini. Hockey. HiSec. SuperHiSec DualSkin. Holloway. Optima. Super Rebound. Vertical Bar. Zariba. |
Hardware | |
Securing | CodeLock. Guidance for specification option: Consult manufacturer's literature and insert requirements. Fire exit panic latch. Slide bar. Cylinder lock. Locinox locks. Electric release. Electric lock. Manual lock. Fail safe. Secure options. |
Finish as delivered | |
Applied finish | Galvanized and polyester powder-coated (PPC). Manufacturer guidanceInsert RAL colour requirement. |
Closers | Not required. Required. |
Opening | Inwards. Outwards. |
Accessories/ Other requirements | Not required. Access control. Guidance for specification option: Consult manufacturer and insert requirements. Security toppings. Guidance for specification option: Consult manufacturer and insert requirements. Manufacturer guidanceVarious other accessories are available - consult manufacturer for information. |
Swing | Left hand. Right hand. |
Literature
Vehicle Gates & Pedestrian Gates & Barriers
