Paxton10 Turret Camera – PRO Series - IP POE Camera
Verified by manufacturer 3 days ago
IP, PoE, 8 MP Camera with built in 256 GB SD card, IP67 rated for external use.
Application
Installation – Paxton10 cameras are equipped with the latest technology and video management software, eliminating the need for configuration. The cameras are directly connected to the network and powered via TCP/IP and will be visible in the Paxton10 Software under the devices menu. Add the camera to the system and name it as appropriate. No further configuration is required.
Operation – The Paxton10 cameras support a number of useful video management features, including:
- ‘Live View’ and recorded video.
- Video export.
- High-speed scrubbing.
- Bookmarking.
- Smart search.
Every Paxton10 camera comes with Paxton’s standard five-year guarantee. The plug-and-play hardware requires zero configuration, with immediate automatic recognition within the software, making installation and commissioning simple.
Description
The high performance PRO series provides 4K high-resolution and 256 GB of in-built memory to create a professional edge storage solution.
The turret camera has a ball and socket design which allows it to rotate freely once the base is mounted, allowing multiple directions to be viewed with a single camera.
Video is recorded on the camera’s built-in SD card. Video recordings can also be stored on an external network drive. Use the Paxton10 Video Storage Calculator to determine how much storage you will need per camera on your Paxton10 system.
The Paxton10 PRO series cameras come with a 256 GB SD card as standard. Please note, whilst the camera is covered by a five-year warranty, the SD card is a consumable item and is therefore excluded from the guarantee.
Features and benefits:
- 8 MP ultra-low light sensor capable of recording at up to 4K.
- 256 GB high performance SD card.
- IP67 rating.
- Mountable on either wall or ceiling.
- All metal construction.
- 30 m IR range.
- 120 dB wide dynamic range.
- 12 V d.c. or PoE (af).
- 0.003 lux at f1.6.
- 2.8 mm focal length.
General information
Color | Black White |
Material | Metal |
Shape | Other |
Width | 126.3 mm |
Height | 138.3 mm |
Warranty description | Five year |
Uniclass | |
CAWS | W90/170 Surveillance CCTV systems W90/170 Closed-circuit television (CCTV) system |
Product range |
Specification data - Internet protocol (IP) high-speed pan-tilt-zoom (PTZ) cameras
Video system | PAL.NTSC. |
Resolution (minimum) | 8 MP. |
Minimum illumination | 0.003 lux at f1.6. |
Integrated illumination | Infrared with 30 m range. |
Camera functions | |
Wide dynamic range | 120 dB wide dynamic range. |
Day/ night mode switching | Automatic. |
Lens | |
Focal length | 2.8 mm. |
Aperture range | f1.6. |
Angle of view | Horizontal FOV: 102°; Vertical FOV: 55°; Diagonal FOV: 120°. |
Pan-and-tilt function | |
Pan angle | 0–360°. |
Tilt angle | 0–75°. |
Power supply | 12 V d.c.Power over Ethernet (PoE). |
Network protocols | IP. |
Video compression formats | H.264. |
Integral memory storage (minimum) | 256 GB. |
Camera housing | |
Ingress protection (minimum) | IP67. |
Mounting arrangement | Wall.Ceiling. |
Operating temperature | -30 to 60°C. |
Weight | 740 g. |
Integral accessories | Paxton10 Server. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Metal |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature

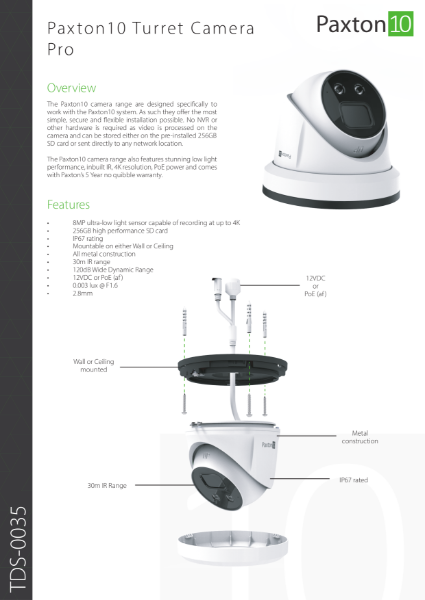

Paxton10 Turret Camera, PRO series - data sheet
Paxton10 Turret Camera, PRO series - instructions

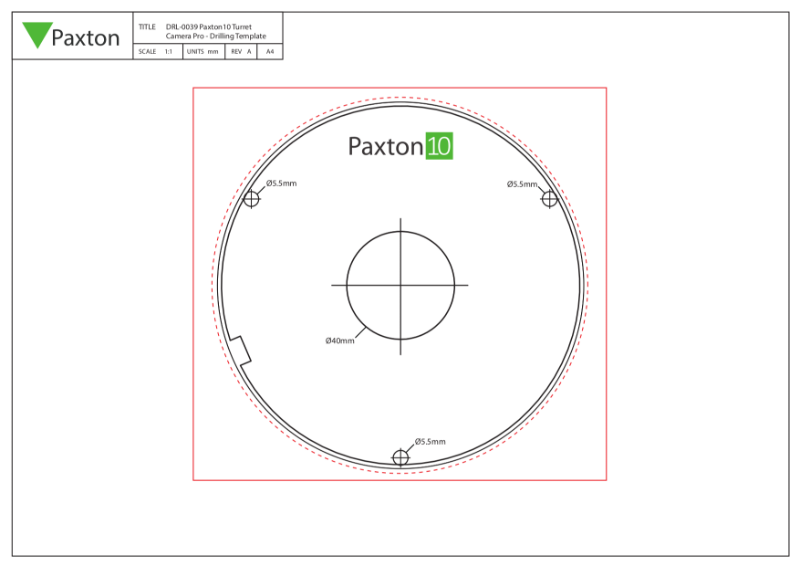

Paxton10 Turret Camera, PRO series - template
Paxton10 system installer guide
Product Catalogue
System Guide
