Paxton10 Turret Camera – CORE Series
Verified by manufacturer 3 days ago
IP, PoE, 4 MP Camera with built in 64 GB SD card, IP67 rated for external use.
Application
Installation – Paxton10 cameras are equipped with the latest technology and video management software, eliminating the need for configuration. The cameras are directly connected to the network and powered via TCP/IP and will be visible in the Paxton10 Software under the devices menu. Add the camera to the system and name it as appropriate. No further configuration is required.
Operation – The Paxton10 cameras support a number of useful video management features, including:
- ‘Live View’ and recorded video.
- Video export.
- High-speed scrubbing.
- Bookmarking.
- Smart search.
Every Paxton10 camera comes with Paxton’s standard five-year guarantee. The plug-and-play hardware requires zero configuration, with immediate automatic recognition within the software, making installation and commissioning simple.
Description
The CORE series provides the specifications required to deliver a simple and scalable system at a competitive price. The 4 MP CORE cameras come with 64 GB of in-built edge storage with a range of other useful features to build your video surveillance solution.
Video is recorded on the camera’s built-in SD card. Video recordings can also be stored on an external network drive. Use the Paxton10 Video Storage Calculator to determine how much storage you will need per camera on your Paxton10 system.
The Paxton10 CORE series cameras come with a 64 GB SD card as standard. Please note, whilst the camera is covered by a five-year guarantee, the SD card is a consumable item and is therefore excluded from the guarantee.
Features and benefits:
- 4 MP ultra-low light sensor capable of high-resolution recording (2560 x 1440).
- 64 GB high performance SD card.
- IP67 rating.
- Mountable on either wall or ceiling.
- Intelligent motion detection.
- Compact size.
- All metal construction.
- 30 m IR range.
- 120 dB Wide dynamic range.
- 12 V d.c. or PoE (af).
- 0.003 lux at f1.4.
- Fixed 2.8 mm focal length.
General information
Color | White Black |
Material | Metal |
Shape | Other |
Length | Bespoke |
Width | 126.3 mm |
Height | 138.3 mm |
Warranty description | Five year |
Uniclass | |
CAWS | W90/170 Surveillance CCTV systems W90/170 Closed-circuit television (CCTV) system |
Product range |
Specification data - Internet protocol (IP) high-speed pan-tilt-zoom (PTZ) cameras
Video system | PAL.NTSC. |
Resolution (minimum) | 4 MP. |
Minimum illumination | 0.003 lux at f1.4. |
Integrated illumination | Infrared with 30 m range. |
Camera functions | |
Wide dynamic range | 120 dB wide dynamic range. |
Day/ night mode switching | Automatic. |
Lens | |
Focal length | 2.8 mm. |
Aperture range | f1.4. |
Angle of view | Horizontal field of view: 103°; Vertical field of view: 55°; Diagonal field of view: 123°. |
Pan-and-tilt function | |
Pan angle | 0–360°. |
Tilt angle | 0–75°. |
Power supply | 12 V d.c.Power over Ethernet (PoE). |
Network connectivity | IP. |
Video compression formats | H.264. |
Integral memory storage (minimum) | 64 GB. |
Camera housing | |
Ingress protection (minimum) | IP67. |
Mounting arrangement | Wall.Ceiling. |
Operating temperature | -30 to 60°C. |
Weight | 620 g. |
Integral accessories | Paxton10 Server. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Metal |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature

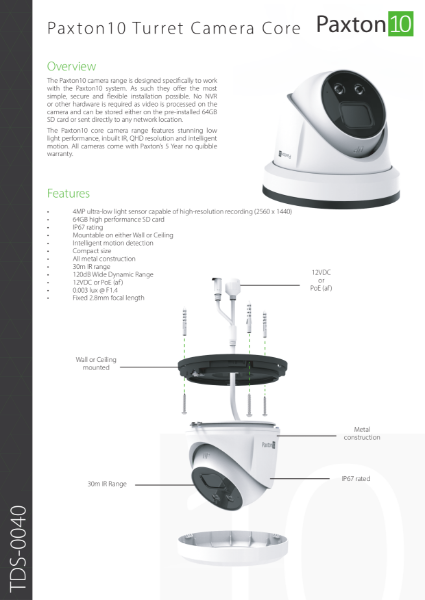

Paxton10 Turret Camera, CORE series - data sheet
Paxton10 Turret Camera, CORE series - instructions

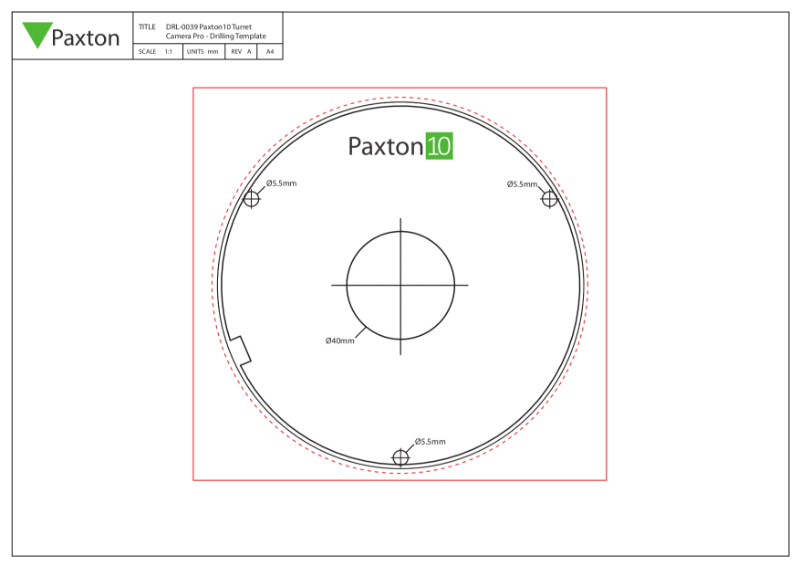

Paxton10 Turret Camera, CORE series - template

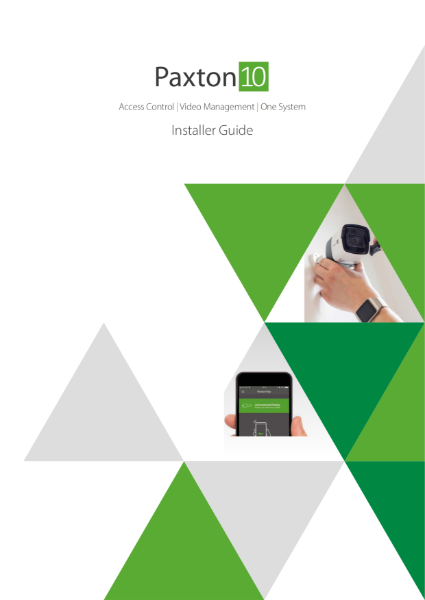

Paxton10 system installer guide
Product Catalogue

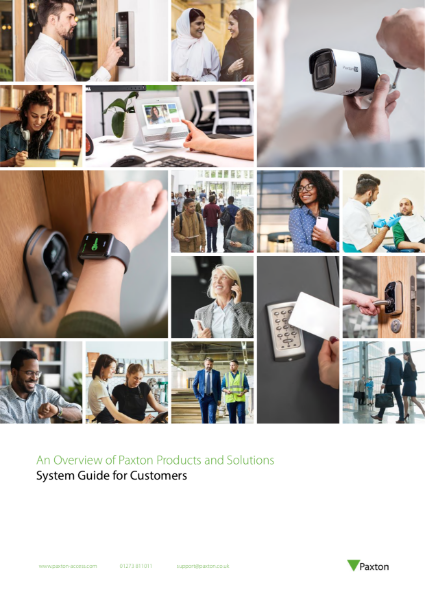

System Guide
