Paxton10 Mini Bullet Camera – PRO Series
Verified by manufacturer 3 days ago
IP, PoE, 8MP Camera with built in 256GB SD card, IP67 rated for external use.
Application
Installation – Paxton10 cameras are equipped with the latest technology and our own video management software, eliminating the need for configuration. The cameras are directly connected to the network and will be visible in the Paxton10 Software under the devices menu. Add the camera to the system and name it as appropriate. No further configuration is required.
Operation – The Paxton10 cameras support a number of useful video management features, including:
- ‘Live View’ and recorded video.
- Video export.
- High-speed scrubbing.
- Bookmarking.
- Smart search.
Every Paxton10 camera comes with Paxton’s standard 5-year hassle free guarantee. The plug-and-play hardware requires zero configuration, with immediate automatic recognition within the software, making installation and commissioning perfectly simple.
Description
The high performance PRO series provides 4K high-resolution video capture and 256 GB of in-built memory to create a professional edge storage solution. Video is recorded on the camera’s built-in SD card. Video recordings can also be stored on an external network drive. Use the Paxton10 Video Storage Calculator to determine how much storage you will need per camera on your Paxton10 system.
The Paxton10 PRO series cameras come with a 256 GB SD card as standard. Please note, whilst the camera is covered by our 5-year warranty, the SD card is a consumable item and is therefore excluded from the guarantee.
Features and benefits:
- 8 MP ultra-low light sensor capable of recording at up to 4K
- 256 GB high performance SD card.
- IP67.
- Mountable on either wall or ceiling.
- All metal construction.
- 40 m IR range.
- 120 dB wide dynamic range.
- 12 VDC or PoE(af ).
- 0.003 lux @ F1.6.
- 2.8 mm.
General information
Color | Black White |
Material | Metal |
Shape | Other |
Length | 171 mm |
Width | 70 mm |
Height | 68 mm |
Warranty description | Five year |
Uniclass | |
CAWS | W90/170 Surveillance CCTV systems W90/170 Closed-circuit television (CCTV) system |
Product range |
Specification data - Internet protocol (IP) bullet cameras
Video system | PAL.NTSC. |
Resolution (minimum) | 360p. |
Minimum illumination | 0.003 lux at f1.6. |
Integrated illumination | Infrared with 40 m range. |
Camera functions | |
Wide dynamic range | 120 dB wide dynamic range. |
Day/ night mode switching | Automatic. |
Lens | |
Focal length | 2.8 mm. |
Aperture range | f1.6. |
Angle of view | Horizontal field of view: 102°; Vertical field of view: 55°; Diagonal field of view: 120°. |
Power supply | 12 V d.c.Power over Ethernet (PoE). |
Network connectivity | IP. |
Video compression formats | H.264. |
Integral memory storage (minimum) | 256 GB. |
Camera housing | |
Ingress protection (minimum) | IP67. |
Mounting | Wall. Ceiling. |
Operating temperature | -30 to 60°C. |
Weight | 500 g. |
Integral accessories | Paxton10 Server. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Metal |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Paxton10 Mini Bullet Camera, PRO series - instructions

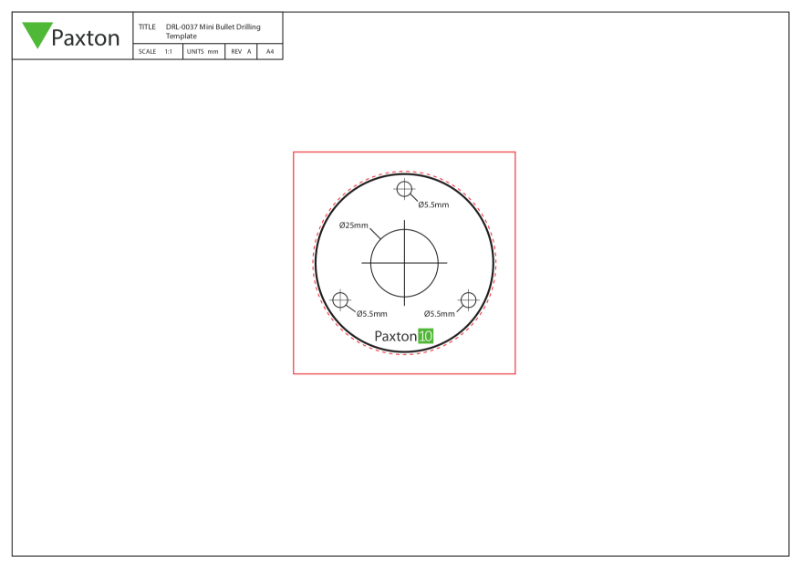

Paxton10 Mini Bullet Camera, PRO series - template
Paxton10 Mini Bullet Camera, PRO series - data sheet
