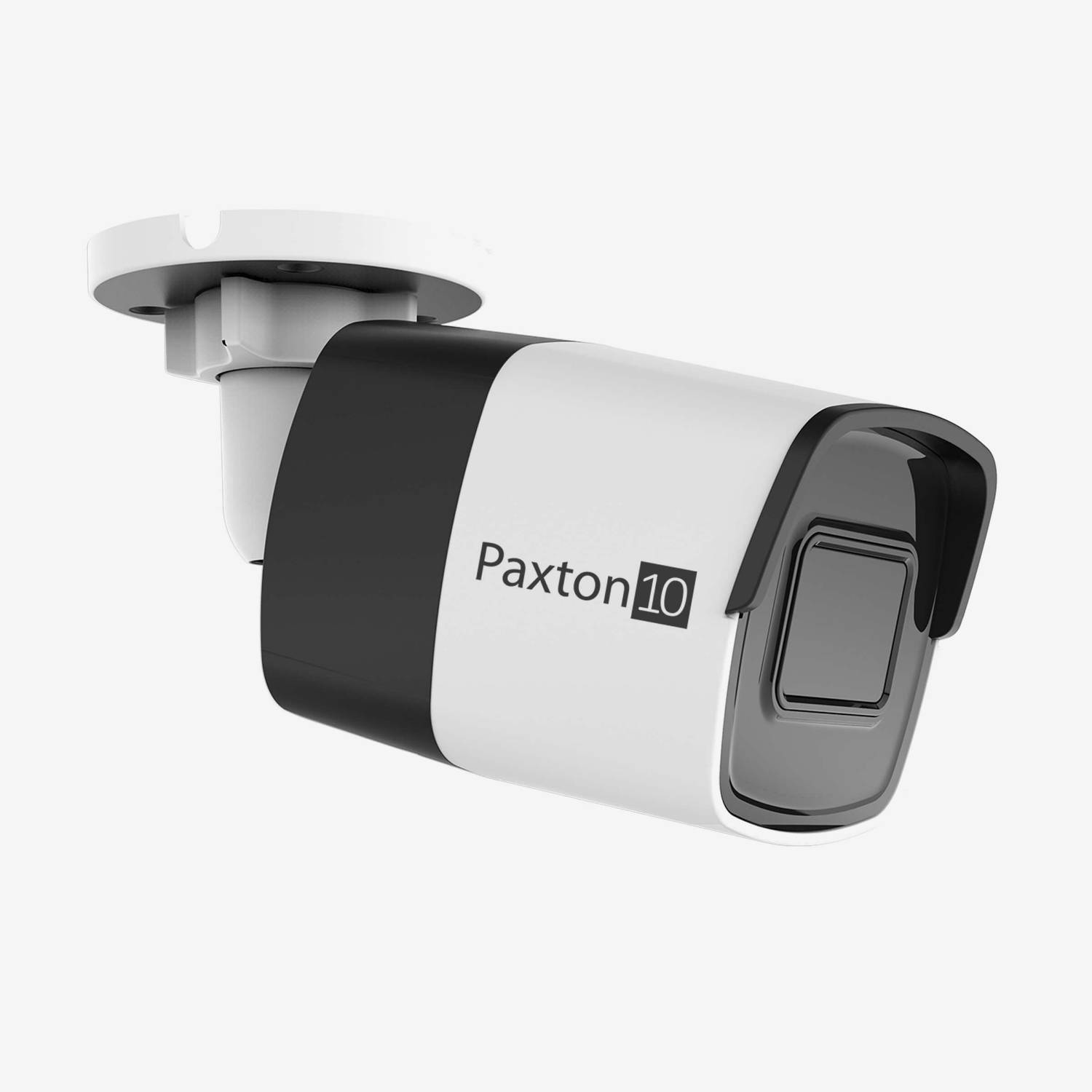

Paxton10 Mini Bullet Camera – CORE Series
Verified by manufacturer 6 days ago
IP, PoE, 4MP Camera with built in 64GB SD card, IP67 rated for external use.
Application
Installation – Paxton10 cameras are equipped with the latest technology and video management software, eliminating the need for configuration. The cameras are directly connected to the network and will be visible in the Paxton10 Software under the devices menu. Add the camera to the system and name it as appropriate. No further configuration is required.
Operation – The Paxton10 cameras support a number of useful video management features, including:
- ‘Live View’ and recorded video.
- Video export.
- High-speed scrubbing.
- Bookmarking.
- Smart search.
Every Paxton10 camera comes with Paxton’s standard five-year guarantee. The plug-and-play hardware requires zero configuration, with immediate automatic recognition within the software, making installation and commissioning simple.
Description
The CORE series provides the specifications required to deliver a simple and scalable system at a competitive price. The 4 MP CORE cameras come with 64 GB of in-built edge storage with a range of other useful features to build your video surveillance solution.
Video is recorded on the camera’s built-in SD card. Video recordings can also be stored on an external network drive. Use the Paxton10 Video Storage Calculator to determine how much storage you will need per camera on your Paxton10 system.
The Paxton10 CORE series cameras come with a 64 GB SD card as standard. Please note, whilst the camera is covered by a five-year guarantee, the SD card is a consumable item and is therefore excluded from the guarantee.
Features and benefits:
- 4 MP ultra-low light sensor capable of high-resolution recording (2560 × 1440).
- 64 GB high performance SD card.
- IP67 rating.
- Mountable on either wall or ceiling.
- Intelligent motion detection.
- 40 m IR range.
- 120 dB wide dynamic range.
- 12 V d.c. or PoE (af).
- 0.003 lux @ f1.4.
- Fixed 2.8 mm focal length.
General information
Color | Black White |
Material | Metal |
Shape | Other |
Length | 191 mm |
Width | 72.9 mm |
Height | 73.3 mm |
Warranty description | Five year |
Uniclass | |
CAWS | W90/170 Surveillance CCTV systems W90/170 Closed-circuit television (CCTV) system |
Product range |
Specification data - Internet protocol (IP) bullet cameras
Video system | PAL.NTSC. |
Resolution (minimum) | 4 MP. |
Minimum illumination | 0.003 lux at f1.4. |
Integrated illumination | Infrared with 40 m range. |
Camera functions | |
Wide dynamic range | 120 dB wide dynamic range. |
Day/ night mode switching | Automatic. |
Lens | |
Focal length | 2.8 mm. |
Aperture range | f1.4. |
Angle of view | Horizontal field of view: 103°; Vertical field of view: 55°; Diagonal field of view: 123°. |
Power supply | 12 V d.c.Power over Ethernet (PoE). |
Network protocols | TCP/ IP. |
Video compression formats | H.264. |
Integral memory storage (minimum) | 64 GB.Guidance for specification option: Supplied with 64 GB SD card. Can take up to 512 GB SD card. |
Camera housing | |
Ingress protection (minimum) | IP67. |
Mounting | Wall. Ceiling. |
Operating temperature | -30 to 60°C. |
Weight | 590 g. |
Integral accessories | Paxton10 Server. Paxton10 door controller. Guidance for specification option: Required to be on the same network. |
Sustainability data
Country of product manufacture | China |
Material | Metal |
Recyclability | WEE |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Paxton10 Mini Bullet Camera, CORE series - data sheet
Paxton10 Mini Bullet Camera, CORE series - instructions
Paxton10 Mini Bullet Camera, CORE series - template
Paxton10 system installer guide
Product Catalogue
System Guide
