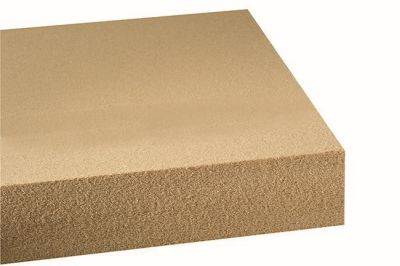

Pavatex Pavatherm
Verified by manufacturer 6 months ago
EPD
Certificate type
High-performance, vapour-permeable and pressure-resistant insulation board.
Application
The board is universal and multifunctional suitable in the roof, the wall, the facade and the floor.
Description
A high-performance pressure-resistant, vapour permeable, natural and ecological thermal insulation board based on wood fibre. The board edges from 140 mm thickness have a rebated finish to avoid thermal bridges. The board has excellent sound insulation properties due to the porous structure.
Features and benefits:
- Pressure-resistant, universal and multifunctional.
- Excellent at insulating against thermal losses in winter and heat transmittance in the summer.
- Possesses excellent sound-insulation properties.
- CE marked.
General information
Material | Wood fibre |
Shape | Rectangle |
Length | 1100 mm |
Width | 600 mm |
Uniclass | |
CAWS | P10/10 Loft insulation P10/125 Insulation laid between ceiling ties/ joists P10/140 Insulation fitted between rafters P10/15 Insulation fitted between rafters P10/165 Insulation to eaves P10/170 Insulation to loft access hatches P10/185 Soffit insulation P10/20 Insulation to loft access hatches P10/212 Insulation fixed across inner face of stud walling P10/217 Insulation slabs fixed to backing wall P10/220 Sound insulation within timber framed separating wall P10/240 Insulation fitted between floor joists P10/250 Insulation supported between floor joists P10/40 Insulation fitted betweenor to the face ofstuds P10/42 Mineral wool insulation slabs fixed to backing wall P10/45 Insulation laid between floor joists P10/50 Insulation supported between joists |
Product range |
Specification data - Wood fibre batt insulation
Classification data | |
Thickness | 40 mm. Guidance for specification option: Straight edges, 1.05 m²K/W thermal resistance. 60 mm. Guidance for specification option: Straight edges, 1.55 m²K/W thermal resistance. 80 mm. Guidance for specification option: Straight edges, 2.1 m²K/W thermal resistance. 100 mm. Guidance for specification option: Straight edges, 2.6 m²K/W thermal resistance. 120 mm. Guidance for specification option: Straight edges, 3.15 m²K/W thermal resistance. 140 mm. Guidance for specification option: Rebated edges, 3.65 m²K/W thermal resistance. 160 mm. Guidance for specification option: Rebated edges, 4.2 m²K/W thermal resistance. 180 mm. Guidance for specification option: Rebated edges, 4.7 m²K/W thermal resistance. 200 mm. Guidance for specification option: Rebated edges, 5.25 m²K/W thermal resistance. 220 mm. Guidance for specification option: Rebated edges, 5.75 m²K/W thermal resistance. 240 mm. Guidance for specification option: Rebated edges, 6.3 m²K/W thermal resistance. |
Density | 110 kg/m³. |
Thermal conductivity (maximum) | 0.038 W/mK. |
Fire performance | To BS EN 13501–1, Class E. |
Specific heat | 2100 J/kgK. Guidance for specification option: Capacity. |
Water vapour diffusion resistance | 3 μ. |
Compressive Strength (at 10% deformation) | 50 kPa. |
Tensile strength (minimum) | 2.5 kPa. Guidance for specification option: Perpendicular to faces. |
Sustainability data
Material | Wood fibre |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Certified | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m³) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : -253 | |
Product certifications
Product certifications
EPD
PAVATEX Dry process wood fibre insulation EPD
