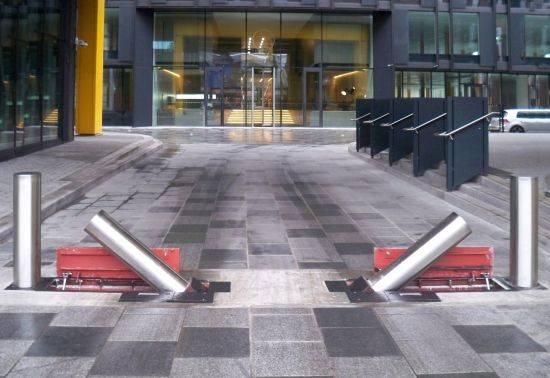

PAS 68 HVM Automatic Rising Terra Quantum Bollard – 7.5t at 30 mph - Side folding HVM Rising Bollard
Verified by manufacturer 3 months ago
Secured By Design
Certificate type
PAS 68 HVM automatic rising bollard – 7.5t at 30 mph. Impact rated
Application
Suitable for the public realm, crowded places and pedestrian areas where vehicles are not permitted. Terra bollards have been proven to stop vehicles, providing HVM, counter-terrorist, impact-resistant barriers preventing vehicle as a weapon attacks.
Description
The Terra Quantum bollard is a shallow depth, side-folding retractable hostile vehicle mitigation (HVM) Terra bollard that has been successfully impact tested to PAS 68, stopping a 7.5 tonne vehicle travelling at 30 mph with zero penetration.
The retractable bollard is automatic and twinned with a static unit. It also has a locking pin within the bollard enclosure that can be padlocked.
For PAS 68 impact-tested bollards to be installed in accordance with PAS 69, bollards should be installed with 1200 mm between upright bollard faces. Two Terra Quantum bollards back to back form a 4 m clear aperture.
The system includes a hydraulic control cabinet, which is recommended to be installed within 10 m of the bollard system. Safety system options available depending on individual site risk assessments.
Features and benefits:
- Hydraulically driven HVM bollard.
- Designed for ease of installation and maintenance.
- Lifted height: 925mm
- IWA 14 tested dimensions: Lift height 925 mm.
- All made to order. Hold to run operation only.
- Compliant with BS EN 13849, A PSSA Verified Product, Secured by Design.
- Included on the CPNI List of IWA 14 and PAS 68 products.
- PAS 68 Classification Code: V/7500[N2]/48/90:0.0/1.5.
- Non-powered Terra Quantum Bollard also available.
General information
Color | Manufacturer guidanceAny RAL colour. |
Finish | Painted |
Material | Steel Stainless steel |
Shape | Other |
Width | 219 mm |
Height | 925 mm |
Warranty description | One year |
Uniclass | |
CAWS | Q50/30 Street furniture Q50/194 Retracting bollards |
Product range |
Specification data - Carbon steel rising bollards
Standard | In accordance with PAS 68. |
Automation | |
Method of operation | Hydraulic with manual override. |
Electrical supply | Manufacturer guidanceThree phase. |
Controllers | Hold to run. |
Dimensions | |
Size and profile | 219 mm diameter. |
Height | 925 mm.Guidance for specification option: Lifted height/ height above ground. |
Top profile | Flat. |
Base | Coffin. |
Finishes | |
Worked finish | Shot blasted. |
Applied finish | Painted finish.Guidance for specification option: Hot zinc sprayed, primed and finished with a final coat of paint to RAL number. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493. |
Colour | Manufacturer guidanceInsert RAL colour requirement. |
Accessories | None.100 mm diameter red/ green LED traffic light head with monitored safety circuit.Anti-tamper alarms.Biodegradable oil.High security cabinet.Manual hand pump.Warning sign. |
Access control | Local key switch. Hold-to-run VHF. Remote push buttons. Guidance for specification option: Remote push buttons are only suitable when they are within close proximity to the bollards with a clear line of sight. |
Actuation/ Safety | Audible alarms. Flashing beacons. Hydraulically driven. Induction loop/ Vehicle detector loop system. Laser. |
Post foundations | 450 mm deep. |
Power fail operation | Manual hand pump. Guidance for specification option: Standard. |
Reflective banding | None. Recessed/ Surface. Single/ Double. |
Sleeve | Not required. Stainless steel, 1.4303 (308) grade. Stainless steel, 1.4401 (316) grade. Stainless steel, bead blasted. Manufacturer guidanceFinish option: Stainless steel clad. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Steel Stainless steel |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Third party certifications
Secured By Design
Secured by Design accredited
Literature
IWA 14 & PAS 68 Terra Bollards
HVM Terra Bollards - Rising & Static - IWA14 & PAS68
PAS 68 Terra Quantum Bollard
