PAS 68 HVM Removable Static Terra Bollards
Verified by manufacturer 3 months ago
Secured By Design
Certificate type
PAS 68 HVM removable static bollards. Impact rated
Application
Anti Terrorist Removable Static Bollards where the bollards would have a requirement to be removed to provide temporary access
Description
PAS 68 HVM Removable Static Terra Bollards:

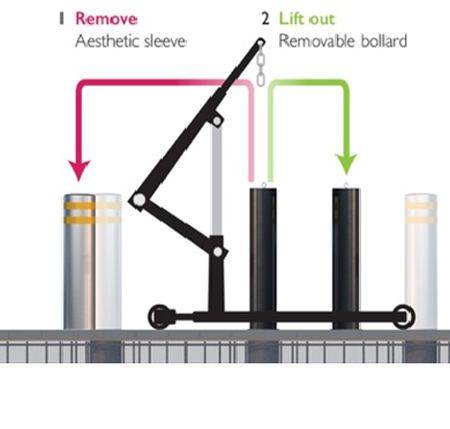

- Suitable for high security sites where a complete hostile vehicle mitigation (HVM) perimeter is required, public realm, crowded places and Pedestrian areas where vehicles are not permitted. Removable static HVM bollards are also used between automatic HVM products to ensure the installation meets PAS 69 installation guidance of 1.2 m maximum distance between upright faces. Removable bollards removed using special hoist.
- A range of sleeves finishes and tops are available.
- Static HVM Terra bollards have been proven to stop vehicles, providing HVM, counter terrorist, impact-resistant barriers preventing vehicle as a weapon attack.
- All made to order. A PSSA Verified Product, Secured by Design and are listed on the CPNI List of IWA 14 and PAS 68 products.
- PAS 68 HVM Removable Static Terra Jupiter Bollard - 7.5t at 50 mph:
- The Removable Static Terra Jupiter Bollard is an HVM Terra bollard that has been impact tested to the British PAS 68 Specification, stopping a 7.5t vehicle travelling at 50 mph.
- PAS 68 Classification Code: V/7500[N3]/80/90:10.5/11.1. Impact tested in a set of three bollards.
- PAS 68 HVM Removable Static Terra Mars Bollard - 7.5t at 30 mph:
- The Removable Static Terra Mars Bollard is an HVM Terra bollard that has been impact tested to the British PAS 68 Specification, stopping a 7.5t vehicle travelling at 30 mph.
- PAS 68 Classification Code: V/7500[N2]/64/90:4.0/16.7. Impact tested in a set of three bollards.
- PAS 68 HVM Removable Static Terra Neptune Bollard - 7.5t at 40 mph:
- The Removable Static Terra Neptune Bollard is an HVM Terra Bollard that has been impact tested to the British PAS 68 Specification, stopping a 7.5t vehicle travelling at 40 mph.
- PAS 68 Classification Code: V/7500[N2]/64/90:3.3/0.0. Impact tested in a set of three bollards.
- PAS 68 HVM Removable Static Terra Venus Bollard - 7.5t at 30 mph:
- The Removable Static Terra Neptune Bollard is an HVM Terra Bollard that has been impact tested to the British PAS 68 Specification, stopping a 7.5t vehicle travelling at 30 mph. Height above ground 1000 mm.
- PAS 68 Classification Code: V/7500[N2]/48/90:0.0/0.0. Impact tested in a set of three bollards.
General information
Color | Manufacturer guidanceInsert RAL colour requirement. |
Finish | Painted |
Material | Steel Guidance for specification option: Core: Mild (carbon) steel. |
Height | 1000 mm |
Warranty description | One year |
Uniclass | |
CAWS | Q50/196 Removable bollards Q50/30 Street furniture |
Product range |
Specification data - Carbon steel rising bollards
Standard | In accordance with PAS68 IWA14-1. |
Automation | |
Method of operation | Manual. |
Electrical supply | Not required. |
Controllers | Not required. |
Dimensions | |
Size and profile | 273 mm diameter. |
Height | 1000 mm.Guidance for specification option: Lifted height/ height above ground. |
Top profile | Flat.Mitre.Semi-domed. |
Base | 750 mm. |
Finishes | |
Worked finish | Shot blasted. |
Applied finish | Polyester powder coated.Guidance for specification option: Shot blasted, hot zinc sprayed, primed polyester powder coated to RAL number. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493. |
Colour | Manufacturer guidanceInsert RAL requirement. |
Accessories | None.Hoist.Removable socket. |
Sleeve | Stainless Steel 1.4303 (308) grade. Stainless Steel 1.4401 (316) grade. Stainless steel bead blasted. |
Reflective banding | None. Recessed/ Surface. Single/ Double. |
Post foundations | 750 mm. |
Type | PAS 68 Removable Static Terra Jupiter Bollard – 7.5t at 50 mph. PAS 68 Removable Static Terra Mars Bollard – 7.5t at 40 mph. PAS 68 Removable Static Terra Neptune Bollard – 7.5t at 40 mph. PAS 68 Removable Static Terra Venus Bollard – 7.5t at 30 mph. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Third party certifications
Secured By Design
Secured by Design accredited
