Application

Suitable for floors, walls, and for use with underfloor heating.

Description

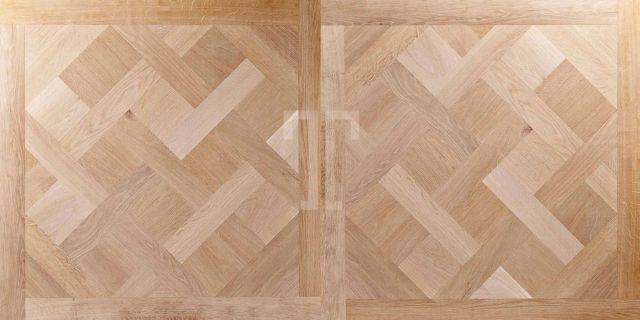

Engineered wood flooring, for laying in a parquet de Versailles format.

Features and benefits:

  • Part of the PARQUETRY collection; consult manufacturer's literature for other formats.
  • EU Timber Regulation (EUTR) compliant.
  • Can be fully bonded to subfloor (with Ted Todd MS Flex high strength adhesive).

Applications:

Suitable for floors, walls, and for use with underfloor heating.

- Can be installed over:

  • Concrete (dry, flat).
  • Plywood.
  • Screed (dry, flat; manufacturer recommends Primerfast moisture barrier).

Related products:

A range of complementary products is available, including formed treads and risers, L-sections, T-sections, reducers, scotia, skirting and architraves. Consult manufacturer for details.

Guarantee:

25-year product warranty.

General information
Uniclass 2015
Mosaic panels (Pr_35_93_97_52)Primary
Specification data - Mosaic panels
Product Reference

PARQUETRY Collection - Parquet De Versailles

Type

Coronet

Hermit

Hillstar, prime grade

Hillstar, nature grade

Jacobin

Standard product features

Technical characteristics:

  • Length: 980 mm.
  • Width: 980 mm.
  • Construction: Two ply engineered, 100% hardwood.
  • Wear layer: 6 mm hardwood (nominal).
  • Certification: PEFC 70%.
  • Tolerance: ±0.50 mm/ 95% in tolerance.
  • Moisture content: 8–12% fair and average.
  • Fire rating to EN 13501-1 (flooring): D fl - s1.
  • Emissions to EN 14342: E1.
  • Humidity requirements: Between 40% and 60% relative humidity.
  • Formaldehyde emission: E1.
  • Thermal conductivity: 0.10 m²K/W (1.0 Tog).
  • Tonal variation: Medium natural.

Product Options

Type:

- Coronet:

  • Thickness: 20 mm.
  • Wood species: American black walnut.
  • Grade: Prime.
  • Surface texture: Delicately smooth.
  • Finish: Burnished hardwax oil.
  • Edge detail: Hand rolled edges.
  • Profile: Groove to all sides.
  • Slip rating: Dry: Low risk; Wet: moderate risk.
  • Janka hardness rating: 1010 lbf (4500 N).
  • Batch variation: Not advised to mix batches in one floor area.
  • Tone: Dark.

- Hermit:

  • Thickness: 20 mm.
  • Wood species: European oak.
  • Grade: Nature.
  • Surface texture: Smooth.
  • Finish: Unfinished, site preparation required.
  • Edge detail: Square shouldered.
  • Profile: Tongue and grooved to all sides.
  • Janka hardness rating: 1120 lbf (4980 N).
  • Batch variation: Mix batches randomly whilst installing.
  • Tone: Light.

- Hillstar, prime grade:

  • Thickness: 20 mm.
  • Wood species: European oak.
  • Grade: Prime.
  • Surface texture: Smooth.
  • Finish: Unfinished, site preparation required.
  • Edge detail: Square shouldered.
  • Profile: Tongue and grooved to all sides.
  • Janka hardness rating: 1120 lbf (4980 N).
  • Batch variation: Mix batches randomly whilst installing.
  • Tone: Light.

- Hillstar, nature grade:

  • Thickness: 20 mm.
  • Wood species: European oak.
  • Grade: Nature.
  • Surface texture: Smooth.
  • Finish: Unfinished, site preparation required.
  • Edge detail: Square shouldered.
  • Profile: Tongue and grooved to all sides.
  • Certification: FSC Mix Credit.
  • Janka hardness rating: 1120 lbf (4980 N).
  • Batch variation: Mix batches randomly whilst installing
  • Tone: Light.

- Coronet:

  • Thickness: 21 mm.
  • Wood species: European oak.
  • Grade: Nature.
  • Surface texture: Medium brushed.
  • Finish: Restoration oil.
  • Edge detail: Square shouldered.
  • Profile: Tongue and grooved to all sides.
  • Slip rating: Dry: Low risk; Wet: moderate risk.
  • Janka hardness rating: 1120 lbf (4980 N).
  • Batch variation: Not advised to mix batches in one floor area.
  • Tone: Mid.
