Palisade fencing certified by SBD
Application
Suitable for areas that require a robust alternative to traditional front fix Palisade including Schools, Rail, industrial and commercial premises.
Description

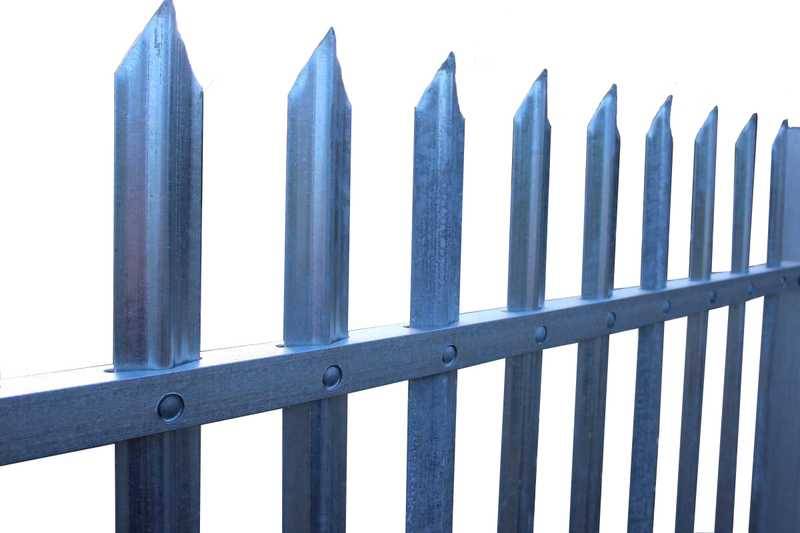

The first Palisade fence to gain Secured By Design accreditation, Lochrin Combi Palisade is a robust and resilient palisade design that sees vertical pales pass through the rails rather than bolt to the front face making the product a more robust and secure design which is an effective deterrent against vandalism and crime.
Our specifications include Network Rail, National Grid, Scottish Power and SSE. The fencing is supplied in kit form for ease of installation, with the design allowing the fence to follow the contour of the ground.
Features and benefits:
- Quick and simple installation.
- 25 Year design life guarantee available
- Panels designed to follow ground contour and rake.
- 'D' Section pales can be manufactured in 3 and 4 mm.
- Heights of 1.2–4.5 m.
- Suitable for boundary security, schools, allotments, industrial units, railways and utility compounds.
General information
Finish | Galvanized Guidance for specification option: Hot dipped galvanized to BS EN ISO 1461. Powder-coated Guidance for specification option: Galvanized and powder coated (RAL). |
Material | Steel |
Shape | Rectangle |
Length | 2.75 mm |
Width | Bespoke |
Height | 0.9 mm 1.2 mm 1.5 mm 1.8 mm 2 mm |
Warranty description | 20 year |
Uniclass | |
CAWS | Q40/350 Steel palisade fencing |
Specification data - Steel palisade panel fencing systems
Standard | To BS 1722-12. |
Posts | 102 x 44 RSJ.127 x 76 UB.152 x 89 UB. |
Post foundations | Guidance for specification option: Foundation guidelines available in BS 1722-12. |
Panels | 2.75 m.Guidance for specification option: Wide as standard. |
Fence topping | Guidance for specification option: Security toppings available; consult manufacturer and insert requirements. |
Site applied finishes | Galvanized.Galvanized and powder coated (RAL). |
System accessories | Guidance for specification option: Consult manufacturer and insert requirements. |
Height | 0.9 m. 1.2 m. 1.5 m. 1.8 m. 2.0 m. |
Fixings | Security bolt with shear nut. |
Pales | 'D' Section profile, 3 mm. 'D' Section profile, 4 mm. |
Heads | Pointed. Rounded. Rounded and notched. Triple pointed. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | All components can be fully recycled at end of life. Manufacturer guidanceProduct can be fully recycled at end of life. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 80 % Manufacturer guidanceManufactured from recycled material. |
Case studies
Distribution HQ: Combi Palisade SL1
