Lochrin Combi™ SL2 - SR2 Palisade Fencing - Fencing

Verified by manufacturer 8 months ago

Lochrin Bain Limited

High Security palisade fence based on the traditional Combi™ design.

Jump to:
+44 (0)1236 457333 Website

Application

Suitable for use in secure establishments including government and secure sites, utility suppliers and infrastructure projects.

Description

An SR2 rated fence system, developed using the Combi™ design with the addition of some new high security features, allowing the fence to offer the same attack delay times as other systems at this level, with a product that is not only cost effective, but that requires no specialist tooling or training, developed with simplicity in mind for the installers and security and aesthetics for the client.

The system is ‘Secured By Design’ and conforms to BS 1722-12:2016 carrying full certification to LPS 1175 Security Rating B3 Issue: 8 as featured in the BRE Red Book. LPS 1175 is the requirements and testing procedures for LPCB approval. ‘LPS’ stands for ‘Loss Prevention Standard’ and LPS 1175 is one of many standards by the LPCB ‘Loss Prevention Certificate Board.

The LPS 1175 standard focuses on physical security including security fencing, with ratings split into different security ratings, with test requirements of ascending intensity. These are measured in terms of attack tools and also time available to the attacker. Once tested and approved, security rated products are entered into the LPCB Redbook, which is a key reference for specifiers, regulators, designers and end users to select products according to the risks that they and their property face.


Features and benefits:

  • Full certification to LPS 1175 Security Rating B3 Issue:8.
  • Full certification to Secured by Design – a Police preferred specification.
  • The Unique Counter Bored bolt fixing of pales.
  • Pales that pass through the rails, offering an unmoveable pale.
  • Heights from 2.4–3.0 m.
  • Panels designed to rake to uneven ground conditions without onsite work being required.
  • Compatible with Electric Fencing and Perimeter Intruder Detection, CCTV to give maximum security.

General information

Finish

Galvanized

Guidance for specification option:

Hot dipped galvanized to BS EN ISO 1461.

Powder-coated

Guidance for specification option:

Galvanized and powder coated (RAL).

Material

Steel

Shape

Rectangle

Length

2.75 mm

Width

Bespoke

Height

2.4 mm

2.7 mm

3 mm

Warranty description

-

Manufacturer guidance

25 to 40 year design life guarantee available.

Uniclass

Ss_25_14_08_85 Steel palisade panel fencing systemsPrimary

CAWS

Q40/350 Steel palisade fencing

Specification data - Steel palisade panel fencing systems

Standard

To BS 1722-12.

Posts

127 x 76 UB.

152 X 89 UB.

Post foundations

Foundation guidelines available in BS 1722-12.

Panels

2.75 m.

Guidance for specification option:

(wide), as standard.

Fence topping

Guidance for specification option:

Security toppings available; consult manufacturer and insert requirements.

Site applied finishes

Galvanized.

Galvanized and powder coated (RAL).

System accessories

Guidance for specification option:

Consult manufacturer and insert requirements.

SecurityRating

Certified to LPS 1175 Issue: 8 Security Rating B3 (SR2)/ Secured By Design.

Height

2.4 m.

2.7 m.

3.0 m.

Pales

3 mm.

Guidance for specification option:

'D' section profile.

4 mm.

Guidance for specification option:

'D' section profile.

Heads

Guidance for specification option:

A selection of heads available, consult the manufacturer and insert requirements.

Fixing

Unique Patented vee slot design and countersunk security bolt with shear nut.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

All components can be fully recycled at end of life.

Manufacturer guidance

Product can be fully recycled at end of life.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

80 %

Manufacturer guidance

Manufactured from recycled material.

Case studies

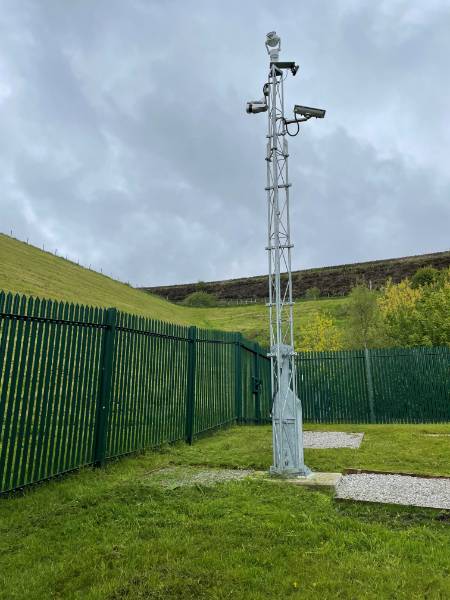

Water Treatment Works: Security Upgrade
