P77 Aluminium Security Shutter
Verified by manufacturer 3 months ago

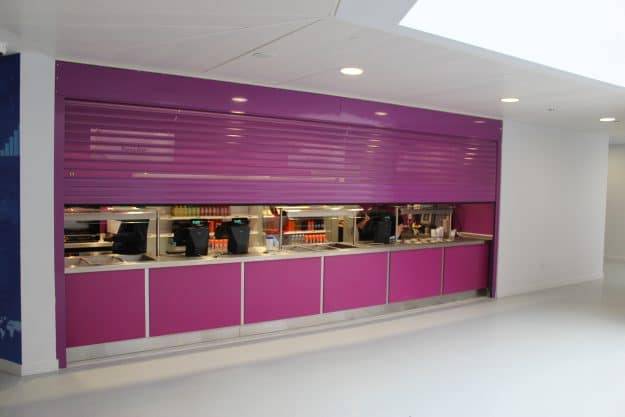

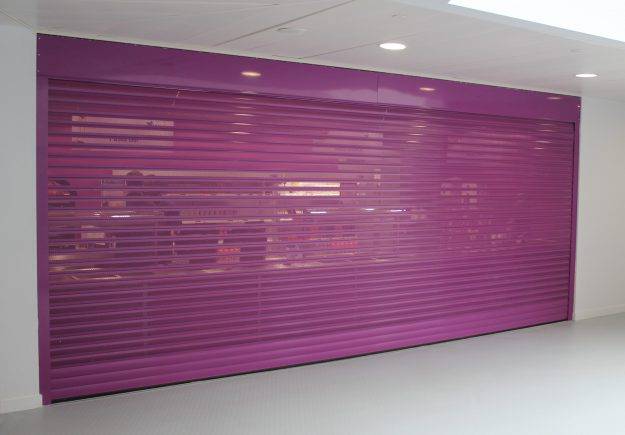

Aluminium security roller shutters with perforations and 77 mm high slats.
Application
Windows, doors and openings in domestic and commercial uses.
Description
Double-skinned aluminium security roller shutters with 77 mm high slats, available with solid, punched and perforated profiles. The shutters can span up to 6.5 m in width and an area up to 25 m².
General information
Color | White Brown Other |
Material | Aluminium |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | L20/60 Doors L20/610 Roller shutters/ curtains |
Product range |
Specification data - Roller shutters
Opening sizes | 6000 x 4000 mm.Guidance for specification option: Available up to 6000 x 4000 mm (w x h). Manufacturer guidanceEnclosure size (internal face fix): Dependent on overall height (top of box):
|
Arrangement | Vertical, external face fix.Vertical, internal face fix.Vertical, reveal fix. |
Shutter curtain. | |
Lath material | 18.5 mm thick double-skinned extruded aluminium, 77 mm in height. |
Finish and colour | Brown.Guidance for specification option: Standard colour. White.Guidance for specification option: Standard colour. BS.Guidance for specification option: Insert colour requirement. RAL.Guidance for specification option: Insert colour requirement. |
Frame and guides | |
Material | Enclosure: Roll formed aluminium with pressure-moulded aluminium alloy end caps. Guide channels: Extruded aluminium. Bottom slat: Extruded aluminium with brush and rubber weather seals. |
Colour | Brown.Guidance for specification option: Standard colour. White.Guidance for specification option: Standard colour. BS.Guidance for specification option: Insert colour requirement. RAL.Guidance for specification option: Insert colour requirement. |
Operation | |
Mode | Electric.Guidance for specification option: Standard. Manual, cord belt.Manual, rod and crank.Manual, spring and lock.Manufacturer guidanceElectric shutters are supplied with a single phase tubular motor with internal rocker or external key switch as standard. Numerous control option variants such as group, remote or mobile phone activation are available. |
Accessories | None.Manual override facility.Polycarbonate infills.Guidance for specification option: Available with V77 only. |
Guide channel depth | 70 mm. 90 mm. 150 mm. |
Sustainability data
Country of product manufacture | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
 DWG | - | 1 |
Literature

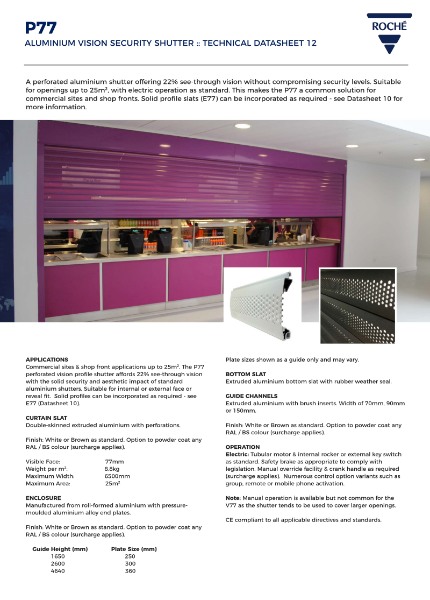

P77 Security Shutter Datasheet
Commercial Security Shutters
Commercial Security Solutions
