P76 SR1 Elite Perforated Steel Security Shutter
Verified by manufacturer 11 days ago
Secured By Design
Certificate type
QA Certificate
Certificate type
LPCB SR1 insurance approved perforated single skin steel security roller shutter.
Application

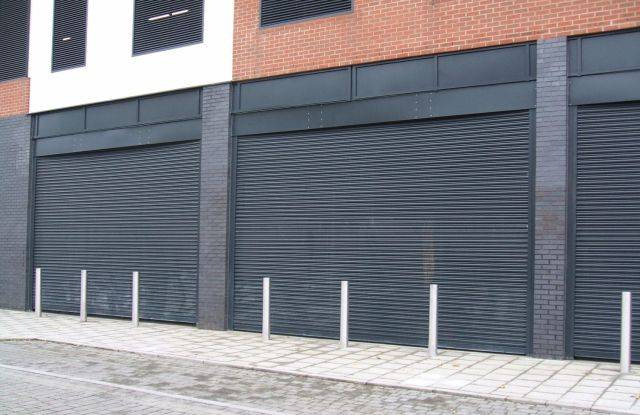

Suitable for commercial sites and shopfronts that require high security.
Description
High security single skin steel roller shutter with 76 mm high perforated slats.
Features and benefits:
- Tested by the Loss Prevention Certification Board (LPCB) to LPS 1175 SR1 and awarded insurance approved 'Secured by Design' status.
- Span up to 7m width and an area up to 72m².

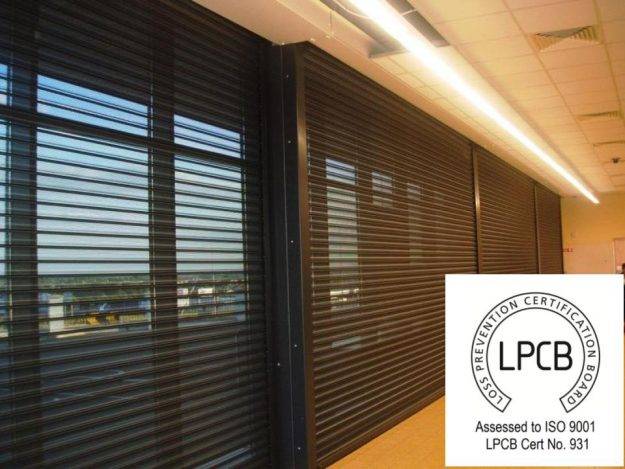

- Available with perforated profiles providing 22% see-through vision.
General information
Finish | Galvanized Plastisol Powder-coated |
Material | Steel |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | L20/60 Doors L20/610 Roller shutters/ curtains |
Product range |
Specification data - Roller shutters
Opening sizes | 7000 x 7000 mm.Guidance for specification option: Available up to 7000 x 7000 mm (w x h). Manufacturer guidanceEnclosure size (internal face fix): Dependent on height.
|
Arrangement | Vertical, external face fix.Vertical, internal face fix.Vertical, reveal fix. |
Shutter curtain. | |
Lath material | Galvanized steel.Guidance for specification option: Single skin curved steel, 76 mm in height. 0.7, 0.9 or 1.2 mm wall thickness, dependent on overall width. |
Finish and colour | Galvanized.Guidance for specification option: Standard. Plastisol coated, BS.Guidance for specification option: Insert colour requirement. Plastisol coated, RAL.Guidance for specification option: Insert colour requirement. Polyester powder coated, BS.Guidance for specification option: Insert colour requirement. Polyester powder coated, RAL.Guidance for specification option: Insert colour requirement. |
Frame and guides | |
Material | Steel.Guidance for specification option: Enclosure: Roll formed steel with end plates. Guide channels: 65 mm deep steel. Bottom slat: Steel with brush and rubber weather seals. |
Finish | Galvanized.Guidance for specification option: Standard. Powder coated.Guidance for specification option: Insert colour requirement below. |
Colour | Not required.Guidance for specification option: Galvanized. Powder coated - RAL.Guidance for specification option: Insert RAL colour code. Powder coated - BS.Guidance for specification option: Insert BS colour code. |
Operation | |
Mode | GfA three phase motor with push button control.NRG Economy tubular motor with internal rocker or external key switch.Manufacturer guidanceNumerous control option variants such as group, remote or mobile phone activation are available. |
Accessories | None.Crank handle.Manual override facility. |
Weight | 8-19 k.g./m². |
Sustainability data
Country of product manufacture | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 DWG | - | 1 |
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
Secured By Design

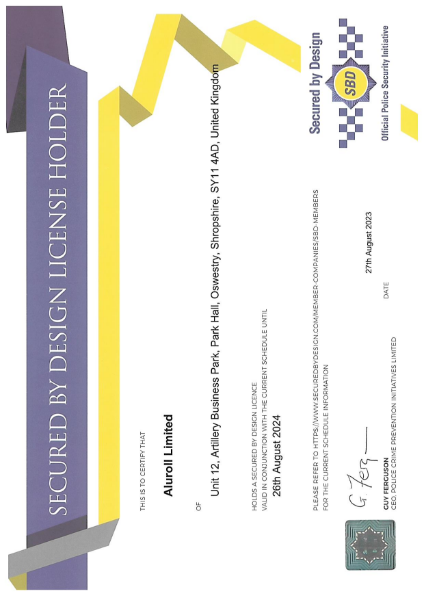

Secured by Design - certficate
QA Certificate

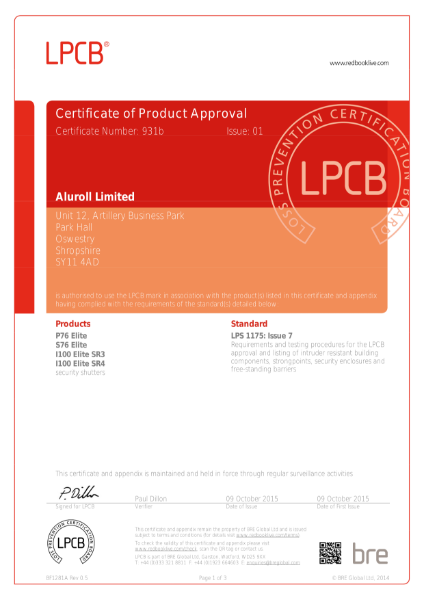

LPCB LPS 1175 issue 7
Literature
LPCB (Loss Prevention Certification Board) Shutters
Commercial Security Shutters
Commercial Security Solutions

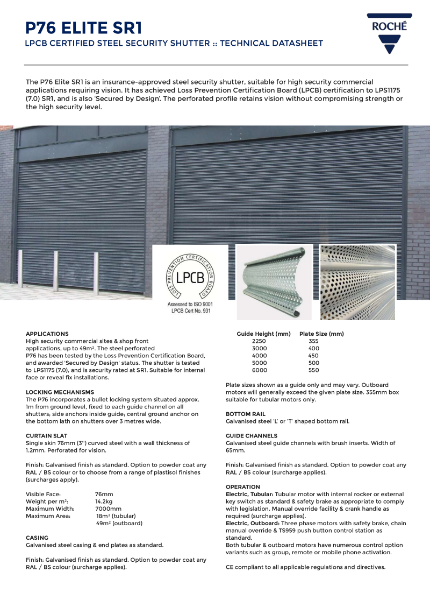

P76 Elite SR1 Datasheet
