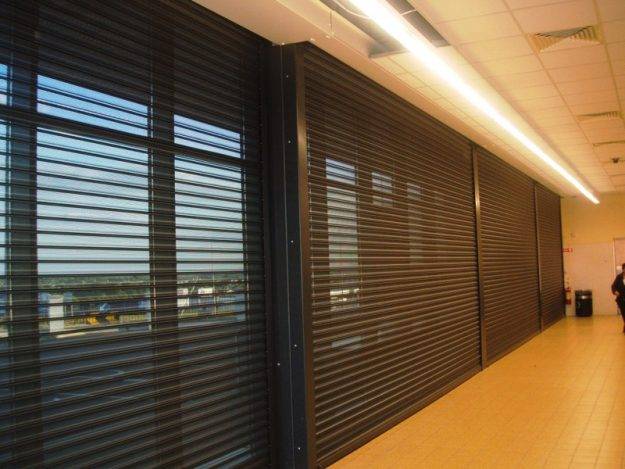

P76 Perforated Steel Security Shutter

Verified by manufacturer 13 days ago

Steel

Roché Systems Ltd Variant:

Single skin curved steel roller shutters with 76 mm high slats.

Jump to:
BOS
 03330347967 Website

Application

Windows, doors and openings in commercial and industrial uses.

Description

Single skin curved steel roller shutters with 76 mm high slats, available with solid, punched and perforated profiles. Punched and perforated slats can be incorporated as required for full or partial vision. The shutter can span up to 12m in width and an area up to 50 m².

General information

Finish

Galvanized

Powder-coated

Plastisol

Material

Steel

Aluminium

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_84_73 Roller shuttersPrimary

CAWS

L20/60 Doors

L20/610 Roller shutters/ curtains

Product range

Vision Roller Shutters

Specification data - Roller shutters

Opening sizes

12000 x 6000 mm.

Guidance for specification option:

Available up to 12000 x 6000 mm (w x h).

Manufacturer guidance

Width (maximum):

  • Electric, GfA: 12 000 mm.
  • Electric, NRG: Aluminium housing: 6000 mm; Steel housing: 12 000 mm.
  • Manual: 3000 mm.


Enclosure size (internal face fix):

Dependent on height.

- Electric, GfA:

  • <2200 mm: 305 mm.
  • 2200–3650 mm: 355 mm.
  • 3650–4600 mm: 400 mm.
  • 4600–6000 mm: 500 mm.


- Electric, NRG:

  • <2200 mm: 305 mm.
  • 2200–3650 mm: 355–360 mm.
  • 3650–4600 mm: 400 mm (steel only).

- Manual:

  • <2200 mm: 305 mm.
  • 2200–3000 mm: 355 mm.


Arrangement

Vertical, external face fix.

Vertical, internal face fix.

Vertical, reveal fix.

Shutter curtain.

-

Lath material

Single skin curved steel, 76 mm in height. 0.7, 0.9 or 1.2 mm wall thickness, dependent on overall width. Bottom slat: Steel with brush and rubber weather seals.

Finish and colour

Galvanized.

Guidance for specification option:

Standard.

Plastisol coated, BS.

Guidance for specification option:

Insert colour requirement.

Plastisol coated, RAL.

Guidance for specification option:

Insert colour requirement.

Polyester powder coated, BS.

Guidance for specification option:

Insert colour requirement.

Polyester powder coated, RAL.

Guidance for specification option:

Insert colour requirement.

Frame and guides

-

Material

Steel.

Guidance for specification option:

Standard.

Finish

Galvanized.

Guidance for specification option:

Standard.

Polyester powder coated, BS.

Guidance for specification option:

Insert colour requirement.

Polyester powder coated, RAL.

Guidance for specification option:

Insert colour requirement.

Operation

-

Mode

Electric, GfA three phase motor with push button control.

Electric, NRG Economy tubular motor with internal rocker or external key switch.

Manual, spring and lock.

Accessories

None.

Crank handle.

Manual override facility.

Polycarbonate infills.

Guide channels depth

50 mm.

65 mm.

75 mm.

100 mm.

Weight

8.3—14.2 kg.

Guidance for specification option:

  • 8.3 kg (0.7 mm thickness).
  • 10.6 kg (0.9 mm thickness).
  • 14.2 kg (1.2 mm thickness).

Guide channels

Galvanized steel with brush weather seal.

Enclosure

Galvanized steel casing & end plates.

Width

12000 mm.

Manufacturer guidance

Curtain slate maximum width.

Area

29 m².

Guidance for specification option:

Tubular.

49 m².

Guidance for specification option:

Outboard.

Manufacturer guidance

Curtain slat maximum area.

Sustainability data

Country of product manufacture

United Kingdom

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
 -

1

DWG
 -

1

IFC
 -

1

Literature

Commercial Security Solutions

Commercial Security Solutions

Commercial Security Shutters

Commercial Security Shutters

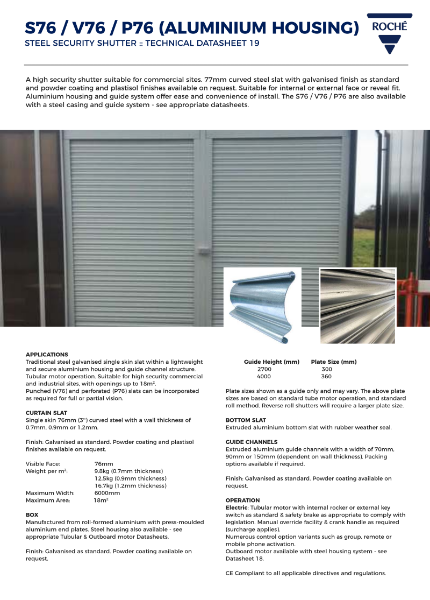

S76 / V76 / P76 Aluminium Security Shutter Datasheet

S76 / V76 / P76 Aluminium Security Shutter Datasheet
