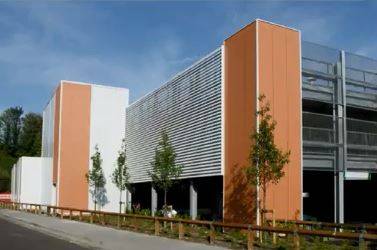

Optima® XPC 225 mm (Extruded Plank Rainscreen)

Optima® XPC 225 mm (Extruded Plank Rainscreen)

Sotech Ltd Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Optima® XPC 225 mm-wide extruded aluminium plank rainscreen cladding system.

Jump to:
+44 (0)191 587 2287 www.sotech-optima.co.uk

Application

Robust design can be secret-fixed horizontally, vertically or diagonally.

Description

Robust secret-fix extruded aluminium plank system based around 225 mm-wide planks. Comprises a 6063 T6 extruded plank panel, XPC carrier rails 'T&L' and adjustable helping hands brackets.


Features and benefits:

  • Adjustable brackets.
  • Also available in different standard widths: 150 mm, 200 mm and 250 mm (specified separately).
  • Recessed or hairline appearance.
  • Seamless integration.
  • CWCT-certified and approved.
  • Compliant to NHBC requirements.


Consult the manufacturer to discuss bespoke detail proposals.

General information

Finish

Andonized

Powder-coated

Material

Aluminium

Shape

Rectangle

Width

Bespoke mm

Height

Bespoke mm

WarrantyDescription

Dependent on specified finish and location, consult manufacturer.


-

Uniclass

Ss_25_20_70_25 Drained and back-ventilated rainscreen cladding systemsPrimary

CAWS

H92/120 Rainscreen cladding

Specification data - Drained and back-ventilated rainscreen cladding systems Enhanced data

System performance

Insert requirements.

-

Thermal insulation

Insert requirements or omit.

-

Breather membrane

-

Material

Insert requirements or omit.

-

Fasteners

Insert requirements or omit.

-

Secondary support structure

XPC carrier rails 'T&L' and adjustable helping hands brackets.

Consult manufacturer for details.

Cavity fire barriers

-

Horizontal

Insert requirements or omit.

-

Vertical

Insert requirements or omit.

-

Cladding panels

-

Material

Planks are 15 mm-deep (2.5 mm thick), and available up to 6400 mm long. Insert requirements or other details e.g. drawing reference or schedule.

225 mm-wide 6063 T6 aluminium, anodized.

Insert colour requirements.

225 mm-wide 6063 T6 aluminium, polyester powder-coated.

Insert colour requirements.

Panel joints

The aluminium planks are connected by a simple interlocking male/female joint, which offers either a recessed or hairline appearance. Consult manufacturer for further details.

Recessed.

Hairline.

Reveals

Insert requirements or omit.

-

Samples required

Insert requirements or omit.

-

Configuration

Vertical panels.

Horizontal panels.

Diagonal panels.

Environmental information

Recyclability

Prime aluminium.

-

Recycled content

99 %

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.1
Revit
-

1

2.1
Download now from NBS National BIM Library
