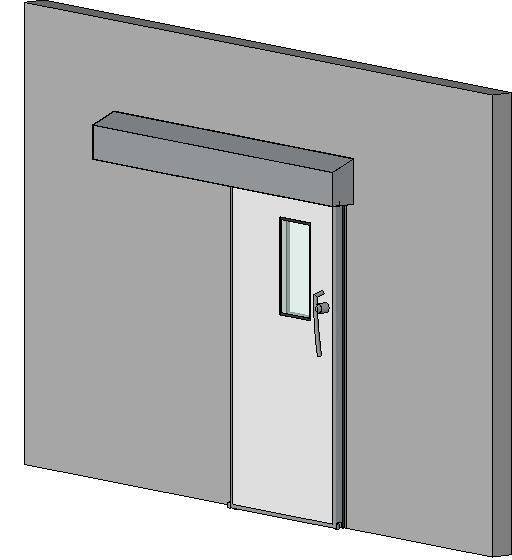

Operating theatre sliding door
Verified by manufacturer 6 months ago
Hermetically sealing sliding operating theatre door.
Application
Suitable for the following applications:
- Operating theatres.
- Healthcare.
- Hospitals.
Description
A range of hermetically sealing sliding operating theatre doors specifically designed for hospitals and healthcare environments.
Features and benefits:
- Dortek hermetic doors are specialist hygienic doors of high quality and robust construction which are designed to deliver safety, reliability and efficiency in environments where infection control is critical.
- The door has a unique patented track system which enables it to seal perfectly when closed, helping to reduce air handling costs, cross contamination and wound infections. Air leakage has been tested independently and results up to 400 Pa pressure are available.
- A flush seamless surface with an attractive finish which is easy to keep clean. Free from ledges and gaps to eliminate breeding grounds for bacteria. These doors make optimal use of room space and cause less accidents when opening and closing.
- Controls air leakage.
- Lower air handling costs.
- Reduces cross contamination.
- Smooth hygienic surface.
- Safe reliable, low maintenance.
- No floor track required.
- Good sound reduction creates quiet working environment.
General information
Color | Blue White Yellow Cream Green |
Material | High pressure laminate (HPL) Guidance for specification option: Faced both sides with 1 mm hard plastic laminate. |
Shape | Rectangle |
Warranty description | One year |
Uniclass | |
CAWS | L20/490 Automatic doors L20/520 Sliding doors L20/60 Doors |
Product range |
Specification data - Sliding door and partition sets
Track system | Anodized aluminium rail system with nylon bearings. |
Door leaves | |
Construction | Hard plastic laminate over PU core.Guidance for specification option: 60 mm thick with a 1 mm-thick hard plastic laminate facing on 5 mm-thick board/ 6 mm-thick hard plastic laminate and a 48 mm-thick polyurethane core. Framed in anodized aluminium profiles. |
Finish and colour | F2255 Polar White.F2296 Sno White.F7927 Folkestone.F1998 Oslo.F7880 ThistleF5127 Monaco.F2828 Tropical Blue.F7851 Spectrum Blue.F2833 Sandstone.F2731 Sand Maple.F2887 Savoy Beech.F2510 Golden Morning Oak.Other.Guidance for specification option: Other finishes may be available upon request. |
Operation | Automated with two infra-red detectors.Automated with two push buttons.Automated with two touchless sensors.Manual.Guidance for specification option: Non self-closing. Manufacturer guidanceAutomated doors include a micro-processor controlled safety photo-cell with in-built safety sensor to open the door if obstructed. Interlocking systems available. Other methods of actuation available - contact manufacturer. |
Hardware | Stainless steel D handle and flush grip.Stainless steel lever handle both sides. |
Battery back-up | Not required. Required. |
Door frame | Anodized aluminium corner profile. Stainless steel. |
Vision panels | 300 x 600 mm. Guidance for specification option: Double glazed. 400 x 400 mm. Guidance for specification option: Double glazed. 600 x 600 mm. Guidance for specification option: Double glazed. |
Canopy | Aluminium with sloping top. Stainless steel with sloping top. Steel, polyester powder coated white with sloping top. |
Guides | Internal bottom track with nylon guide. |
Door width | 1000–1100 mm. 1200–1600 mm. 1700–2000 mm. Bespoke. Guidance for specification option: Special sizes available upon request, consult manufacturer. Manufacturer guidanceStandard door blade widths. |
Height | 2100 mm. 2400 mm. Manufacturer guidanceStandard door blade heights. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Ireland Guidance for specification option: Or Sweden |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
