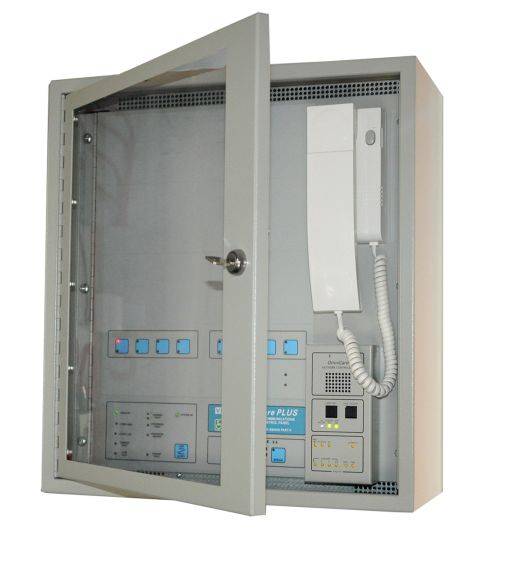

OmniCarePLUS - Digital Network Control Panel 8-64 Way

Verified by manufacturer 8 days ago

Baldwin Boxall Communications Ltd Third party certifications:
  • Made in Britain

    Made in Britain

    Certificate type

Control Panel for the OmniCarePLUS EVC system 8—64 way options. The object includes finish details and main product features.

Jump to:
+44 (0)1892 664422 Website

Application

Suitable for surface mounting or flush mounting.

Description

Control panel for the OmniCarePLUS EVC system. The panel features a glazed lockable door and options for this include 8—64 way panels (separate battery enclosure is supplied).

Multiple control panels (up to 32) can be included in the system enabling networking and local area control if required (The system includes touchscreen control station, network hub enclosure, and control panel).

Network hubs and control panels are connected using either copper or fibre cabling.

Any combination of outstations can be connected on the loop circuits to the control panels (toilet alarms to be connected via BVOCRIF units).


Features and benefits:

  • Digital networked control panel that allows networking via single, multimode fibre or copper with touchscreen control.
  • Digital audio – full duplex or speech steered (remote dependent) One master and multiple slaves can be networked on one system (panels are configured on installation).
  • Surface mountable or optional flush mounting with bezel lockable glazed door.
  • Remote units are connected to the master control panel in a loop configuration, using fire rated enhanced four-core cable (OmniCare cabling & networking).
  • Fully monitored and battery backed.
  • Addressable via the remote unit.
  • Choice of remote units, including disabled refuge, advance disabled refuge, fire telephone, combined unit and disabled toilet alarms.
  • Supplied with BVOBATT battery enclosure.
  • Fully BS 5839-9 compliant.

General information

Color

Grey

Finish

Powder-coated

Material

Steel

Shape

Rectangle

Length

200 mm

Width

410 mm

Height

455 mm

Warranty description

Seven year

Guidance for specification option:

Baldwin Boxall warrants all product manufactured by itself for a period of seven years from date of invoice.

Uniclass

Pr_75_80_30_29 Fire alarm panelsPrimary

CAWS

W90/120 Fire detection and alarm system

Specification data - Fire alarm panels

Standard

To BS 5839-9.

Enclosure

-

Finish

Powder coated.

Colour

Grey, RAL 7038.

Guidance for specification option:

Powder coated, 30% gloss.

Mounting

Surface.

Flush.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

BIM objects

Platform Compatible Version
Revit

Revit 2015

1

Third party certifications

Made in Britain

Made in Britain

Made in Britain membership

Similar products from Baldwin Boxall Communications Ltd

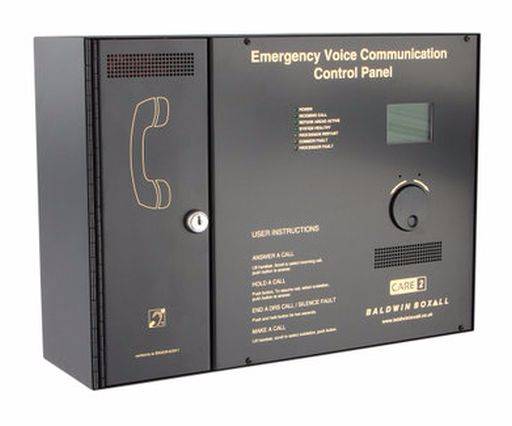

CARE2 Control Panel

CARE2 Control Panel

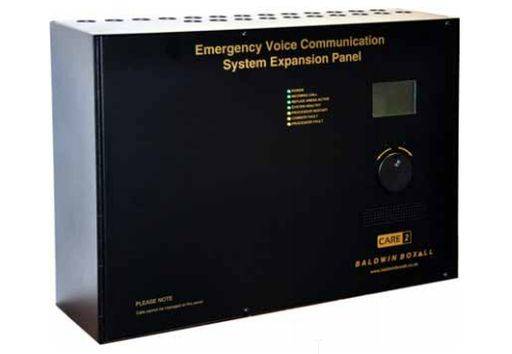

CARE2 Network Expansion Panel

CARE2 Network Expansion Panel

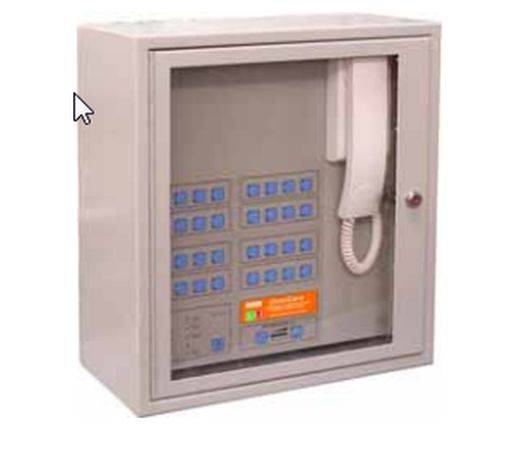

OmniCare 4-32 Way Control Panel
