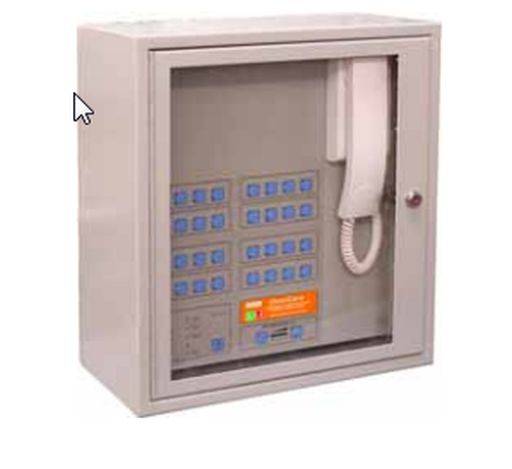

OmniCare 48-64 Way Control Panel

Control panel for the OmniCare EVC system. The panel features a glazed lockable door and options for this enclosure size include 48-64 way panels.

The panel is cabled with the outstations in a loop configuration using 4-core enhanced fire rated cable. Multiple control panels can be included in the system enabling networking and local area control if required (There must always be one panel on the system large enough to control all outstations on the system).

Up to 200 m distance is permitted between panels and outstations on the loop, for longer distances the addition of repeater units (BVOCRIF) will be required.

Any combination of outstations can be connected on the loop circuit (toilet alarms to be connected via BVOCRIF units).

Features and benefits:

• Digital audio – full-duplex or speech steered (remote dependent).
• One master and multiple slaves can be networked on one system (panels are configured on installation).
• Object options include grey or stainless steel finish units.
• Surface mountable or optional flush mounting with bezel.
• Lockable glazed door.
• Remote units are connected to the master control panel in a loop configuration, using fire rated enhanced four-core cable. (OmniCare cabling and networking).
• Fully monitored and battery-backed (separate box to house batteries supplied with panels larger than 32-way).
• Addressable via the remote unit Choice of remote units, including disabled refuge, advance disabled refuge, fire telephone, combined unit, and disabled toilet alarm.
• Fully BS 5839-9 compliant.
