Old Sanderstead - Clay Facing Brick
Verified by manufacturer 5 months ago
QA Certificate
Certificate type

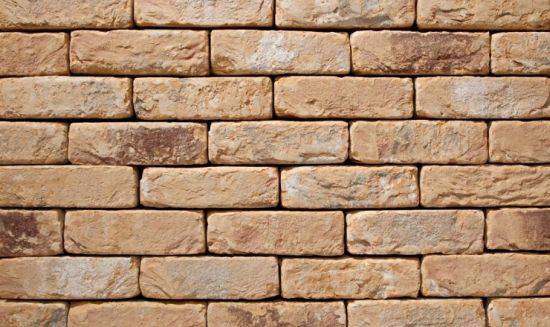

Yellow facing brick with shades of white to brown/ black, with appearance of reclaimed brick.
Description
The raw materials are excavated in Weichsel loam layers, the local loam of Aeolian origin dating from the Ice Age. This löss mainly consists of a silt-like fraction, suited for the manufacturing of hand form bricks. By using specific sand types for surface covering, the desired colour is achieved.
Features and benefits:
- Hand formed.
- Multi-shade.
- Five joint styles available.
For more information about Vandersanden and to discover our complete range of specifier solutions, please visit www.vandersanden.com.
Be informed and inspired by the potential of brick to transform your projects. Register for our specifier Inspiration Guide here
Over 1.1 million possibilities!
Create, download and visualise beautiful brick facades with our New Texture Generator here
Stay up to date and discover new trends, techniques, and innovations with our RIBA CPDs here
General information
Color | Yellow White Brown Black |
Finish | Sanded Coated |
Material | Clay |
Shape | Rectangle |
Length | 215 mm |
Width | 102 mm |
Height | 65 mm |
Uniclass | |
CAWS | F10/110 Clay facing brickwork F10/5 Facing brickwork |
Product range |
Specification data - Clay bricks
Standard | To BS EN 771-1. |
Brick description | Facing brick. |
Appearance | Yellow with shades of white to brown/ black, with a sanded-coated and grained structure and appearance of reclaimed brick. |
Work size (length x width x height) | 215 x 102 x 65 mm. |
Tolerances | |
Mean value | T2. |
Range | R1. |
Compressive strength | |
Mean compressive strength (minimum) | ≥20 N/mm².Guidance for specification option: Tested to the bed face. |
Category | Manufacturer guidanceManufacturer's standard. |
Durability designation | F2. |
Density | |
Gross dry | 1530 kg/m³. |
Net dry | 1640 kg/m³. |
Tolerance | D1. |
Water absorption | ≤17% m/md. |
Configuration | Frogged. |
Recycled content | Manufacturer guidanceManufacturer's standard. |
Thermal conductivity | ≤0.55 W/m·K.Guidance for specification option: Lambda 50/50 |
Thermal resistance | Manufacturer guidanceManufacturer's standard. |
Water vapour permeability | 5/10 µ. |
Bond strength | 0.15 N/mm² (general); 0.30 N/mm² (thin layer). |
Reaction to fire | Class A1. |
Active soluble salts | S2. |
Jointing | Dark grey. Grey. Joint free. White. Yellow. |
Sustainability data
Country of material origin | Europe |
Country of product manufacture | Belgium |
Recyclability | Recyclable |
Third party certifications
QA Certificate
Certificate of conformity of the factory production control 0620-CPR-97884/02
