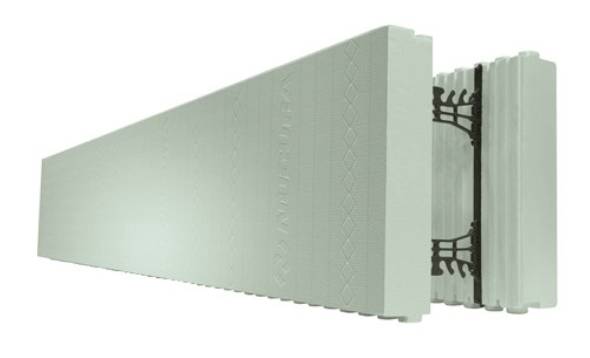

Nudura XR-35 Plus Series - Insulated Concrete Form
Verified by manufacturer 5 days ago
Insulated concrete form with 102 mm EPS panels and fastening strips providing enhanced insulation and ease of assembly.
Application
Used as insulated concrete forms for building solid walls.
Description
The XR35 form, with its 4-inch (100 mm) thick EPS panels, provides a significant increase in insulation performance. It is available with a 6-inch (150 mm) and 8-inch (200 mm) core as a standard form and a 90° corner form. The fastening strips remain 5/8-inch (16 mm) below the surface of the EPS and are located at 8-inch (200 mm) on centre. The fastening strip is marked with a diamond pattern, making fastening the interior or exterior finishes quick and easy on site.
Features and benefits:
- 102 mm EPS panels.
- XR35 core options: 152 mm or 203 mm.
- Minimum U-value of 0.16 insulation value.
- Full line of ICF product accessories from waterproofing materials to bracing available.
- Access to full on-site technical support through an expert in-house team.
Add on:
- Nudura XR-35 unassembled forms: Standard/ straight form.
- Insert webs for unassembled XR-35 forms: 152 mm/ 203 mm/ 254 mm/ 305 mm.
General information
Color | White |
Material | Expanded polystyrene (EPS) |
Shape | Rectangle |
Length | 2438 mm |
Width | 150 mm 200 mm |
Height | 457 mm |
Uniclass |
Specification data - Permanent insulation formwork (PIF)
Classification data | |
Designation | |
Structure | Moulded panels. |
Wall width (overall) | 150 mm core. 200 mm core. |
U-value | 0.16 W/m²K (minimum). |
Accessories | Not required. Alignment system. End caps 152/ 203/ 254/ 305 mm. Lintel cavity closures 152/ 203/ 254/ 305 mm. ICF Hanger system. FF197 fire retardant expanding foam. PU010 adhesive. Nudura Peel & Stick membrane. illbruck ME508 membrane. |
Sustainability data
Material | Expanded polystyrene (EPS) |
Literature

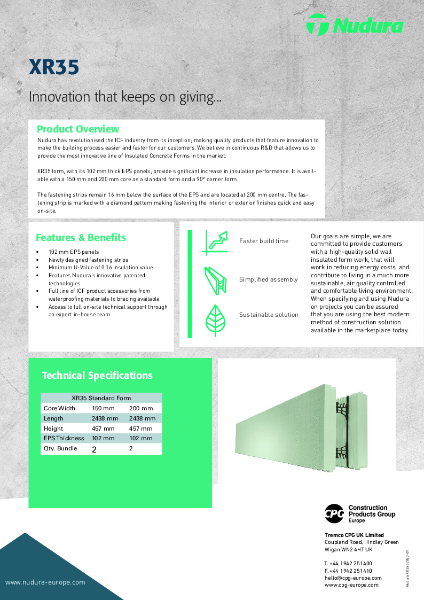

XR35 Insert A4 31012023
