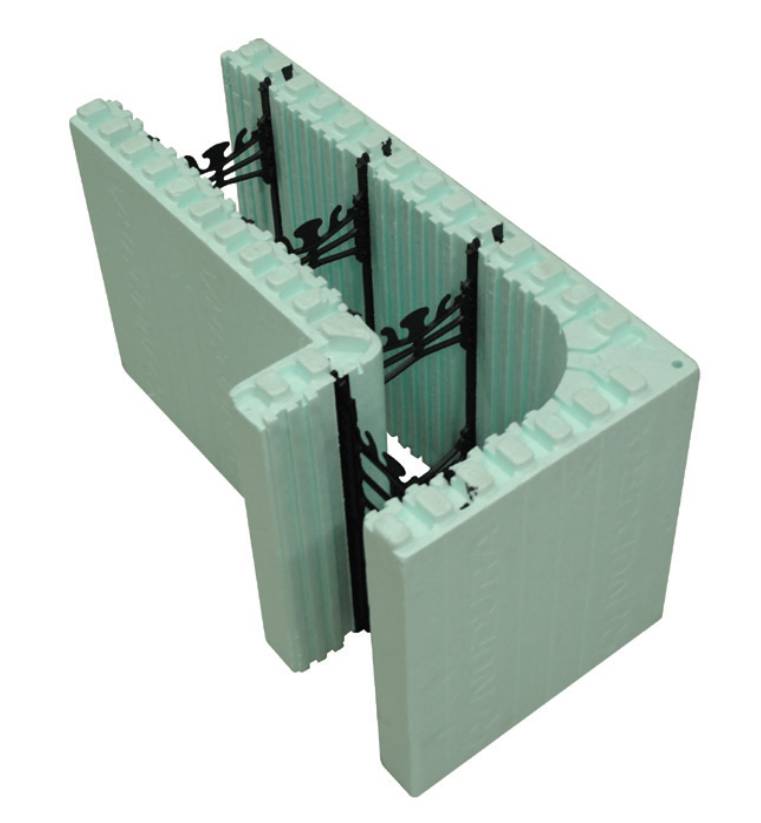

Nudura ICF Series - Insulated Concrete Form

Nudura Insulated Concrete Forms (ICF) provide solid, insulated wall technology that enhances energy efficiency and durability.

Features and benefits:

• Patented technology.
• Standard form sizes from 100 mm, 150 mm, 200 mm, 250 mm and 300 mm.
• ICF series core options: 152 mm, 203 mm, 254 mm, 305 mm.
• U-value of 0.24, which can go as low as 0.11 with the Plus Series.
• Full line of ICF product accessories from waterproof material to bracing.
• Maximum energy efficiency improves home energy use by up to 70%.
• High fire resistance rating of over four hours with a minimum 152 mm concrete core.
• Greater durability with less maintenance and repairs compared to traditional builds.

Add on:

• Nudura assembled brick ledge and taper top forms: Brick ledge form 152 mm core; Taper top form 152/ 203 mm core.
• Nudura unassembled forms: Standard/ straight form; Brick ledge form; Taper top.
• Insert webs for unassembled forms: 152 mm /203 mm/ 254 mm/ 305 mm.
