Novia® 500 Gauge FR Class B-s1,d0 Fire Rated Virgin Polythene - FR Class B Air And Vapour Control Layer
Verified by manufacturer 2 days ago
Novia® 500 Gauge FR Virgin Polythene is a Class B flame resistant, virgin grade, single-ply blown polythene Air & Vapour Control layer (AVCL).
Application
The membrane has good moisture vapour resistance and is suitable for use in insulated wall, floor or roof applications where there is a moderate risk of interstitial condensation occuring.
Novia® 500 Gauge FR Virgin polythene also minimises air leakage and energy heat loses, improving the long-term energy efficiency of constructions. It is a low cost solution for standard and high rise constructions, supplied single wound in 1.5m x 50m rolls.
Novia® 500 Gauge FR virgin polythene is a milky white transluscent polythene, with no text or images, which allows for ease of installation to the structural framework.
Description
Novia® 500 Gauge FR Virgin Polythene is a Class B flame resistant, virgin grade, single-ply blown polythene Air & Vapour control layer (AVCL).
The material meets EN 13984 and is CE marked.
Novia® 500 Gauge FR virgin polythene complies to EN 13501-1 Fire Classification B-s1,d0.
Features and benefits:
- CE approved to BS EN 13984.
- Fire classification to EN 13501-1, B-s1,d0.
- Low cost, fire rated option for both standard and high rise and high risk constructions.
- 75 m² supplied single wound in 1.5 x 50 m rolls.
- Milky white, translucent material allows for ease of installation to framework.
- Minimises interstitial condensation and improves insulation performance.
- Minimises air leakage and energy heat losses.
- Helps towards BS 5250 requirements.
General information
Color | White |
Finish | Smooth Other |
Material | Polyethene Guidance for specification option: Reinforced, foil faced. |
Shape | Other |
Length | 50000 mm Manufacturer guidanceOverall roll length. |
Width | 1500 mm Manufacturer guidanceOverall roll width. |
Height | 0.12 mm Guidance for specification option: 0.125 mm. |
Warranty description | Lifetime |
Uniclass | |
CAWS | H30/261 Air and vapour control membrane K11/145 Battened cement-bonded particleboard floating floor H31/261 Air and vapour control membrane P10/60 Air and vapour control layer H31/45 Air and vapour control membrane H30/30 Air and vapour control membrane J42/395 Air and vapour control layer H92/780 Air and vapour control layer J41/395 Air and vapour control layer J31/330 Air and vapour control layer K21/146 Laminate flooring K21/145 Composite laminate flooring K21/140 Battened wood laminate flooring K21/130 Battened wood floating floor K21/120 Battened wood flooring K21/115 Wood laminate flooring K21/111 Wood floating floor K21/110 Wood flooring K11/795 Wall lining on metal framing K11/245 Cement bonded particleboard floating floor K11/235 Oriented strand board floating floor K11/225 Particleboard floating floor K11/215 Plywood floating floor K11/135 Battened oriented strand board floating floor K11/125 Battened particleboard floating floor K11/115 Battened plywood floating floor K10/155 Wall lining system (metal studs) P10/310 Air and vapour control layer H20/150 Sheet cladding (attached to metal support systems) J21/395 Air and vapour control layer |
Specification data - Plastics sheets
Classification data | |
Product reference | Novia® 500 Gauge FR Class B-s1,d0 Fire Rated Virgin Polythene. |
Material | Polythene. |
Purpose | Fire rated FR AVCL Virgin grade polythene. Guidance for specification option: Fixed with Novia 30 mm wide double sided butyl tape and 96 mm wide BS 476 cold weather foil lap tape for all airtight applications. |
Standard | To BS EN 13948. |
Performance characteristics | |
Tensile strength (minimum) | To BS EN 12311-2, MD/CD: >16/>16 N/mm². |
Tear resistance | To BS EN 12310-1, MD/CD: >50/>50 N. |
Elongation to break | To BS EN 12311-2, MD/CD: >600/>600%. |
Water vapour resistance (minimum) | To EN 1931, 100 m. Manufacturer guidanceIn Sd (-20/+20). |
Fire performance | To BS EN 13501-1, Class B-s1, d0. Guidance for specification option: Valid for substrates with fire class A2- s1,d0 or A1 with density of at least 515 kg/m³ with no cavity between product and substrate. Product has been tested free hanging and achieved the same fire classification. |
UV stabilization | N/A. |
Anti-static properties | N/A. |
Environmental performance requirements | |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | None. |
Form | Single-ply. |
Physical properties | |
Colour | White. |
Weight (minimum) | 10 kg. Manufacturer guidanceRoll weight. |
Dimensions | |
Thickness (minimum) | 125 µm (500 gauge). |
Width (minimum) | 1.5 m. Guidance for specification option: Roll width. |
Roll length (minimum) | 50 m. |
Resistance to water penetration | To EN 1928, pass. |
Tape | Not required. Novia Double sided butyl tape. Novia Cold weather aluminium foil lap tape. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Material | Polyethene Guidance for specification option: Reinforced, foil faced. |
Recyclability | 0 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Expected Life | Lifetime |
Literature

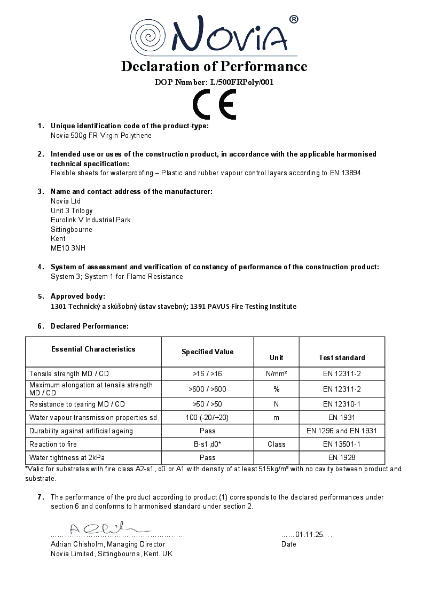

Novia 500 Gauge FR Class B-s1,d0 fire rated Virgin Polythene Declaration of performance
