NORTEC L 30 x M - Raised Access Flooring

Verified by manufacturer 6 months ago

Lindner Group Third party certifications:
  • EPD

    EPD

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • EnMS ISO 50001

    EnMS ISO 50001

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Cradle to Cradle Certified

    Cradle to Cradle Certified

    Certificate type

  • FIS Acoustic Verification Scheme

    FIS Acoustic Verification Scheme

    Certificate type

NORTEC floor panels are manufactured from calcium sulphate (gypsum): a non-combustible material, the panels are protected against shock and humidity by an edge trim on all edges.

Jump to:
BOS
020 8246 6333 Website

Application

  • Computer rooms and control rooms.
  • Office and construction areas.
  • Industry and working rooms.
  • Training and research rooms.

Description

NORTEC floor panels are manufactured from calcium sulphate (gypsum): a non-combustible material, the panels are protected against shock and humidity by an edge trim on all edges.

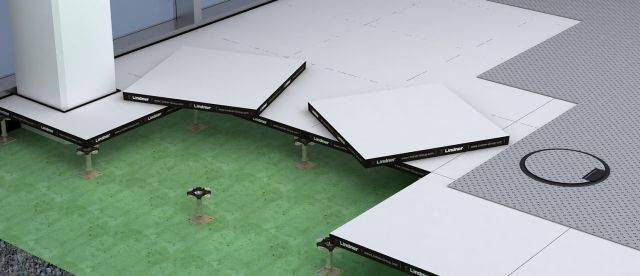

System comprises:

  • Panel: Fibre-reinforced calcium sulfate panel, surrounding edge trim protection against damage and humidity, edges inclined.
  • Pedestal: Precisely height adjustable, manufactured from galvanized and yellow achromatized steel, precision threaded bolt.
  • Gasket: Manufactured from plastic material, vaulted surface for perfect panel fixing.
  • Wall connection: Pre-stressed foam rubber, for acoustic insulation and absorption of horizontal movements.


Suitable floor coverings:

  • Elastic coverings.
  • Textile coverings.
  • Loose-laid coverings.

General information

Color

Clear

Finish

Other

Material

Calcium sulphate

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

25 year

Uniclass

Ss_30_20_70_70 Raised access floor systemsPrimary

CAWS

K41/130 Raised access floor

Product range

Lindner Raised Access Floor / NORTEC

Specification data - Raised access floor systems

Subfloor preparation

-

Manufacturer guidance

Insert requirements or omit.

Support structure type

Access floor pedestals type M, with gaskets. 600 mm spacing.

Guidance for specification option:

Insert requirements include drawing reference or schedule.

Pedestal heights available from 28 to 2000 mm.


  • Pedestal: Precisely height adjustable, manufactured from galvanized and yellow achromatized steel, precision threaded bolt.
  • Gasket: Manufactured from plastic material, vaulted surface for perfect panel fixing.

Pedestal fixings

-

Manufacturer guidance

Consult manufacturer for options and insert requirements to suit substrate.

Raised access floor surface

NORTEC L 30 raised access floor panels, 600 x 600 x 30 mm.

Barriers in floor void

-

Fire barriers

-

Manufacturer guidance

Insert requirements or omit.

Acoustic barriers

-

Manufacturer guidance

Insert requirements or omit.

Plenum barriers

-

Manufacturer guidance

Insert requirements or omit.

System accessories

-

Manufacturer guidance

Consult manufacturer for options and insert requirements, or omit.

Integral accessories

Pre-stressed foam rubber wall connections.

Guidance for specification option:

For acoustic insulation and absorption of horizontal movements.

Reaction to fire

To BS EN 13501-1, A1 (full non-combustible).

Fire performance

To BS EN 13501-2, REI 30 (up to 1300 mm pedestal heights).

Weighted sound reduction index, Rw

62 dB.

Weight

50 kg/m² (at a floor height of 150 mm).

Technical characteristics, other

Load and deflection class: 1A (2 kN).

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Material

Calcium sulphate

Manufacturing plant location

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

1.32 kg CO₂ eq/kg

Recyclability

yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Expected Life

50 year
