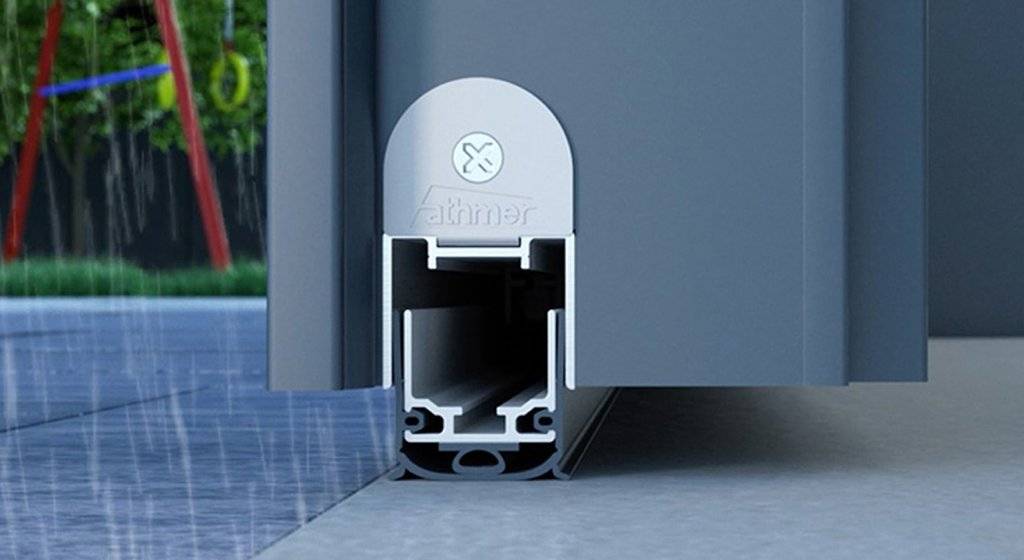

Norsound NOR813 Rebated Acoustic Automatic Door Bottom seal

Norsound NOR813 Rebated Acoustic Automatic Door Bottom seal

NORSEAL

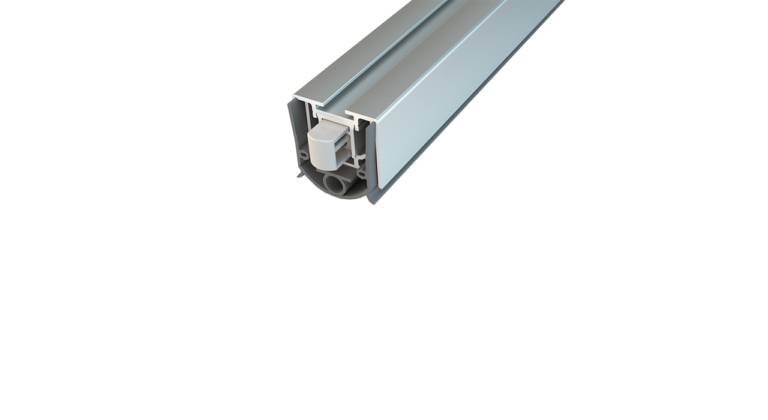

Aluminium carrier with silicone seal, for fitment at bottom of acoustic timber, metal and composite doorsets.

Jump to:
+44 (0)1661 830 088 norseal.co.uk

Application

Suitable for placement on bottom of acoustic timber, metal and composite doorsets.

Description

Aluminium carrier with PVC seal, for fitment at bottom of acoustic timber, metal and composite doorsets.


Features and benefits:

  • Rebated fixing, held in place with angle brackets.
  • Resistance to driving rain (classification 7A), in accordance with EN 12208.
  • Resistance to wind load (classification C2/Bs), in accordance with EN 12210.
  • Resistance to air permeability (classification 4), in accordance with EN 12207.
  • Sound reduction up to 54 dB.
  • Barrier free, no threshold required.
  • Maximum gap coverage: 16 mm.
  • Cutback up to 150 mm.
  • Single actuation.


General information

Finish

Mill

Aluminium.

Color

Grey

Seal/ gasket.

Silver

Carrier.

Material

Aluminium

Silicone

Steel

Shape

Rectangular

Size

  • Minimum length: 230 mm.
  • Maximum length: 2000 mm.
  • Special size to order.


750 x 24 x 20 mm

900 x 24 x 20 mm

1050 x 24 x 20 mm

1200 x 24 x 20 mm

WarrantyDescription

One year

Uniclass 2015

Pr_35_90_33_22 Door and window weatherstrips and sealsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Specification data - Door and window weatherstrips and seals Enhanced data

Standard

To EN 12208: 7A, EN 12210: C2/Bs and EN 12207: C4.

Functions

Acoustic seals.

Classification grades (minimum)

-

Category of use

Type G.

Size

  • Minimum length: 230 mm.
  • Maximum length: 2000 mm.
  • Special size to order.


750 x 24 x 20 mm

900 x 24 x 20 mm

1050 x 24 x 20 mm

1200 x 24 x 20 mm

Materials

-

Seals

Silicone.

Carriers

Aluminium.

Colour

Mill finish aluminium.

Carrier.

Grey.

Seal/ gasket.

Fixing

Rebated, held in place with angle brackets.

Actuation

Single.

Cutback

Up to 150 mm.
