Noracon Abseil Rail
Verified by manufacturer 4 months ago
NP01
NP01

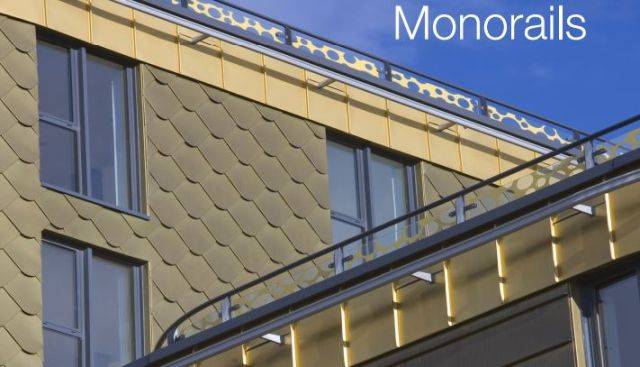

Abseil monorail system for facade access.
Application
Provide access to facades.
Description
Abseil rail system consisting of monorails and abseil trolleys.
Manual, rope driven and electrical trolleys are available, along with a Norlift climbing trolley (CE approved) which climbs on the NP01 monorail. The climbing ability is achieved by using friction between the drive wheels and the monorail.
Can be used to provide access to facades and areas not accessible by other means.
Used for facade maintenance, window cleaning, glass replacement, and many other applications.
Can also be used with cradle systems.
General information
Color | Silver Other Guidance for specification option: Can be powder coated. |
Finish | Anodized Mill Powder-coated |
Material | Aluminium |
Shape | Other |
Length | Bespoke |
Width | 43 mm 46 mm 62 mm 77 mm |
Height | 95 mm 117 mm 125 mm 139 mm 155 mm |
Uniclass | |
CAWS | N25/10 Personal fall protection equipment N25/210 Personal fall protection equipment |
Product range |
Specification data - Guided type fall arrest systems
Pre-installation survey | Suitability of structure and fabric. |
Design | As drawing. Guidance for specification option: Insert reference, consult manufacturer for information. |
Rail type | NP01. Guidance for specification option: The NP01 monorail system is the most flexible system in the range and can be installed hidden away on the roof or fixed to brackets on top of the facade. For horizontal installations, NP01 have two 'families' of trolleys: capacity 400 and 600 kg.
|
Rail finish | Anodized. Mill. Powder coated. Guidance for specification option: Insert colour requirement, consult manufacturer for information. |
Trolley | Electrical. Guidance for specification option: NP01E - (horizontal movement). Manual. Guidance for specification option: NP01M. Norlift. Guidance for specification option: NL01E - Climbing trolley (horizontal and vertical movement). Rope driven. Guidance for specification option: NP01R. |
Mounting | Side mounted. |
Twisting | Yes. |
Vertical | Yes. Manufacturer guidanceVertical bending. |
Horizontal | Yes. Manufacturer guidanceHorizontal bending. |
Dimensions | 46 x 139 mm. Manufacturer guidanceRail size: W x H. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Norway |
Country of product manufacture | Norway |
Recyclability | 100% |
Literature
Eurosafe Facade Access Brochure
