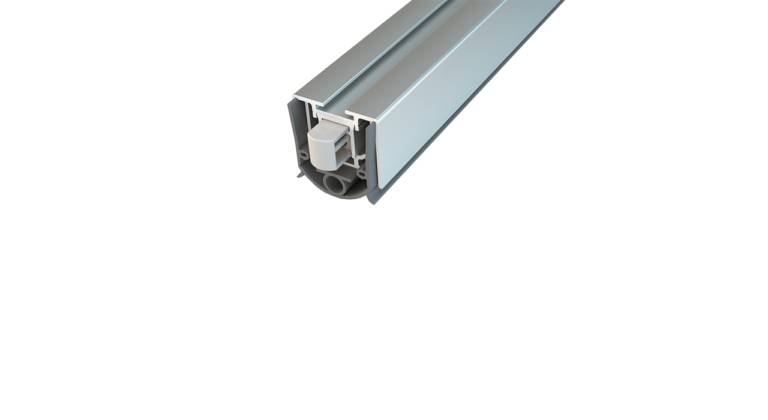

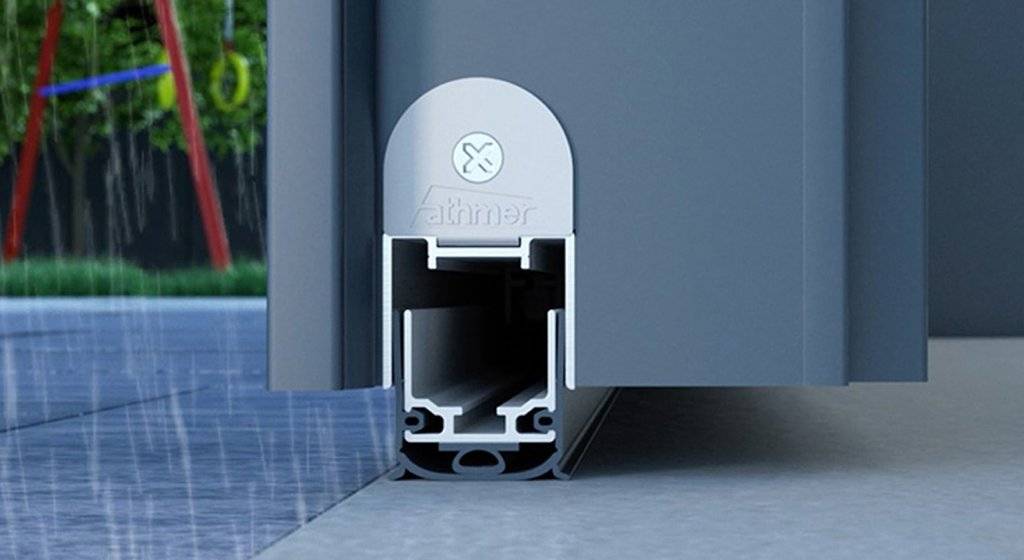

NOR813 Rebated Acoustic Automatic Door Bottom seal

NOR813 Rebated Acoustic Automatic Door Bottom seal

NORSEAL

Aluminium carrier with silicone seal, for fitment at bottom of acoustic timber, metal and composite doorsets.

Jump to:
+44 (0)1661 830 088 norseal.co.uk

Application

Suitable for placement on bottom of acoustic timber, metal and composite doorsets.

Description

Aluminium carrier with PVC seal, for fitment at bottom of acoustic timber, metal and composite doorsets.


Features and benefits:

  • Rebated fixing, held in place with angle brackets.
  • Resistance to driving rain (classification 7A), in accordance with EN 12208.
  • Resistance to wind load (classification C2/Bs), in accordance with EN 12210.
  • Resistance to air permeability (classification 4), in accordance with EN 12207.
  • Sound reduction up to 54 dB.
  • Barrier free, no threshold required.
  • Maximum gap coverage: 16 mm.
  • Cutback up to 150 mm.
  • Single actuation.


General information

Color

Grey

Seal/ gasket.

Silver

Carrier.

Finish

Mill

Aluminium.

Material

Aluminium

Silicone

Steel

Shape

Rectangle

Size

  • Minimum length: 230 mm.
  • Maximum length: 2000 mm.
  • Special size to order.


-

Length

750 mm

900 mm

1050 mm

1200 mm

Width

24 mm

Height

20 mm

WarrantyDescription

One year

Uniclass

Pr_35_90_33_22 Door and window weatherstrips and sealsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Specification data - Door and window weatherstrips and seals Enhanced data

Standard

To EN 12208: 7A, EN 12210: C2/Bs and EN 12207: C4.

Functions

Acoustic seals.

Classification grades (minimum)

-

Category of use

Type G.

Size

  • Minimum length: 230 mm.
  • Maximum length: 2000 mm.
  • Special size to order.


750 x 24 x 20 mm

900 x 24 x 20 mm

1050 x 24 x 20 mm

1200 x 24 x 20 mm

Materials

-

Seals

Silicone.

Carriers

Aluminium.

Colour

Mill finish aluminium.

Carrier.

Grey.

Seal/ gasket.

Fixing

Rebated, held in place with angle brackets.

Actuation

Single.

Cutback

Up to 150 mm.
