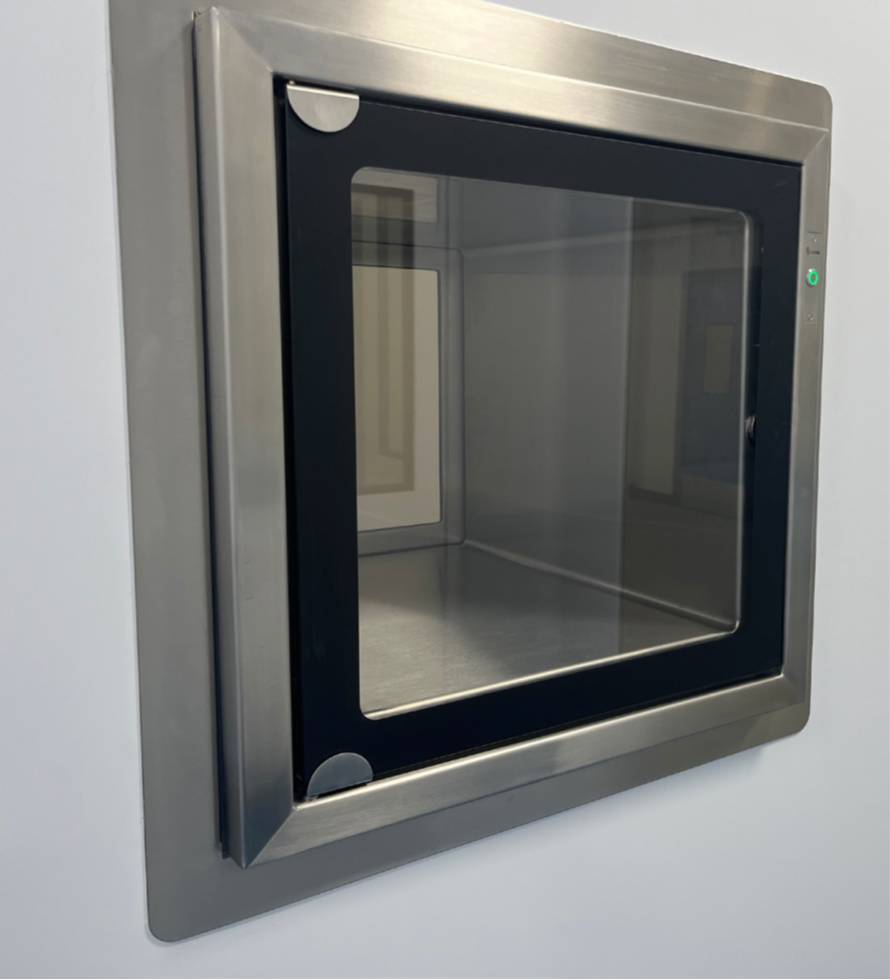

Non Fire-Rated Transfer Hatch - Pass Through Hatch

Verified by manufacturer 8 days ago

Dortek Ltd

An internal non fire-rated transfer/ pass through hatch.

Jump to:
BOS
+44 (0)1482 226848 Website

Application

Specifically designed for cleanroom environments, useful to provide a safe and easy means of transfer for materials and products in the following applications:

  • Pharmaceutical.
  • Research laboratories.
  • Life sciences.
  • Healthcare.
  • Cleanrooms.

Description

An internal fire-rated transfer/ pass through hatch manufactured from stainless steel.

Dortek's range of hatches are designed to provide a safe and efficient means of transferring materials and tools between adjacent spaces in controlled environments. The hatches include passive through to fully active solutions, complete with fans, filters and dedicated control systems.

Active pass throughs, with integrated fan systems, HEPA filtration and monitoring create a segregated environment, allowing safe venting of particulate and exhaust gases, further reducing the risk of exposure and transfer of contaminants to adjacent workspaces.

Features and benefits:

  • GMP compliant solution for the safe and convenient transfer of equipment and materials between adjacent controlled spaces.
  • Manufactured from high grade stainless steels.
  • Dual wall construction provides enclosed spaces for integrating controls and utilities.
  • Seamless polished stainless steel internal shell with smooth easy clean radiused corners.
  • External shell complete with flanges or support stands for simple integration into all wall types.
  • Highly chemically resistant materials.
  • Compatible with all typical cleaning solutions.
  • Interlocked doors in a variety of materials.

General information

Color

Grey

Finish

Polished

Brushed

Material

Stainless steel

Shape

Square

Rectangle

Length

Bespoke

300 mm

1000 mm

Width

Bespoke

300 mm

1000 mm

Height

Bespoke

300 mm

1000 mm

Uniclass

Pr_30_59_36_96 Wall hatchesPrimary

CAWS

L20/630 Hatches

Specification data - Wall hatches

Manufacturer

Dortek.

Format

Internal.

Door

-

Orientation

Horizontal.

Position

Flush.

Material

Stainless steel and glass.
Stainless steel and perspex.

Operation

-

Control

Mechanical interlocks.
Electromagnetic interlocks.
Integration into building management systems.

Sizes

-

Manufacturer guidance

Minimum standard size 300 x 300 x 300 mm.

Maximum standard size 1000 x 1000 x 1000 mm.

Custom sizes available upon request.

Insert requirements.

Ventilation

Active unit, with suitably sized fan and filtration systems.

Passive unit, with suitably sized fan and filtration systems.

Sustainability data

Contains Red List materials

No

Material

Stainless steel

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

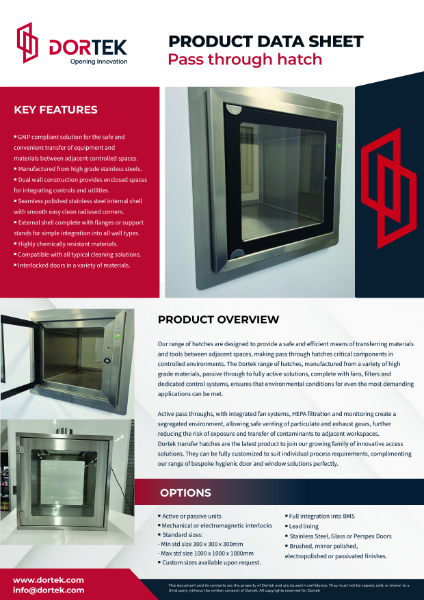

Dortek - Standard Pass Through Hatch

Dortek - Standard Pass Through Hatch

Similar products from Dortek Ltd

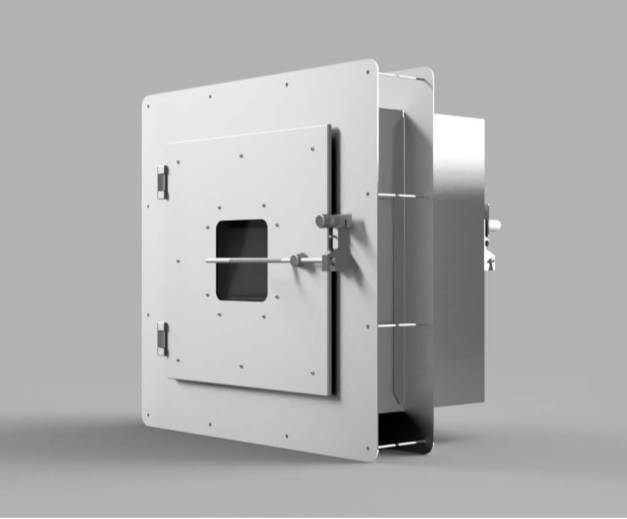

Fire-Rated Transfer Hatch - Pass Through Hatch
