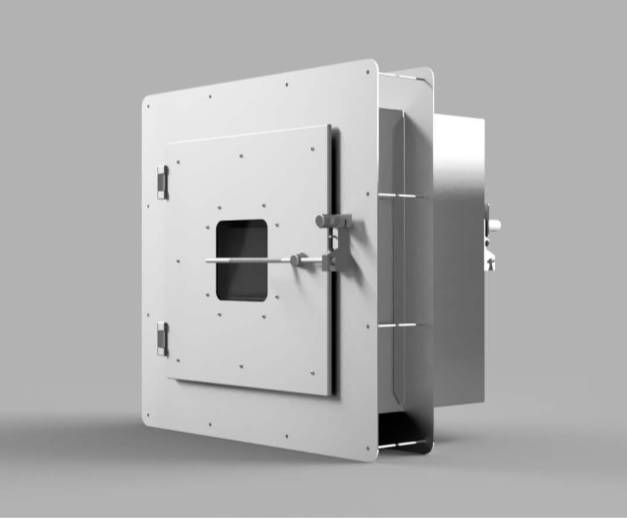

Fire-Rated Transfer Hatch - Pass Through Hatch

Verified by manufacturer 8 days ago

Dortek Ltd

An internal fire-rated transfer/ pass through hatch.

Jump to:
BOS
+44 (0)1482 226848 Website

Application

Specifically designed for cleanroom environments, useful to provide a safe and easy means of transfer for materials and products in the following applications:

  • Pharmaceutical.
  • Research laboratories.
  • Life sciences.
  • Healthcare.
  • Cleanrooms.

Description

An internal fire-rated transfer/ pass through hatch, manufactured from 304 or 316 grade stainless steel.

Features and benefits:

  • GMP compliant solution for the safe and convenient transfer of equipment and materials between adjacent controlled spaces.
  • Designed to reduce the risk of exposure to toxic materials or to prevent contaminants being transferred into clean work areas.
  • Fire tested to EN 1634-1 for up to 120 minutes.
  • Dual wall construction provides enclosed spaces for integrating controls and utilities.
  • Seamless fully welded and polished stainless steel internal shell with smooth easy clean radiused corners.
  • External shell complete with flanges or support stands for simple integration into all wall types.
  • Highly chemically resistant materials of construction compatible with all typical cleaning solutions.
  • Interlocked doors – available in stainless steel.
  • Configurable controls allow for door time delays, purge options and visible or audible alarms for error conditions.

General information

Color

Grey

Finish

Polished

Material

Stainless steel

Shape

Square

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_30_59_36_96 Wall hatchesPrimary

CAWS

L20/630 Hatches

Specification data - Wall hatches

Manufacturer

Dortek.

Format

Internal.

Performance

-

Fire performance

-

Integrity

To EN 1634-1, up to 120 minutes.

Door

-

Orientation

Horizontal.

Position

Flush.

Material

304 grade stainless steel.
316 grade stainless steel.

Operation

-

Control

Mechanical interlocks.
Electromagnetic interlocks.
Integration into building management systems.

Sizes

-

Manufacturer guidance

Up to 600 x 600 mm; insert requirements.

Seals

-

Manufacturer guidance

Multiple door seal materials, suitable for all processes. Consult manufacturer and insert requirements.

Ventilation

Active unit, with suitably sized fan and filtration systems.

Passive unit, with suitably sized fan and filtration systems.

Mounting

Wall mounted.

Floor mounted.

Sustainability data

Contains Red List materials

No

Material

Stainless steel

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

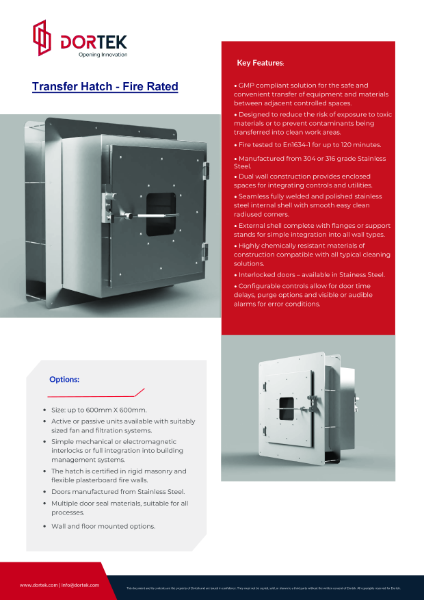

Dortek - Pass Through Hatch - Fire rated

Dortek - Pass Through Hatch - Fire rated
