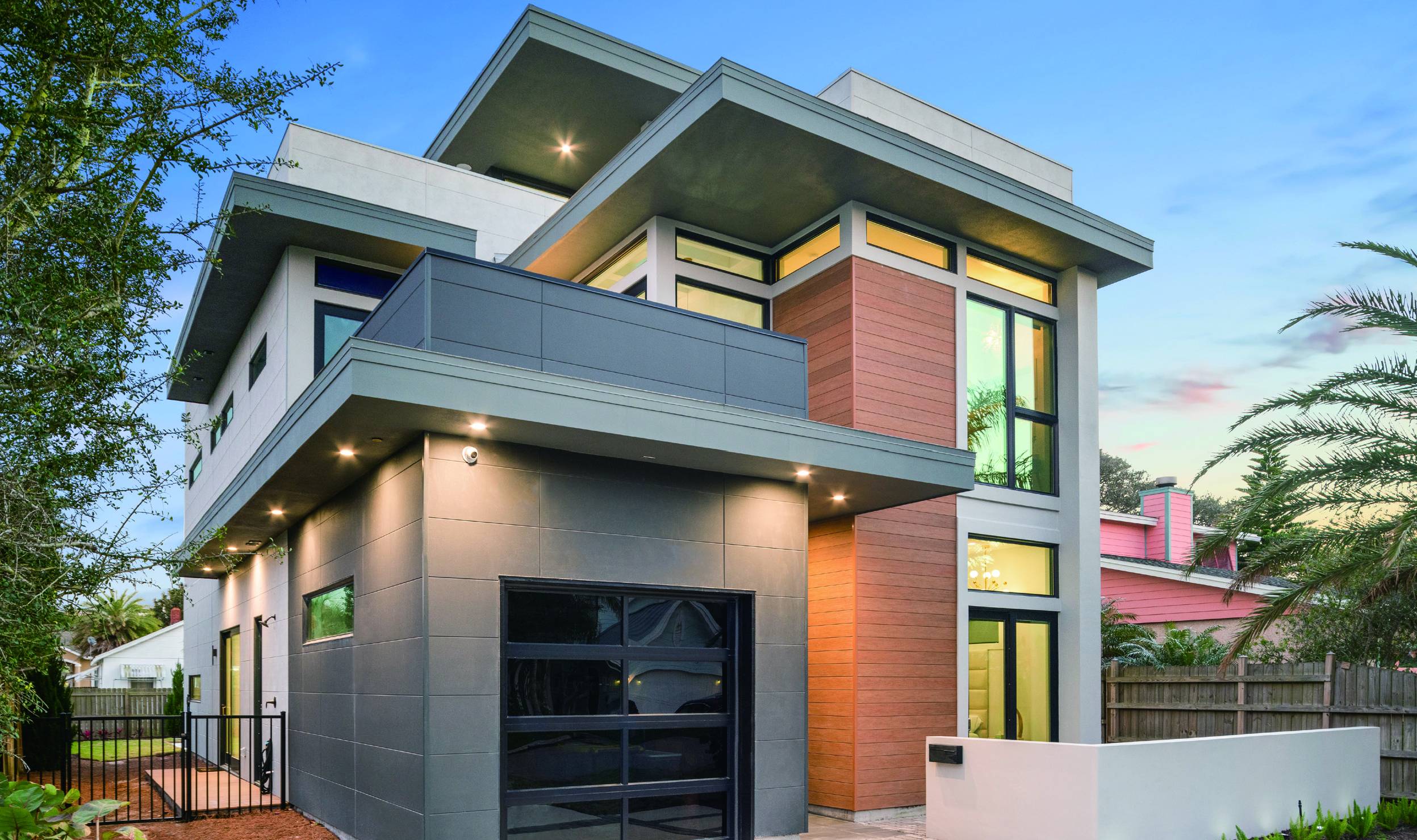

NICHIHA® EX Series Cladding System EX1820 - Fibre Cement Rainscreen Cladding
Verified by manufacturer 1 day ago
Simple - Staggered and Stacked
Simple - Staggered and Stacked
A four-sided profile rainscreen cladding system, installed in a horizontal orientation.
Application
Suitable for a ventilated rainscreen cladding and facade system.
Description
NICHIHA® EX Series 1820 is four-sided profile fibre cement cladding system with a pressed surface texture. It is designed for horizontal installation with an interlocking profile, sealed with a bonding strip.
Features and benefits:
- Four-sided profile.
- Horizontal orientation.
- Staggered and stacked installation.
- Pre-finished panels.
- Various colour options.
- Easy to install.
- Low maintenance.
- Weather-resistant.
- Back-ventilated rainscreen system.
General information
Color | Beige Black Blue Brown Cream |
Finish | Brick Smooth Textured Wood grain |
Material | Fibre cement |
Shape | Rectangle |
Length | 1820 mm Guidance for specification option: Effective coverage. 1829 mm Guidance for specification option: Overall coverage. |
Width | 455 mm |
Height | 16 mm |
Uniclass | |
CAWS | H30/110 Fibre cement H92/120 Rainscreen cladding |
Specification data - Drained and back-ventilated rainscreen cladding systems
Classification data | |
Thermal insulation | Manufacturer guidanceInsert requirements or omit. |
Breather membrane | |
Material | Manufacturer guidanceInsert requirements or omit. |
Fasteners | Manufacturer guidanceInsert requirements or omit. |
Secondary support structure | Manufacturer guidanceInsert requirements or omit. |
Cavity fire barriers | |
Horizontal | Manufacturer guidanceInsert requirements or omit. |
Vertical | Manufacturer guidanceInsert requirements or omit. |
Cladding panels | |
Material | Fibre-reinforced cement boards. |
Panel joints | Baffled joints. Guidance for specification option: Recommended for ventilation protection. Sealed joints. Guidance for specification option: Recommended for moisture resistance. Labyrinth joints. Guidance for specification option: Optional, subject to design. Manufacturer guidanceInsert joint requirements to suit the design intent and performance requirements. |
Reveals | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
System accessories | Not required. Clips. Starter track. Double flange sealant backer. Corrugated shim. Pre-formed corner profile. Aluminium corner profile. Metal finishing trims Silicone construction joint sealants |
Dimensions | 1820 x 455 x 16 mm. Guidance for specification option: Tolerances:
Manufacturer guidanceLength x width x thickness. |
Colours | EFM301. EFM306. EFM319. EDM318. EFM501. EFM502. EFM503. EFM508. EFM509. EFM510. EFM511. |
Dry density | To BS EN 12467, 1.2 g/cm. |
Reaction to fire | To BS EN 13501, Class A2-s1, d0. |
Thermal conductivity | 0.26 W/mK. |
Water permeability | To BS EN 12467, Class A, Moat 48. |
Orientation | Horizontal. |
Sustainability data
Country of material origin | Japan |
Country of product manufacture | Japan |
Material | Fibre cement |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Self-declared | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/kg) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 1.42-1.90 Value guidance: A1-A3A1-A3 GWP Totals vary from 1.42 - 1.90 depending on each manufacturing facility | |
Literature
Literature type
BBA agrement 24-7227 Nichiha EX series cladding PS1 issue 1 dated 2024 08 (1)
Nichiha EX Series - Brochure 2506-SIG001 (2)
