Net2 Proximity Metal Keypad KP75, MIFARE - RFID Multi-format Reader

Verified by manufacturer 7 days ago

Net2 Proximity Metal Keypad KP38ss

Paxton Access Ltd Variant:
Third party certifications:
  • UL Listed

    UL Listed

    Certificate type

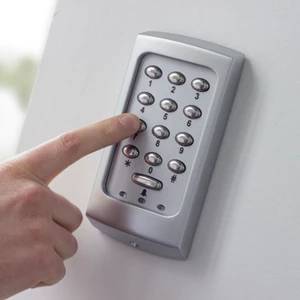

A stainless steel keypad reader (keypad and a proximity reader all in one) designed to work with MIFARE token technologies.

Jump to:
BOS
+44 (0)1273 811011 Website

Application

Suitable for use with Net2 and Switch2 range systems.

Description

A stainless steel keypad reader designed to work with MIFARE token technologies. It's slimline design and metallic keypad buttons offers a durable keypad solution with the added advantage of RFID proximity reading.


Features and benefits:

  • A token is read by holding it within close proximity of the reader. Once a token has been read the control unit looks up the access permissions of that user. The control unit verifies the information and grants or denies access as appropriate.
  • By default, all 3 LED's are lit. If access is granted, the green LED flashes. If access is denied, the red LED flashes. An audible tone is emitted in both cases.

General information

Color

Silver

Finish

Satin

Chrome

Material

Metal

Steel

Guidance for specification option:

Stainless steel.

Shape

Rectangle

Length

78 mm

100 mm

143 mm

Width

38 mm

50 mm

75 mm

Height

13 mm

15 mm

16 mm

Warranty description

Five year

Uniclass

Ss_75_40_02_11 Card access control systemsPrimary

CAWS

W90/130 Electronic access control system

W90/363 Access control units

W90/362 Keypads

Product range

Net2
Net2 Readers

Specification data - Card access control systems

System supplier

Paxton Access Limited.

System type

Networked stand-alone door controller.

Equipment interconnectivity

Wired access control unit linking to readers and ancillary components; wireless data connection between access control units and proximity devices.

Control software

Switch2.

Net2.

Method of authorization

Active proximity devices,
PIN codes.

Readers

Proximity card readers.

Controls

Access control units.

Cable length

5 m.

Current

180 mA.

Dimensions

13 x 38 x 78 mm

Guidance for specification option:

H x W x L

Extension

≤25 m (Belden 9538).

≤100 m (Belden 9540).

Moisture resistance

IPX7.

Operating temperature

35-66°C.

Operating voltage

10-14 V d.c..

Sustainability data

Country of product manufacture

United Kingdom

Material

Metal

Steel

Guidance for specification option:

Stainless steel.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

Third party certifications

UL Listed

UL Listed

UL 294 - Access Control System Units CSA C22.2 No. 205 - Signal Equipment - Net2 ACU and readers

Literature

Net2 Proximity Metal Keypad KP75 - MIFARE

Net2 Proximity Metal Keypad KP75 - MIFARE
