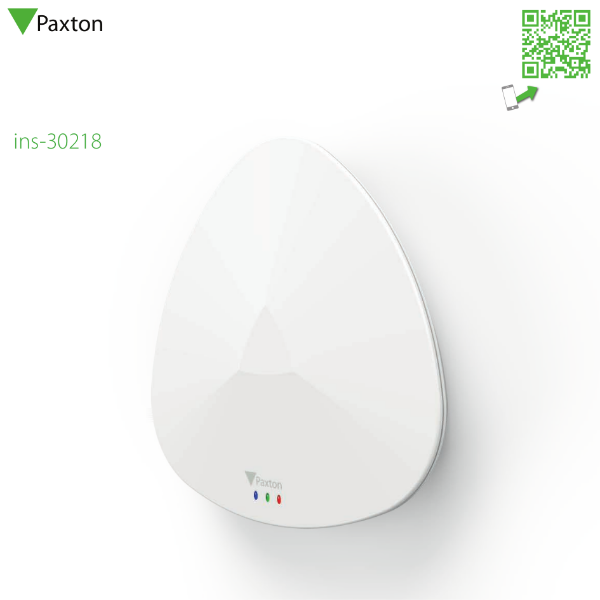

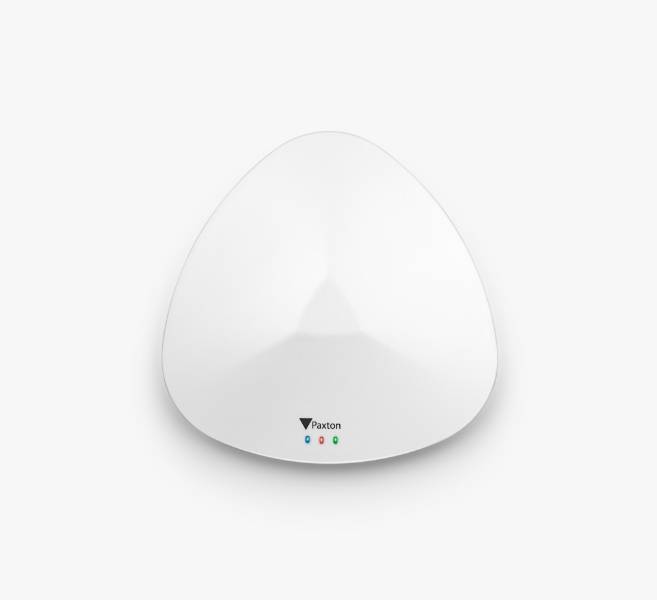

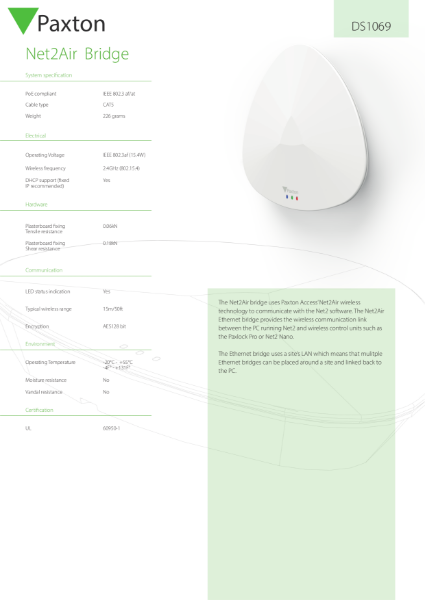

Net2 Air Bridge

Name: Net2 Air Bridge
Brand: Paxton Access Ltd
SKU: 86kNq65an35SwpDdQX6WZP

Verified by manufacturer 12 days ago

Paxton Access Ltd

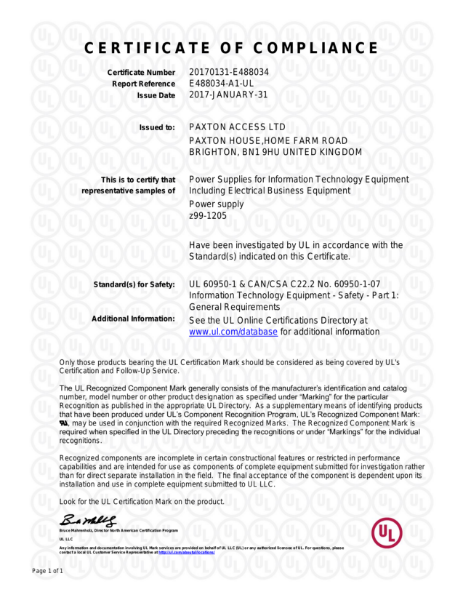

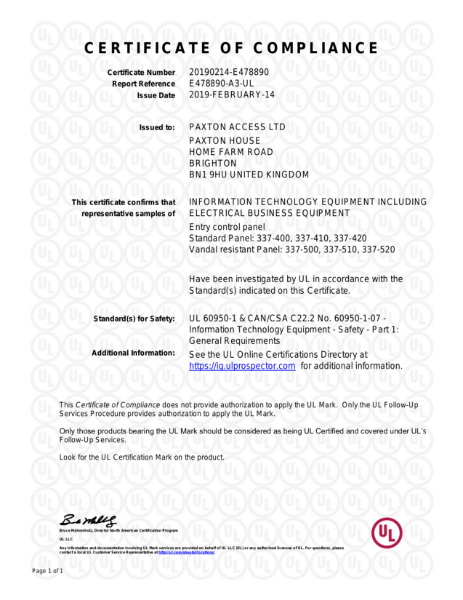

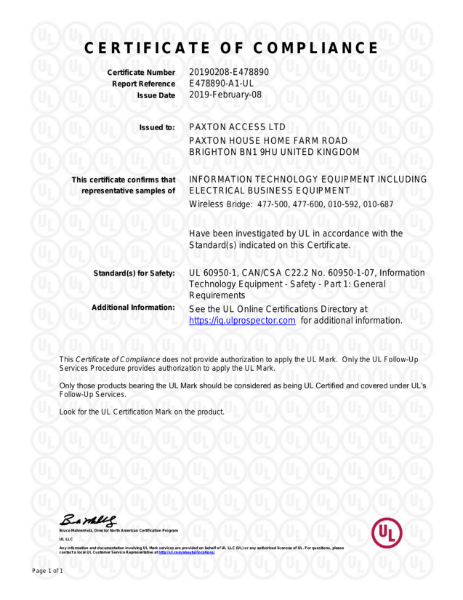

Product certifications:

UL Listed
Certificate type
UL Listed
Certificate type
UL Listed
Certificate type

The Net2 Air Ethernet bridge provides the wireless communication link between the PC running Net2 software and wireless control units such as the Paxlock or Net2 nano.

Jump to:

BOS

+44 (0)1273 811011 Website

Application

Suitable for use with Net2.

Description

The Net2 Air Ethernet bridge provides the wireless communication link between the PC running Net2 software and wireless control units such as the Paxlock or Net2 nano.

Features and benefits:

The Net2Air range of bridges uses Paxton Access' Net2Air wireless technology to communicate with the Net2 software.
The Ethernet bridge uses a site's LAN which means that multiple Ethernet bridges can be placed around a site and linked back to the PC.
Handsfree compatible.
Input for contact button.
Input for exit button.
Alarm output.
15 m wireless range.
LED status indication.
Encryption - AES128 bit.
Shear resistance of 0.8 kN.
Tensile resistance of 0.06 kN.

General information

Color	White
Material	Plastic
Shape	Triangle
Length	162.7 mm
Width	164.2 mm
Height	33.6 mm
Warranty description	Five year

Uniclass	Ss_75_40_02_11 Card access control systemsPrimary
CAWS	W90/363 Access control units W90/130 Electronic access control system

SKU Code	477-600

Product range	Net2

Specification data - Card access control systems

Classification data
System supplier	Paxton Access Limited.
System type	Networked.
Equipment interconnectivity	Wireless.
Control software	Net2.
Cable type	CAT5.
Rewireable installation	Required.
Weight	226 g.
Operating voltage	15.4 W.
Frequency	2.4 GHz.
Operating temperature	-20 to 55°C.
