Natural Stone Cladding System
Verified by manufacturer 25 days ago
CWCT Certificate
Certificate type
Natural Stone Cladding System
Application
Suitable for both stack bond and stretcher bond facades, horizontal and vertical.
Description
Rainscreen cladding system consisting of natural stone rainscreen panels sourced from key partnering quarries throughout Europe.
Features and benefits:
- The panels range from 30–50 mm thick depending on the properties of the stone selected and project specific requirements.
- Natural stone cladding combines the combination of classic tradition with contemporary performance and buildability. It enables the use of a natural stone in a contemporary and convenient format that is compatible with lighter building structures.
- A full portfolio of classic natural stone facades are available including limestone, sandstone and granite.
- The stone cladding system is designed and manufactured in the UK and includes mechanical kerf fix and secret undercut fix fixing methods.
General information
Color | Other Beige Black Blue Bronze |
Material | Stone |
Shape | Other Triangle Square Rectangle Trapezoid |
Length | 1200 mm 1000 mm 900 mm 800 mm 700 mm |
Width | 200 mm 300 mm 400 mm 500 mm 600 mm |
Height | 30 mm 40 mm 50 mm 60 mm 70 mm Manufacturer guidanceThickness. |
Warranty description | 11 year |
Uniclass | |
CAWS | H92/120 Rainscreen cladding |
Specification data - Drained and back-ventilated rainscreen cladding systems
Colour | Fatima Crème fine, limestone. Fatima Crème fine, medium limestone. Fatima Crème large, limestone. Heron Moor beige, sandstone. Jura Beige limestone. |
Finish | Honed. Guidance for specification option: Jura Beige limestone and Jura Grey limestone are c220 honed. Polished. Guidance for specification option: Granites only. Sandblasted. Guidance for specification option: Limestone only. Shotblasted. Guidance for specification option: Granites only. Flamed. Guidance for specification option: Granites only. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe Manufacturer guidanceAlterEgo Natural Stone Cladding systems encompasses a broad range of stone types, which are generally sourced from Portugal, Spain or Poland. For origin of specific stone type, please contact AlterEgo Facades sales personnel. |
Country of product manufacture | Europe |
Recyclability | Recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Third party certifications
CWCT Certificate
CWCT Weather & Impact Test
CWCT Certificate
CWCT Test Certificate
Literature
TN76 – Impact performance of building envelopes: method for impact testing of cladding panels
Stone Cladding panels - A1 Fire Rating
Stone Cladding Non Migratory Sealant Colours
Stone Cladding - Moleanos Crème Limestone & Giallo Veneziano Granite at 8 Salisbury Square, London - (Unitised)
Stone Cladding - Moleanos Crème Limestone at The Bridge, Farnham
Stone Cladding - Moleanos Crème Limestone at 30 Lombard St, London - (Unitised)
Stone Cladding - Moca Crème Limestone at Vista, Nine Elms, Battersea
Stone Cladding - Moca Crème Limestone at Baxter Gate, Loughborough
Stone Cladding: Jura Beige Sandblasted Limestone at St Lukes View, Liverpool
Stone Cladding - Jura Beige Limestone at Lockmeadow, Maidstone
Stone Cladding - Jura Beige Limestone at Greenfaulds High School, Cumbernauld
Stone Cladding - Jura Beige Limestone at Elgin Place, Bath St, Glasgow
Stone Cladding - Eternal Beige Limestone at Kingston Plaza, London
Stone Cladding: Colour Range for natural Stone Rainscreen cladding
Stone Cladding - Buff Sandstone at The Engine Yard, Edinburgh

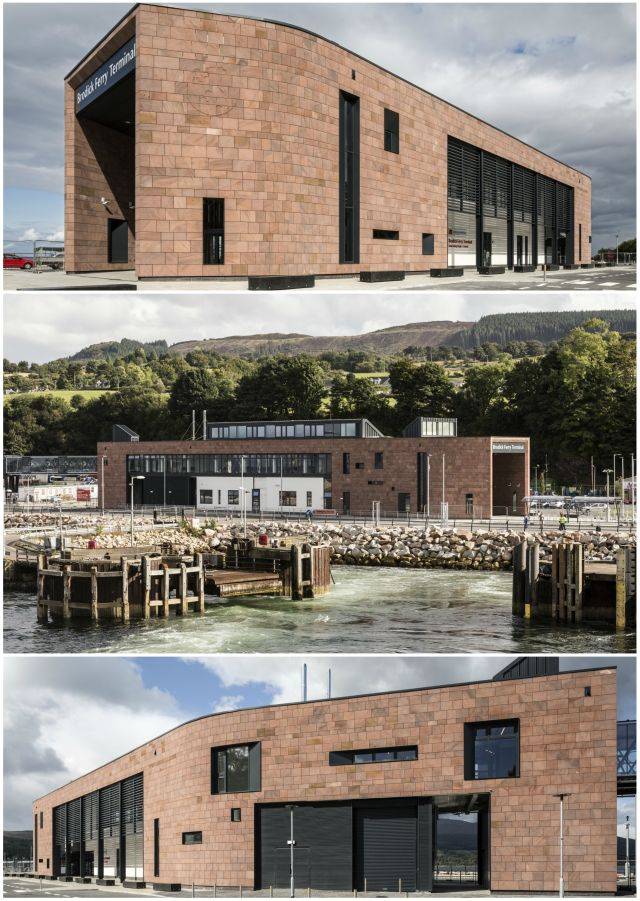

Stone Cladding - Brodick Ferry Terminal, Isle of Arran - Sandstone
