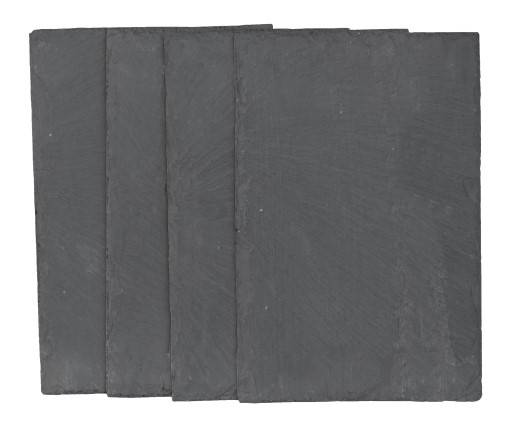

Natural Slate CUPA HEAVY 3 - Blue Black

Verified by manufacturer 1 month ago

Cupa Pizarras

CUPA HEAVY 3 - Blue-black natural slate with non-rusting metallic particles and thin laminations. Split to an average thickness of 7.5 mm.

Jump to:
BOS
+44 (0) 20 3318 4455 Website

Application

For roof pitches.

Description

Natural blue-black slate with a slightly gritty texture, and in some samples, well-defined parallel lines are clearly visible on the cleavage surface.


A feature of this slate is the presence of metallic cubes of iron sulphide, known as pyrite, approximately 2 mm in size. Sometimes these cubes are randomly distributed throughout the slate, while in other cases they are concentrated in discrete bedding layers. Heavy 3 is the suitable choice for repair and replacement of traditional roofing in Scotland.


Features and benefits:

  • Impermeable to water.
  • Weather and UV-resistant.
  • Chemical-resistant - not affected by chemicals or pollutants (acid or alkali).
  • Not damaged by fungi, moss, insects, animals or birds.
  • Strong, while weighing substantially less than man-made roofing tiles.
  • Non-combustible.
  • Metallic cubes on the surface.

General information

Color

Black

Blue

Finish

Textured

Material

Slate

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

7.5 mm

Warranty description

50 year

Guidance for specification option:

Warranty available of up to 100 years on natural slate products.

Uniclass

Pr_25_93_72_56 Natural slatesPrimary

CAWS

H62/105 Roof slating

H62/110 Roof slating with counterbattens

H62/3 Roof slating

H62/5 Roof slating with counterbattens

Product range

Natural Roofing Slate

Specification data - Natural slates

Slate size

-

Length (minimum)

300 mm.

350 mm.

400 mm.

500 mm.

Width (minimum)

200 mm.

Guidance for specification option:

Not available with 500 mm.

250 mm.

Guidance for specification option:

For 400 mm and 500 mm only.

Standards

-

Product specification

To BS EN 12326.

Properties

-

Type

Normal.

Dimensional tolerances

Complies.

Nominal thickness and individual thickness variation

Complies.

Characteristic modulus of rupture (Transverse)

≥ 45 MPa.

Characteristic modulus of rupture (Longitudinal)

≥ 50 MPa.

Water absorption

0.22–0.28%.

Thermal cycle test

Code T1.

Carbonate content

0.4–0.46%.

Sulfur dioxide exposure test

Code S1.

Non-carbonate carbon content (maximum)

0.39%.

Standards methods of test

To BS EN 12326.

Characteristic modulus of rupture (transverse)

62–64.6 MPa

Characteristic modulus of rupture (longitudinal)

62–64.6 MPa.

Thickness

3.5 mm.

7–8 mm.

Specific weight

2.74 gm/cm³.

Sustainability data

Contains Red List materials

No

Country of material origin

Spain

Country of product manufacture

Spain

Material

Slate

Recyclability

Slates can be reclaimed and reused

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

5

Revit
-

5
