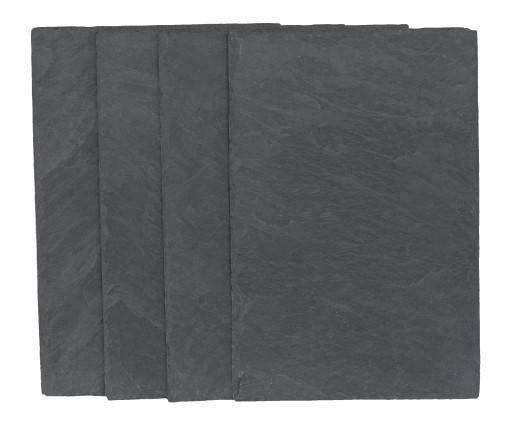

Natural slate - CUPA 5 - Dark Grey
Verified by manufacturer 2 months ago
CUPA 5 - Dark grey natural slate with a riven surface. Split to an average thickness of 5, 6.5 or 7.5 mm.
Application
For roof pitches.
Description
Non-carbonated natural slate formed by tectonic compression. It is a dark grey with a riven surface.
General information
Color | Grey |
Finish | Textured Manufacturer guidance
|
Material | Slate |
Shape | Rhombus Square Other |
Length | 300 mm 400 mm 500 mm 600 mm |
Width | 200 mm 250 mm 300 mm |
Warranty description | 100 year Guidance for specification option: Warranty available of up to 100 years on natural slate products. |
Uniclass | |
CAWS | H62/105 Roof slating H62/110 Roof slating with counterbattens H62/3 Roof slating H62/5 Roof slating with counterbattens |
Product range |
Specification data - Natural slates
Slate type | |
Colour | Dark grey. |
Slate size | |
Length (minimum) | 300 mm.400 mm.500 mm.600 mm. |
Width (minimum) | 200 mm.250 mm.300 mm. |
Standards | |
Product specification | To BS EN 12326. |
Properties | |
Type | Normal. |
Characteristic modulus of rupture (Transverse) | ≥ 45 MPa. |
Characteristic modulus of rupture (Longitudinal) | ≥ 45 MPa. |
Water absorption | 0.21% Code W1. |
Freeze-thaw resistance | <0.6%. |
Thermal cycle test | Code T1. |
Sulfur dioxide exposure test | Code S1. |
Non-carbonate carbon content (maximum) | 0.3%. |
Standards methods of test | To BS EN 12326. |
Characteristic modulus of rupture (transverse) | 45.7 MPa. |
Characteristic modulus of rupture (longitudinal) | 43.5 MPa. |
Selection | H. Guidance for specification option: Characterized by its high quality and only admitting slight differences in the flatness and thickness of the piece. NATURAL. Guidance for specification option: Slates that allow greater variations in thickness and flatness. R EXCELLENCE. Guidance for specification option: Slates with high flatness and very regular thickness. |
Thickness | 5 mm. 6.5 mm. 7.5 mm. 9 mm. |
Special shapes | 90º sawn. Bullnose. Fischschuppen. Half moon. Irregular. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Spain |
Country of product manufacture | Spain |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0.12 kg CO₂ eq/unit Self declared |
Recyclability | Slates can be reclaimed and reused |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 5 |
 Revit | - | 5 |
Similar products from Cupa Pizarras
Natural Slate - CUPA 12 - Dark Grey Slate
Natural Slate - CUPA 14 - Grey

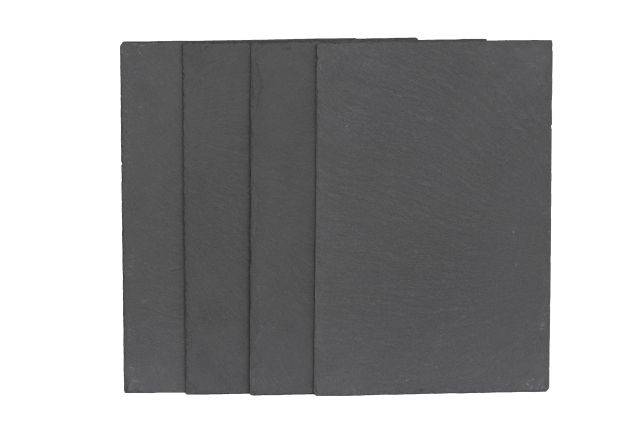

Natural Slate - CUPA 18 - Dark Grey Roofing Slate
Natural Slate - CUPA 2 - Dark Grey
Natural slate - CUPA 4 - Blue/ black

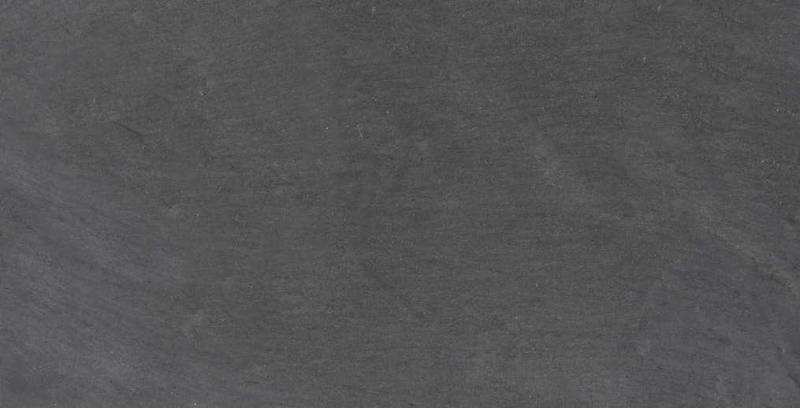

Natural Slate - CUPA 50 - Dark Grey
Natural Slate CUPA HEAVY 3 - Blue Black

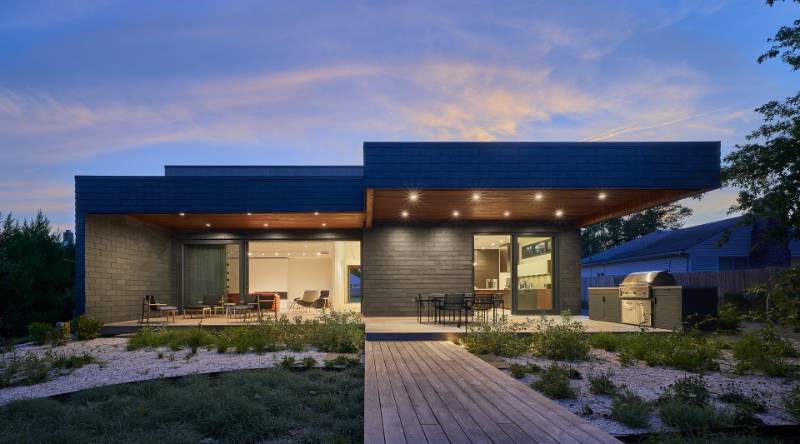

Natural Slate Rainscreen cladding - CUPACLAD® 101 Logic

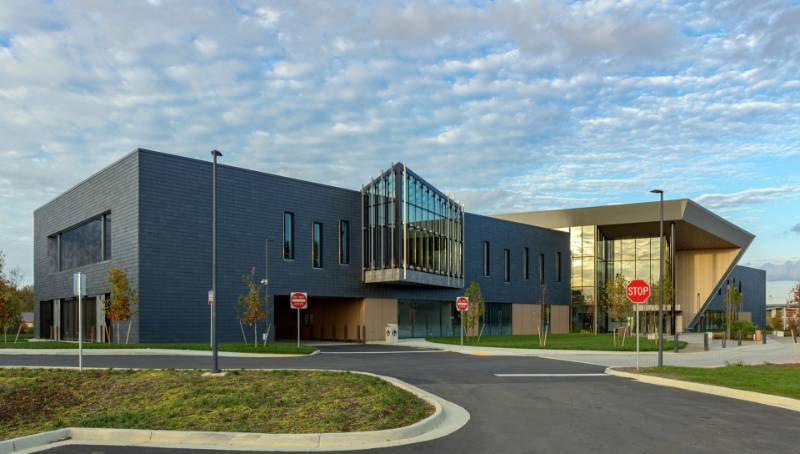

Natural Slate Rainscreen cladding - CUPACLAD® 101 Parallel

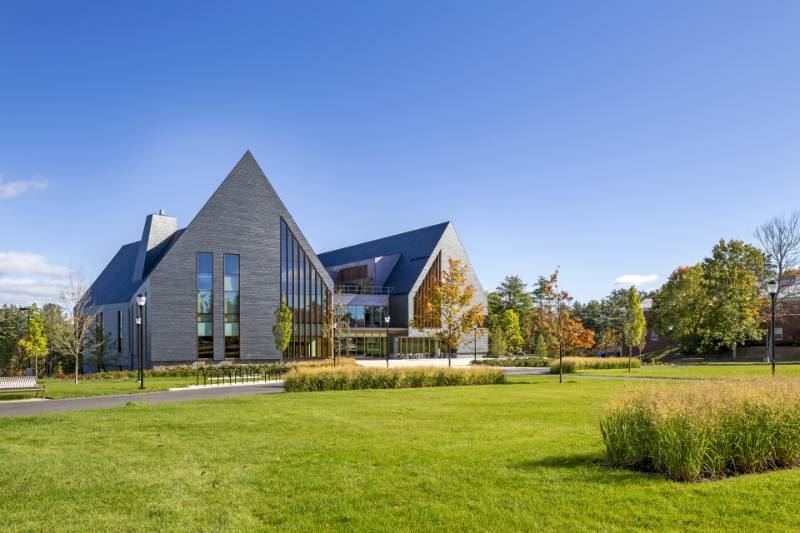

Natural Slate Rainscreen cladding - CUPACLAD® 101 Random
