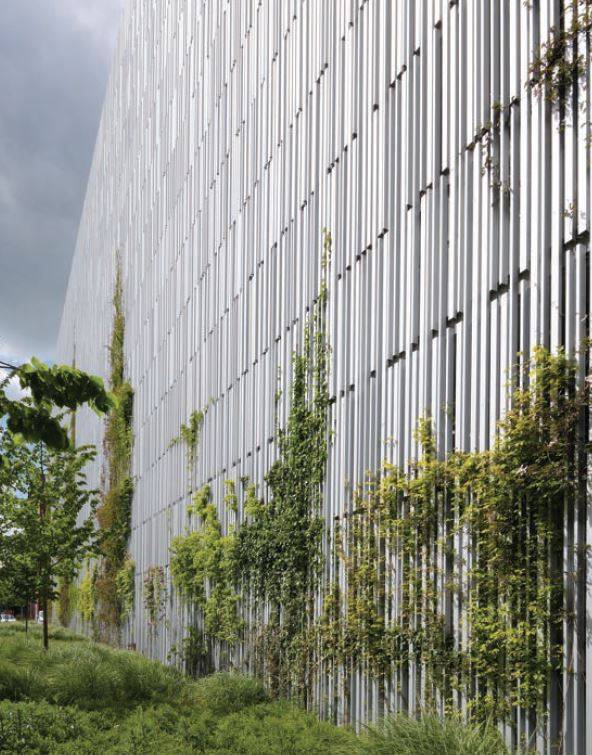

Napsu Click - Facade Cladding
Verified by manufacturer 1 month ago
EPD
Certificate type
Tailor-made click-fix facade cladding solution with aluminium slats.
Application
Facade cladding suitable for housing complexes, universities, hospitals, shops, parking garages and screening.
Can be fitted onto concrete and steel structures, around corners, curves, windows and doorways. Our facades can be installed horizontally, vertically or as a ceiling.
Description
Tailor-made click-fix facade cladding solution, with aluminium lamella slats mounted onto an aluminium structure.
Features and benefits:
- Provides the entire facade solution.
- Tailored to project requirements.
- Sustainable system with Greenline Aluminium which requires no maintenance and has an expected lifespan of more than 70 years.
- Suitable for fire-proof constructions.
- Designed with clean, sharp lines.
- Installed with a single click.
- Lamella are designed with an optional centre-to-centre distance and are mounted horizontally, vertically or as a ceiling.
- No visible screws.
- Built-in thermal movement.
- Quick and easy installation.
- Manufactured from 100% collected and recycled aluminium.
- Available in a wide range of colours and finishes (including RAL and NCS).
- Can be combined with partial solutions, e.g. perforated plates, stretched metal, trapezoidal plates, and profile plates.
System components:
- Mounting profile.
- Lamella.
- Fix-plate.
Installation:
- Mounting: The mounting profile is attached to the load-bearing facade with a maximum distance of 400 mm between attachment points.
- Click: The lamella is pushed into the click groove, and the wide base is pushed into place. When the lamella foot is in the click groove, the lamella is tilted in one complete motion into place with a click.
- Fix: When a lamella has been clicked into place, fix-plates are installed in all cross joints between the mounting rail and lamella. Slats are prepared for thermal movement. The thermal 0 point must be placed equally on all lamella.
General information
Color | Other Guidance for specification option: Can be coloured in all RAL and NCS colours, as well as a wide selection of gloss colours. Beige Black Blue Brown |
Finish | Anodized Powder-coated Gloss Matt Brushed |
Material | Aluminium |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Other |
Uniclass | |
CAWS | H72/130 Aluminium sheet fully supported wall covering H20/150 Sheet cladding (attached to metal support systems) |
Specification data - Aluminium sheet fully supported wall-covering systems
Wall sheathing | Existing wall sheathing. |
Air and vapour control layer | Existing air and vapour control layer. |
Carrier | Aluminium mounting rails.Guidance for specification option: Maximum distance of 400 mm between attachment points. The free span between the lamella fixing to the mounting rail is typically 1400–2000 mm (dependent on the dimension of the lamella and the facades structure). |
Substrate | Existing wall sheathing.Guidance for specification option: Suitable for concrete and steel substrates. |
Aluminium sheets | Aluminium slats.Guidance for specification option: Designed with an optional centre-to-centre distance, consult manufacturer for details. |
Vertical joints | |
Fixings for standing seam joints | Aluminium top hats.Guidance for specification option: Ventilated. |
Fasteners to substrate | Aluminium top hats.Guidance for specification option: Ventilated. |
Cross joints | |
Form | Thermal screwed application. |
Fasteners | Aluminium fix-plates. |
Head detail | |
Form | Standing seam edge terminations. |
Fasteners | Site formed aluminium clips. |
Bottom edge detail | |
Form | Standing seam edge terminations. |
Fasteners | Site formed aluminium clips |
Abutments | |
Form | Cover flashing.Flashing clipped over aluminium sheet, taken 150 mm up face of wall and tucked under dpc. |
Fixing into joints and chases | |
Fasteners | Site formed aluminium clips |
Pointing to joints and chases | Silicone construction joint sealants |
System accessories | Not required.Cover profiles.Guidance for specification option: Available for front and back profiles. Helps to cover fastenings and provide a cleaner finish. |
Design | Manufacturer guidanceConsult manufacturer and insert requirements, including project size. Note that solutions can be incorporated for corner solutions, section divisions, and transitions with the following:
|
Finish | Anodized, colour. Guidance for specification option: It is possible to choose different anodizing colors and design the lamella to have a glossy, matt or brushed look. Anodizing seals and creates a hard, corrosion-resistant, mechanically wear-resistant and long-lasting surface, with excellent weather resistance. The protective surface remains UV-resistant and the metallic look is preserved. Powder-coated, colour. Guidance for specification option: Powder coating allows for a wide selection of colours, patterns and finishes, which helps to create a unique and creative look for the building’s facades. Powder coating creates a strong, even and durable layer that protects against corrosion, wear, weathering and is also UV-resistant. Manufacturer guidanceCan be coloured in all RAL and NCS colours, as well as a wide selection of gloss colours. Consult manufacturer and insert requirements. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Denmark |
Material | Aluminium |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % Guidance for specification option: Greenline Aluminium is produced from 100% collected and recycled aluminium, and uses only 5% of the energy used to produce primary aluminium. |
Third party certifications
Third party certifications
EPD
Aluminium Profile
Literature
Napsu Click Brochure
Case studies
BELLA 3 ‘MØRCH’S HUSET’
