MySmartBox Modular Electronic Parcel Lockers

Verified by manufacturer 2 months ago

DAD - DECAYEUX

Electronic parcel lockers.

Jump to:
BOS
+44 (0)1233 630406 Website

Application

Suitable for:

  • Installing in private or semi-private buildings, to provide a digital parcel box unit for facilitating collections and deliveries.
  • Use as free standing, recessed or wall mounted. Indoor and outdoor versions available.
  • Easy use.

Description

Electronic parcel lockers, fitted with a digital system for facilitating collections and deliveries.


Features and benefits:

  • Achieves 60 minutes' fire-rated integrity on the Electronic parcel lockers.
  • Secure parcel box.
  • Ecological and future-proof.
  • Universal application.
  • Flexible and efficient delivery (end users experience no missed deliveries).
  • Can mix parcel boxes with private letterboxes.
  • Collection password sent by SMS or push notification via mobile phone Walter App.
  • The device safely records all the events to the internal SD card for added security.
  • Tri-band GSM – Class 4 – 2 W; SIM card and integrated antenna provided.
  • CE, CEM and RoHS compliance.
  • Requires a power socket for connection ('plug and play').
  • Units can be combined with Streetbox mailboxes, which can be manufactured from laminated timber or powder-coated electro-galvanized steel.
  • Also available as a bespoke unit (specified separately).


Control unit:

  • Courier identification.
  • Recipient selection.
  • Locker size selection.
  • SMS notification or push notification.


Screen:

  • 4.3’’ (109 mm) backlit capacitive touchscreen with 3 mm protection glass.
  • Resolution 480 x 272 pixels.
  • Luminosity: 300 cd/m².
  • Idle time sleep mode.


Core system:

  • 32-bit processor.
  • 2 GB micro SD card.
  • USB interface.
  • One to six boxes as default.
  • Extension cards for 14 additional boxes available.

General information

Color

Silver

Other

Manufacturer guidance

As per manufacturer an includes:

  • Powder-coated enamel, RAL.
  • Powder-coated, RAL - dual colour.
  • Custom print (doors).

Finish

Powder-coated

Manufacturer guidance

As per manufacturer and includes:

  • Powder-coated.
  • Timber.
  • Stainless steel.
  • Rimex.

Material

Aluminium

Stainless steel

Steel

Manufacturer guidance

As per manufacturer and includes eletro-galvanized steel and aluminium.

Shape

Rectangle

Warranty description

Ten year

Uniclass

Pr_40_30_87_48 LockersPrimary

CAWS

N10/220 Lockers

Specification data - Lockers

Dimensions

Guidance for specification option:

Consult literature for options and insert requirements.

Box internal dimension:

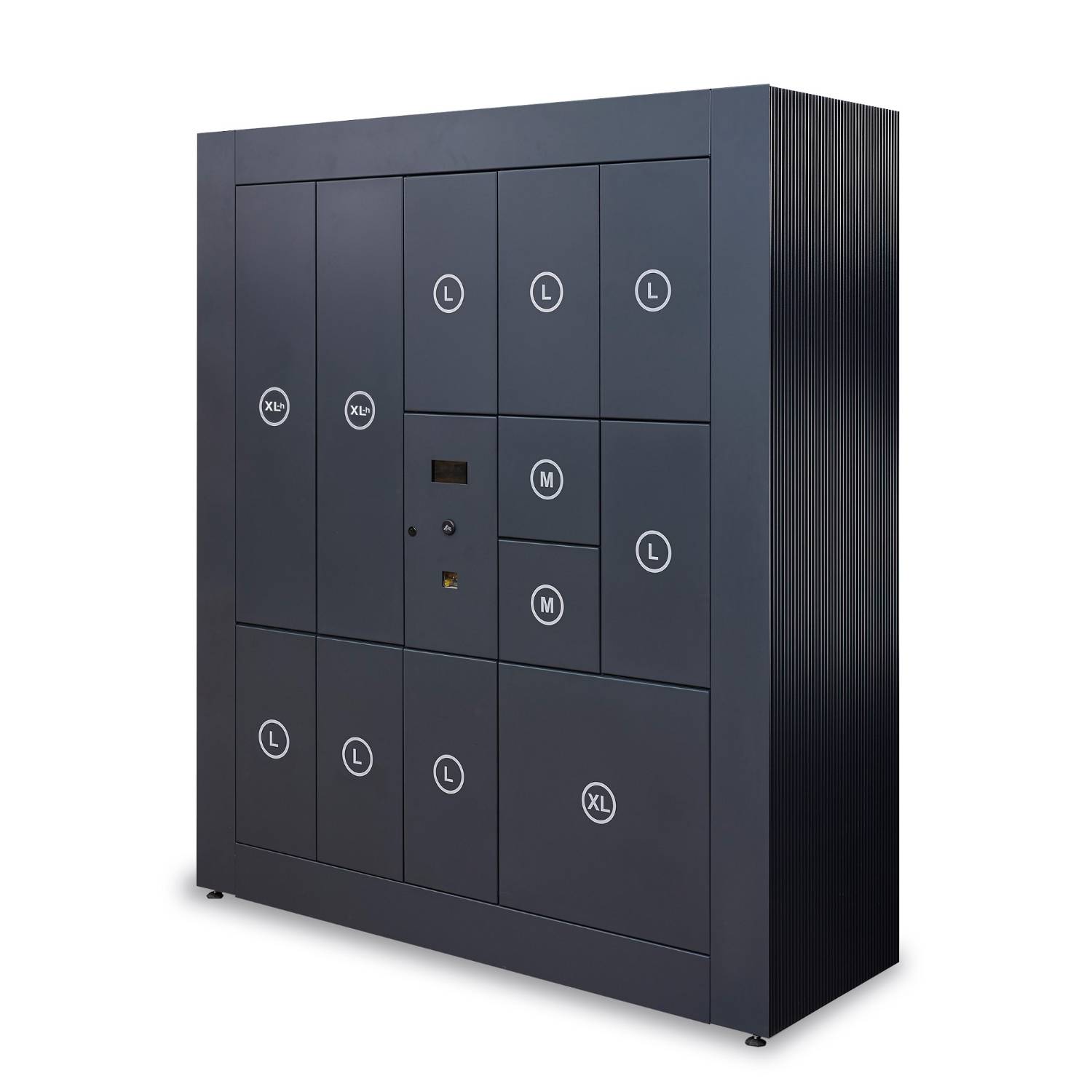

Varies, depending upon indoor or outdoor version and size. The unit is made to requirements from six different locker sizes (S, M, L, XL, XL-h, XXL); consult literature for details.

Material

Electro-galvanized steel and aluminium.

Guidance for specification option:

Doors and body manufactured from electro-galvanized steel.

Aluminium structure with adjustable stabilizers.

External casing.

Mounting brackets.


Thickness:

Body: 0.6 mm (internal models) or 2 mm (external models).

Doors: 1.2 mm (internal models) or 2 mm (external models).

Finish

Powder-coated.

Timber.

Stainless steel.

Rimex.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Colour

Powder-coated enamel, RAL.

Guidance for specification option:

20 colours available as standard: insert requirements. Consult manufacturer for details of non-standard RAL codes.

Powder-coated, RAL - dual colour.

Guidance for specification option:

20 colours available as standard: insert requirements. Consult manufacturer for details of non-standard RAL codes.

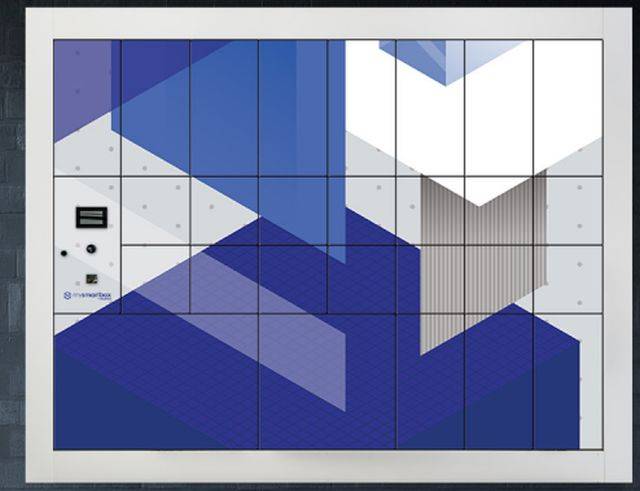

Custom print (doors).

Guidance for specification option:

Consult manufacture for options and insert requirements.

Power

Primary: 120-240 V a.c. (60 W). Secondary: 12 V d.c.

Locking

Lock(s) with electrical rotary latch R4-EM (Southco).

Guidance for specification option:

Opening by automatic ejection.

Fixing

Freestanding.

Recessed.

Wall-mounted.

Accessories

None.

Aluminium surround.

Backup battery.

Four castor wheels.

Mailboxes.

Manufacturer guidance

SMS subscription and licence fee options available; consult manufacturer for details.

Sustainability data

Country of material origin

France

Country of product manufacture

France

Recyclability

99%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

99 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit

Revit 2017

1

Literature

MySmartBox

MySmartBox

Case studies

Bollo Lane London - MySmarBox - Electronic Parcel Lockers

Bollo Lane London - MySmarBox - Electronic Parcel Lockers

Fire-rated mailboxes and MySmartBox

Fire-rated mailboxes and MySmartBox

Fire Rated MySmartBox and Mailboxes

Fire Rated MySmartBox and Mailboxes

Fire-rated MySmartBox and mailboxes unit - Bronze finish

Fire-rated MySmartBox and mailboxes unit - Bronze finish

Fordham House in Statford-Upon-Avon

Fordham House in Statford-Upon-Avon

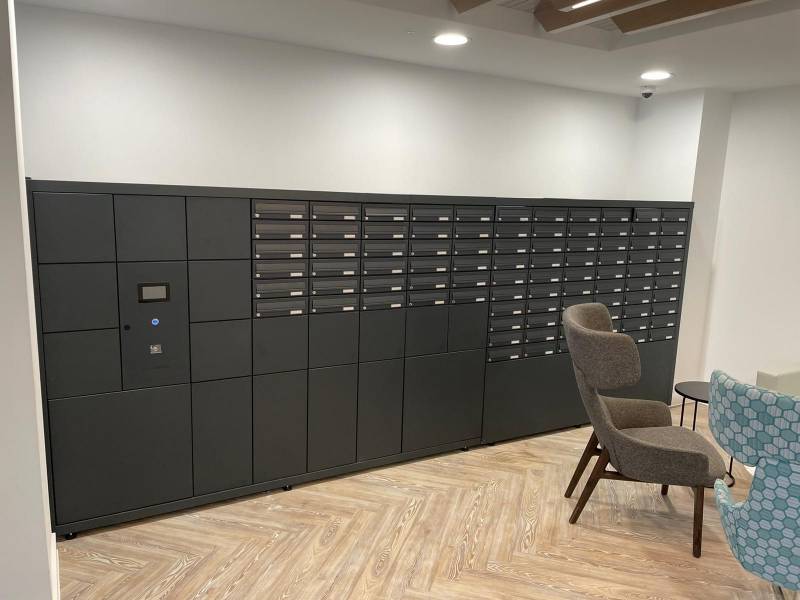

Insigna - MySmartBox - Electronic Parcel Lockers

Insigna - MySmartBox - Electronic Parcel Lockers

Pavilion - Edinburgh - Mysmartbox - Electronic Parcel Lockers

Pavilion - Edinburgh - Mysmartbox - Electronic Parcel Lockers

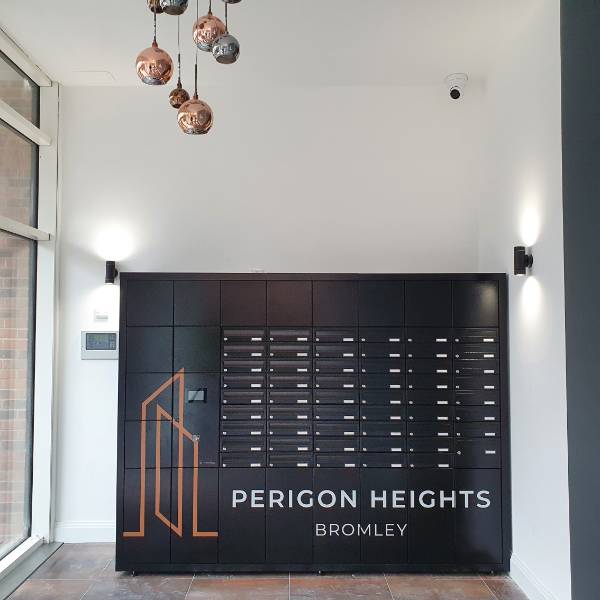

Perigon Heights - MySmartBox -  Electronic Parcel Lockers
