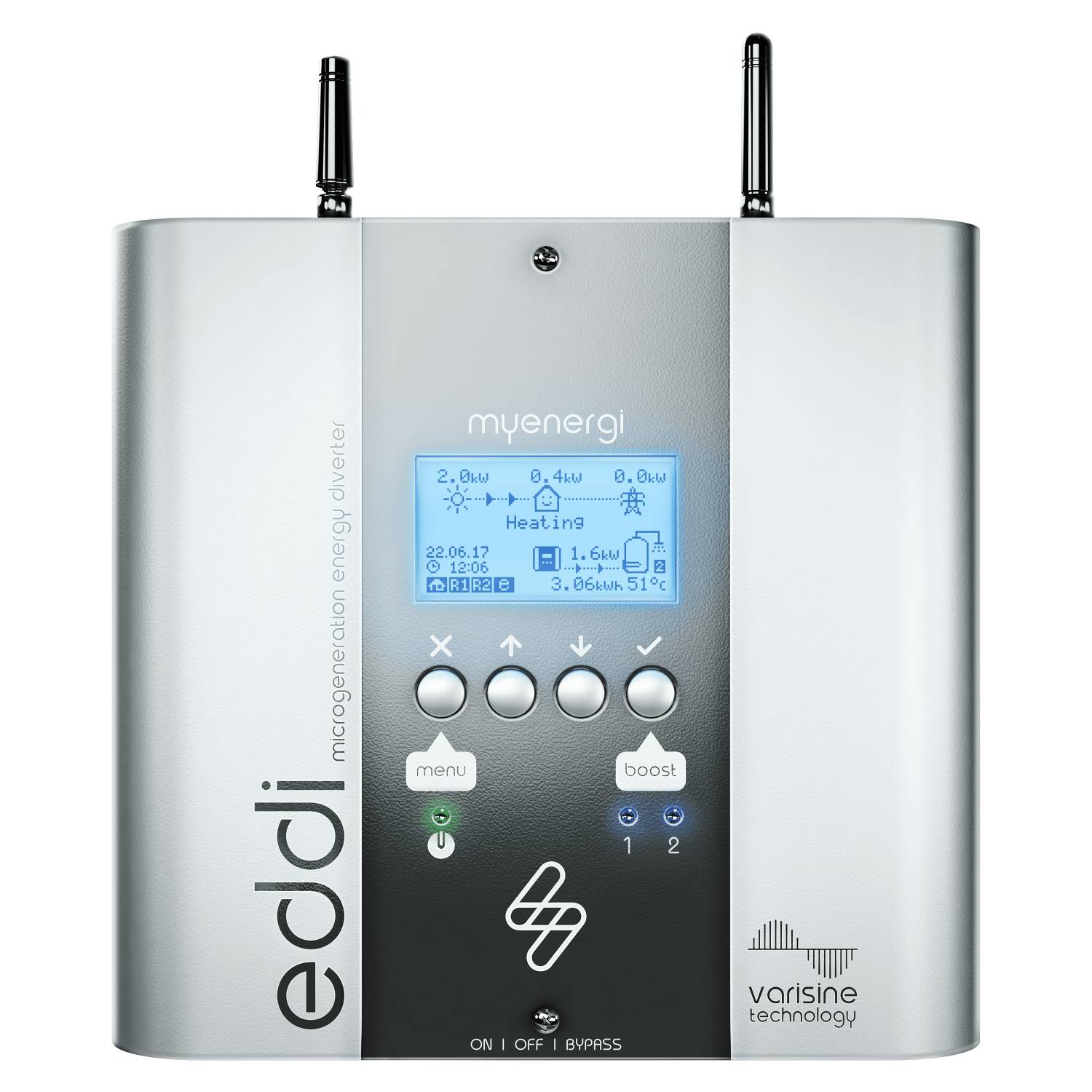

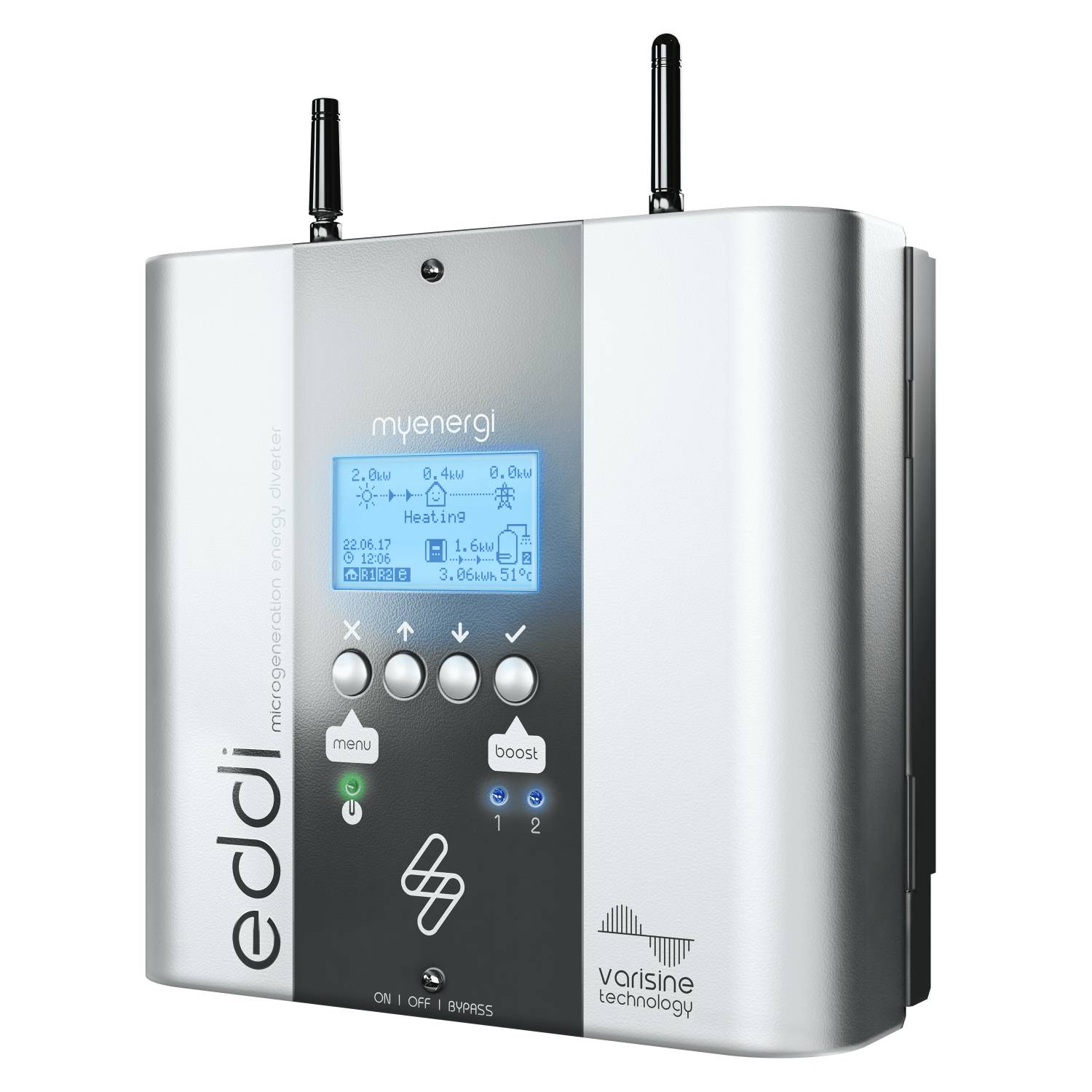

myenergi - eddi - Solar Energy Diverter
Verified by manufacturer 4 months ago
Microgeneration energy diverter.
Application
Use your power. Your way. eddi is designed to help you maximise the consumption of your self-generated solar / wind power. A solar photovoltaic (PV) system without an eddi is a like a car without a steering wheel or driver. Without an eddi, you have no control over where you want your self-generated energy to go, or how you want to use it.
Description
eddi is an eco-smart energy management system. It diverts surplus power from solar PV or wind generation to a designated heating appliance such as an immersion heater, under-floor heating and even Air-Source Heat Pumps. This excess energy will go directly to the appliance (or two sequentially). eddi allows you to stop exporting surplus energy back to the grid and saves you money on your energy bill. Specifying can also help towards improved SAP scores for properties, lowering DPER/DER.
Technical characteristics:
- Cooling: Rear-mounted passive-cooled heatsink.
- PWM resolution: 0.1%.
- Measurement accuracy: ±1%.
- Power conversion efficiency: 97.5% (typical).
- Generator size supported: No limit (subject to 100 A per-phase grid supply).
- Economy tariff sense input: 230 V a.c. sensing (2.5 kV isolated).
Features and benefits:
- 3.68 kW/ 16 A maximum heater load.
- Supports two heaters (sequentially).
- Expansion module option - two extra outputs with temperature control.
- Wall mounting bracket for ease of installation.
- Integral bypass switch.
- Overload and short-circuit protection.
- Graphical back-lit LCD screen for ease of use.
- Ethernet port and built-in WiFi for connecting to the internet.
- Fan-less cooling.
- Complies with CE and UKCA requirements.
- Built-in programmable boost timers.
- Works alongside battery storage systems.
- VariSine™ PWM technology.
- Energy monitoring on the go via the myenergi app.
- Works with heat pumps when used with an optional Relay and Sensor Board.
General information
Color | White Grey |
Finish | Painted |
Material | Zintec steel |
Shape | Rectangle |
Length | 220 mm |
Width | 87 mm |
Height | 205 mm |
Warranty description | Three year |
Uniclass | |
CAWS | V90/312 Photovoltaic system V90/312 Photovoltaic system |
Specification data - Digital metering equipment
Standards | LVD 2014/35/EU, EMC 2014/30/EU, EN 60335-1:2012, EN 55014-1:2006, EN 55014-2:1997+A1:2001+A2:2008, EN 61000-3-2:2006+A1:2009+A2:2009, EN 61000-3-3:2008. |
Display | Graphical LCD with LED backlight.Guidance for specification option: Shows heating status and savings data. |
Rated voltage | 230 V AC.Guidance for specification option: ±10%. |
Phase arrangement | Single phase. |
Current measuring range | 16 A. |
Rated frequency | 50 Hz. |
Mounting | Wall mounting bracket. |
Ingress protection (minimum) | IP20. |
Outputs | Two (sequential operation with selectable priority). |
Control | VariSineTM pure sine wave (Pulse Width Modulation) power control. |
Switch | Integral On/ Off/ Bypass Switch. Manufacturer guidanceBypass switch. |
LED | LED indication: Supply On. Heater 1 and Heater 2 active. |
InputPower | 3.68 kW. |
Standby power | 3 W typical. Manufacturer guidanceStandby power consumption. |
Heater | 100 W–3.68 kW. Manufacturer guidanceHeater load size. |
Interfaces | 868/ 915 MHz (proprietary protocol) for wireless sensor and remote monitoring options. |
Sensor | 100 A maximum primary current, 16 mm maximum cable diameter. Manufacturer guidanceGrid current sensor. |
Cable entry | Bottom entry. |
Weight | 4.3 kg (excluding wall bracket). |
Operating temperature | -20°C to +40°C. |
Accessories | None. Harvi - Wireless energy harvesting sensor. Guidance for specification option: Enables myenergi products to be installed without using a hardwired current transformer. The harvi prevents the need to lift up floors and disrupt home decor. It harvests its own power from the CT clamps, removing the need for batteries or an external power supply. Specifications:
Relay and sensor board. Guidance for specification option: Enables eddi to work with heat pumps.
|
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Zintec steel |
Manufacturing plant location |
