MP574 Foil Faced Stone Mineral Wool Slab

Verified by manufacturer 8 days ago

Mayplas

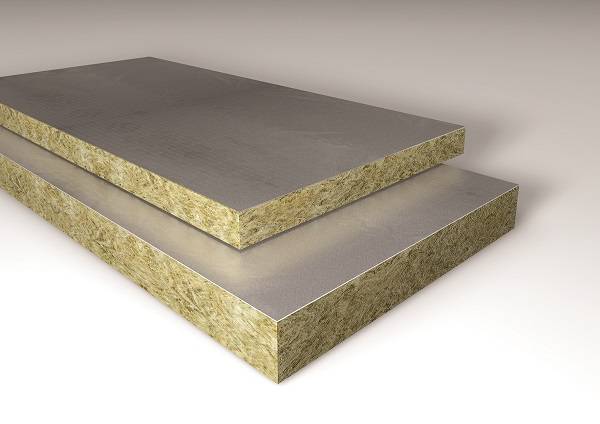

Foil faced stone mineral wool slab.

Jump to:
+44 (0)161 447 8320 Website

Application

Designed for use in thermal and acoustic applications where a high efficiency vapour barrier is required.

Description

Foil Faced Stone Mineral Wool Slab is designed for use in thermal and acoustic applications where a high efficiency vapour barrier is required.

Manufactured from a stone mineral wool layer with a factory-bonded foil facing. Intended for use within a variety of applications to provide a thermal and acoustic insulation solution.

General information

Color

Silver

Finish

Foil

Material

Mineral wool

Aluminium

Foil

Shape

Rectangle

Length

1200 mm

Width

600 mm

Height

25 mm

30 mm

40 mm

50 mm

60 mm

Show more

Manufacturer guidance

Thickness

Uniclass

Pr_25_57_06_56 Mineral wool slab insulationPrimary

CAWS

H31/50 Mineral wool thermal insulation

P10/45 Insulation laid between floor joists

P10/15 Insulation fitted between rafters

P10/190 Insulation fitted between studs

P10/240 Insulation fitted between floor joists

P10/220 Sound insulation within timber framed separating wall

H31/271 Mineral wool thermal insulation

Specification data - Mineral wool slab insulation

Thickness

25 mm.
30 mm.
40 mm.
50 mm.
60 mm.
75 mm.
100 mm.

Facing

Aluminium Foil/Scrim/Polythene laminate vapour barrier.

Edges

Square.

Density

33 kg/m³.
45 kg/m³.
60 kg/m³.
80 kg/m³.
100 kg/m³.

Thermal conductivity (maximum)

0.037 W/mK.

Guidance for specification option:

33 kg/m³.

0.035 W/mK.

Guidance for specification option:

45 kg/m³.

0.034 W/mK.

Guidance for specification option:

>60 kg/m³.

Sound insulation rating

Class A.

Guidance for specification option:

When used in a suspended ceiling, MP573 and MP574 offer Class ‘A’ sound absorption across a range of frequencies (125 Hertz, 250 Hertz, 500 Hertz, 1000 Hertz, 2000 Hertz and 4000 Hertz) and provide a Noise Reduction Coefficient from 0.90 to 1.15, with an NRC of 1 indicating perfect absorption.

The noise absorption coefficient is tested to BS EN ISO 354:2003 in accordance with BS EN ISO 11654:1997 Note:

Only the density range 45kg/m3 -100kg/m3 has been tested.

Size:

600 x 1200 mm.

Sustainability data

Material

Mineral wool
Aluminium
Foil

Literature

MP573 MP574 - FACED STONE MINERAL WOOL SLAB

MP573 MP574 - FACED STONE MINERAL WOOL SLAB
